Product Specifications

Prod Model:	C1
Markets:	North America,Eastern Europe
Winding Form:	Single Layer & Tightly Wound Type
Usage:	Measurement
Installation:	Extension Type, Extension Type~@
Insulating Medium:	Epoxy Resin
Operation Condition:	Outdoor
Magnetic Circuit Structure:	Combined Type
Voltage Transformation Principle:	Capacitive Type
Phase:	Single
Type:	Current Transformer
Application:	Electronic

Product Description

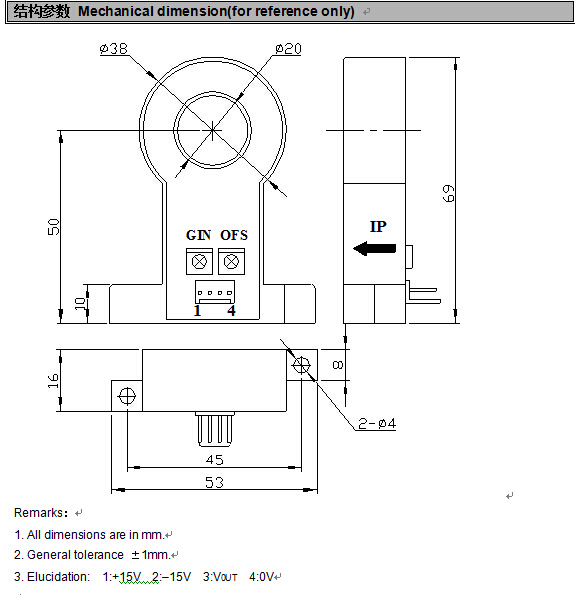

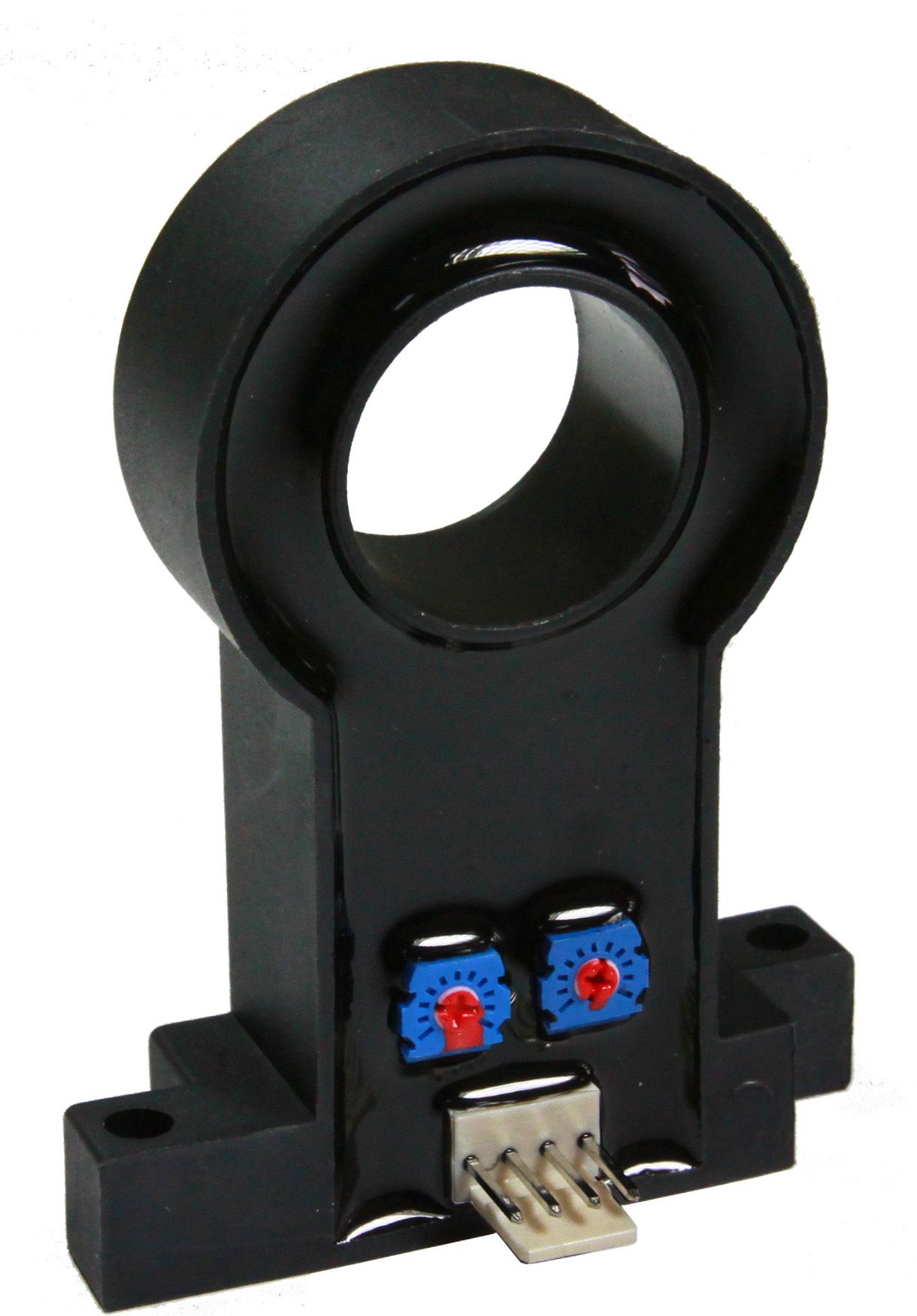

C1X series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Applications:

· Variable speed drives
· Welding machine
· Battery supplied applications
· Uninterruptible Power Supplies (UPS)
· Electrochemical

Directions for use:

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output voltage are available.
Standards:

· UL94-V0.
· EN60947-1: 2004
· IEC60950-1: 2001
· EN50178: 1998
· SJ 20790-2000

Model	Power Supply	rated current	rated output	linearity	Mounting	window dimension	technology
B1	±12V,±15V	6-50A	25/50mA	0.2%	PCB		Closed Loop
B2	±12V,±15V	5-25A	25mA	0.2%	PCB		Closed Loop
B2N	±12V,±15V	0.5-20A	4V	0.2%	PCB		Closed Loop
B2X	±12V,±15V	1-5A	25mA	0.2%	PCB		Closed Loop
B3/B3V	±12V,±15V	50-300A	50/100mA	0.2%	panel	20.5*10	Closed Loop
B4	±12V,±15V	200A-500A	100mA	0.2%	panel	41*12	Closed Loop
B4X	±12V,±15V	200A-500A	100mA	0.2%	panel	51*13	Closed Loop
B6	±12V,±15V	50A/100A	50mA	0.2%	PCB	12.5*7	Closed Loop
B7	±12V,±15V	5-30A	4V	0.2%	PCB		Closed Loop
B8	±12V,±15V	5-30A	4V	0.2%	PCB		Closed Loop
B8X	±12V,±15V	5-30A	4V	0.2%	PCB		Closed Loop
B8XT	+5V	5-30A	2.5±0.625V	0.2%	PCB		Closed Loop
B9	±12V,±15V	125A/200A	125/100mA	0.2%	PCB	10.5*16.5	Closed Loop
B100	+5V	2-50A	2.5±0.625V	0.2%	PCB	6*4	Closed Loop
B102T	+5V	20A/25A	2.5±2V	0.2%	PCB	8.5	Closed Loop
B200	+5V	10-40A	2.5±1V	0.2%	PCB	5.5	Closed Loop
B201	±12V,±15V	10-40A	10--25mA	0.2%	PCB	5.5	Closed Loop
B201X	±12V,±15V	10-50A	10--50mA	0.2%	PCB	6	Closed Loop
B203	±12V,±15V	25-100A	25--50mA	0.2%	PCB	11.5	Closed Loop
B203T	+12V	10-100A	5±2V	0.2%	PCB	11.5	Closed Loop
B203XT	+5V	10-100A	2.5±1V	0.2%	PCB	8.5	Closed Loop
D1	±12V,±15V	50-300A	50--150mA	0.2%	panel	20	Closed Loop
D5	±12V,±15V	50-300A	50--150mA	0.2%	panel	20	Closed Loop
D6	±12V,±15V	300A/500A	100mA	0.2%	panel	35	Closed Loop
D7	±12V,±15V	1000A	200mA	0.2%	panel	45	Closed Loop
D8	±12V,±15V	1000A	200mA	0.2%	panel	40	Closed Loop
D9	±12V,±15V	2000A	400mA	0.2%	panel	72	Closed Loop
N1	±12V,±15V	10-50A	4V	0.2%	panel	6.5	Closed Loop
C1	±12V,±15V	30-500A	4V	1%	panel	20	Open Loop
C1X	±12V,±15V	50-500A	4V	1%	panel	28	Open Loop
C2	±12V,±15V	30-500A	4V	1%	panel	21	Open Loop
C2T	+12V,+15V,+24V	50-500A	5±2V	1%	panel	21	Open Loop
C2N	±12V,±15V	10-50A	1V	1%	panel	8.5	Open Loop
C2NT	+12V	10-50A	2.5±1V	1%	panel	8.5	Open Loop
C3	±12V,±15V	100-2000A	4V	1%	panel	40.5	Open Loop
C5N	±12V,±15V	100-1000A	4V	1%	panel	17.5	Open Loop
C5X	±12V,±15V	100-1000A	4V	1%	panel	32	Open Loop
K3	±12V,±15V	50-600A	4V	1%	panel	20.5*10	Open Loop
K3N	±12V,±15V	30-200A	4V	1%	panel	12*8	Open Loop
K3NT	+5V	30-200A	2.5±1V	1%	panel	12*8	Open Loop
K3T	+12V,+15V,+24V	50-500A	5±2V	1%	panel	20.5*10	Open Loop
K3X	±12V,±15V	50-600A	4V	1%	panel	22*16	Open Loop
K3X3	±12V,±15V	100-500A	A/B/C:4V	1%	panel	ABC:22*13	Open Loop
K4	±12V,±15V	100-1500A	4V	1%	panel	41*12	Open Loop
K4N	±12V,±15V	100-1500A	4V	1%	panel	40.5*20.5	Open Loop
K4X	±12V,±15V	200-2000A	4V	1%	panel	51*13	Open Loop
K5	±12V,±15V	500-2500A	4V	1%	panel	64*16	Open Loop
K5N	±12V,±15V	200-1500A	4V	1%	panel	40.5*30.5	Open Loop
K6	±12V,±15V	500-3000A	4V	1%	panel	85*27	Open Loop
K104	±12V,±15V	1000-5000A	4V	1%	panel	104*36	Open Loop
K140	±12V,±15V	2000-10000A	4V	1%	panel	140*50	Open Loop
K140X	±12V,±15V	2000-10000A	4V	1%	panel	140*36	Open Loop
K210	±12V,±15V	2000-20000A	4V	1%	panel	210*100	Open Loop
D-C1T	+12V,+15V,+24V	DC 30-500A	DC 4V,5V	1%	panel	20	Open Loop
D-C2T	+12V,+15V,+24V	DC 30-500A	DC 4V,5V	1%	panel	20	Open Loop
D-C3T	+12V,+15V,+24V	DC 100-2000A	DC 4V,5V	1%	panel	40	Open Loop
D-K3NT	+12V,+15V,+24V	DC 30-200A	DC 4V,5V	1%	panel	12*8	Open Loop
D-K3T	+12V,+15V,+24V	DC 50-600A	DC 4V,5V	1%	panel	20.5*10	Open Loop
D-K4T	+12V,+15V,+24V	DC 100-1500A	DC 4V,5V	1%	panel	41*12	Open Loop
A-C1NT	+12V,+15V,+24V	AC 5-50A	DC 4-20mA	1%	panel	12	AC&DC transducers
A-C2	±12V,±15V	AC 30-500A	DC 4V,5V	1%	panel	21	AC&DC transducers
A-C2T	+12V,+15V,+24V	AC 30-500A	DC 4-20mA	1%	panel	21	AC&DC transducers
A-C3	±12V,±15V	AC 100-2000A	DC 4V,5V	1%	panel	40.5	AC&DC transducers
A-C3T	+12V,+15V,+24V	AC 100-2000A	DC 4-20mA	1%	panel	40.5	AC&DC transducers
A-C3X	±12V,±15V	AC 100-2000A	DC 4V,5V	1%	panel	50	AC&DC transducers
A-K3	±12V,±15V	AC 30-600A	DC 4V,5V	1%	panel	20.5*10	AC&DC transducers
A-K5T	+12V,+15V,+24V	AC 200-2000A	DC 4-20mA	1%	panel	64*16	AC&DC transducers
A-N1T	+12V,+15V,+24V	AC 10-50A	DC 4-20mA	0.5%	panel	6.5	AC&DC transducers
A-D5T	+12V,+15V,+24V	AC 10-100A	DC 4-20mA	0.5%	panel	20	AC&DC transducers
A-D6T	+12V,+15V,+24V	AC 100-500A	DC 4-20mA	0.5%	panel	35	AC&DC transducers
LD1	±12V,±15V	DC 10-100mA	DC 5V	1.0%	panel	20	Leakage CS
LD2	±12V,±15V	DC 10-100mA	DC 5V	1.0%	panel	40	Leakage CS
VS1	±12V,±15V	10mA	25mA	0.2%	PCB		voltage Transducers
VS2	±12V,±15V	50V-800V	20mA	0.2%	PCB		voltage Transducers
VS3	±12V,±15V	50V-1000V	5V	0.2%			voltage Transducers
A-VS1TP	+12V,+15V,+24V	AC 50V-800V	DC 20mA	0.2%			voltage Transducers
A-VS2	±12V,±15V	AC 50V-800V	DC 20mA	0.2%	PCB		voltage Transducers
