Product Specifications
| Prod Model: |
D6 |
| Phase: |
Single |
| Type: |
Current Transformer |
| Application: |
Electronic, Instrument |
Product Description
Product Description

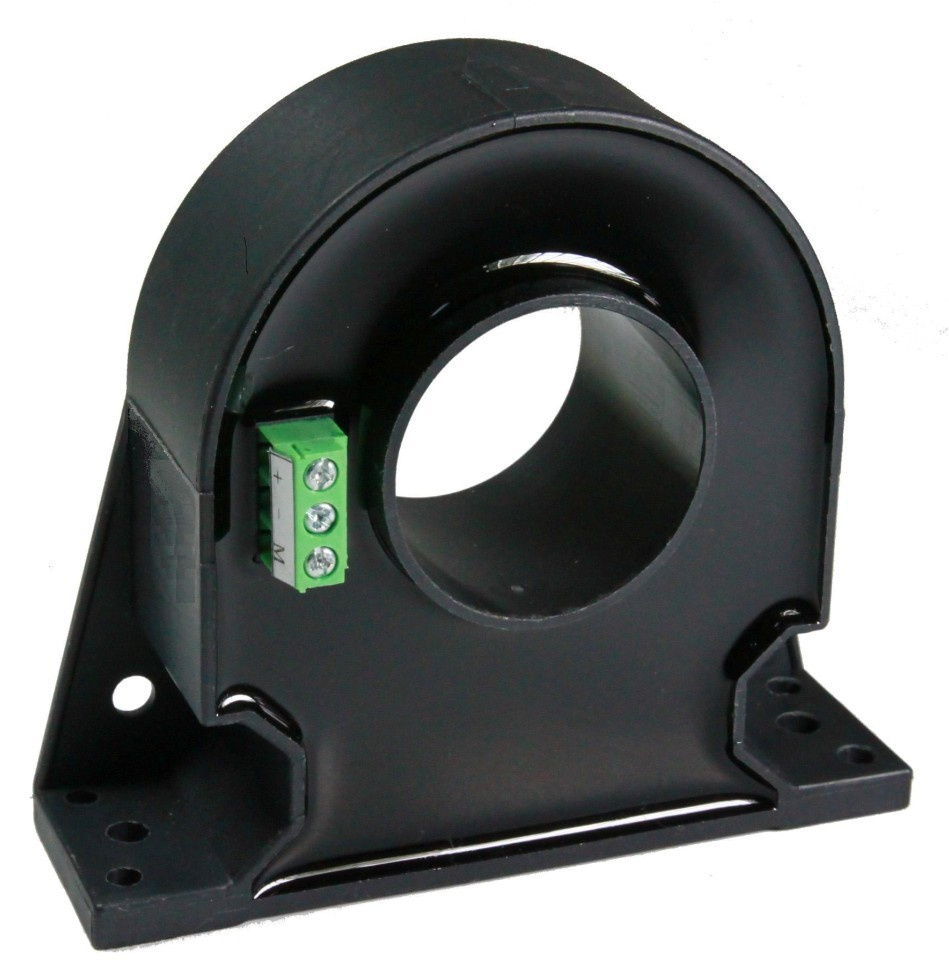

The D6 Series current sensor is a closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit, the size of primary doesn't affect test precision, no matter the location of primary in the hole of current sensor. It can really measure resolution 1000: 1, it uses for precision measurement of DC, AC and pulse current.
Features
Closed loop (compensated) multi-rang current transducer using the Hall effect
Unipolar voltage supply
Compact design for PCB mounting
Incorporated measuing resistance
Extended measuing range
Advantages
Excellent accuracy
Very good linearity
Very low temperature drift
Optimized response time
Wide frequency bandwidth
No insertion losses
High immunity to external interference
Current overload capability
Applications
Variable speed drives
Welding machine
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Electrochemical
Directions for use
1. When the current will be measured goes through a sensor, the current will be measured at the output end. (Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output current are available.
Standards
· UL94-V0.
· EN60947-1: 2004
· IEC60950-1: 2001
· EN50178: 1998
· SJ 20790-2000
|
Type |
D6-300A |
D6-500A |
Unit |
|
Rated current(Ipn) |
± 300 |
± 500 |
A |
|
Measure range(Ip) |
0_± 500 |
0_± 800 |
A |
|
Turns ratio(Np/Ns) |
1: 3000 |
1: 5000 |
T |
Measure resister
with± 15V |
@± 300Amax
0(min)95(max) |
@± 500Amax
0(min)62(max) |
Ω |
@± 500Amax
0(min)40(max) |
@± 800Amax
0(min)11(max) |
Ω |
Measure resister
with± 18V |
@± 300Amax
0(min)122(max) |
@± 500Amax
0(min)88(max) |
Ω |
@± 500Amax
0(min)58(max) |
@± 800Amax
0(min)30(max) |
Ω |
|
Coil resister |
31 |
50 |
Ω |
|
Rated output |
100 |
100 |
mA |
|
Supply voltage |
± 12, ± 15, ± 18 |
V |
|
Power Consumption |
≤ 20+IpX(Np/Ns) |
mA |
|
Offset current |
@Ip=0 ± 0.2 |
mA |
|
Offset drift |
@ -40~+85 ≤ ± 0.5 |
mA |
|
Linearity |
@Ip=0-± Ipn ≤ 0.1 |
%FS |
|
Response time |
@50A/μ S, 10%-90% ≤ 1 |
μ S |
|
Galvanic isolation |
@ 50HZ, AC, 1min 6 |
KV |
|
di/dt |
> 100 |
A/us |
|
Bandwidth |
@ -1dB 0~150 |
KHZ |
