Product Specifications
| Prod Model: |
k4 |
| Phase: |
Single |
Product Description
Product Description
K4 series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.
Features:
Hall effect measuring principle
Galvanic isolation between primary and secondary circuit
Low power consumption
Extended measuring range
Advantages:
Easy installation
Small size and space saving
Only one design for wide current ratings range
High immunity to external interference
Applications:
AC variable speed drives
DC motor drives
Battery supplied applications
Uninterruptable Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications

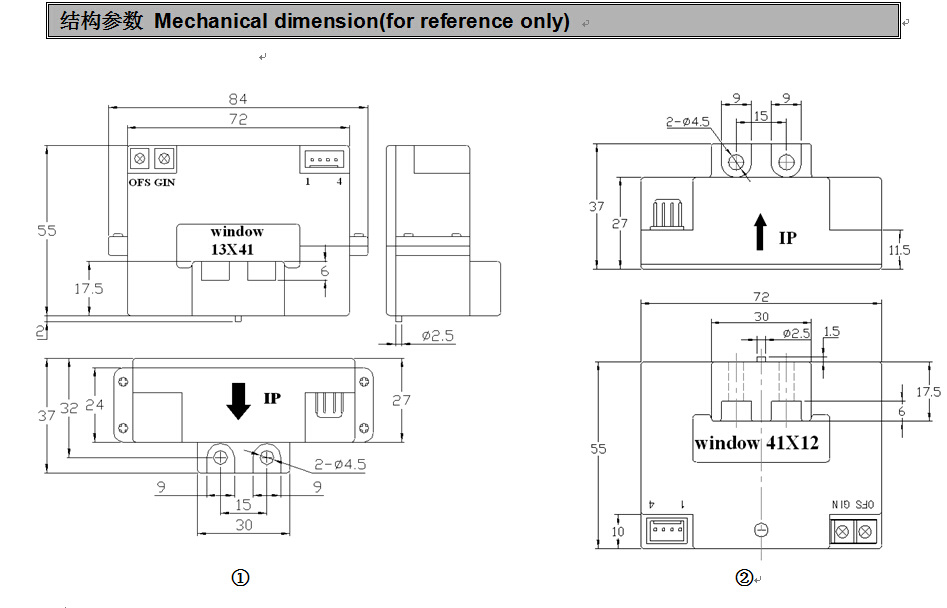

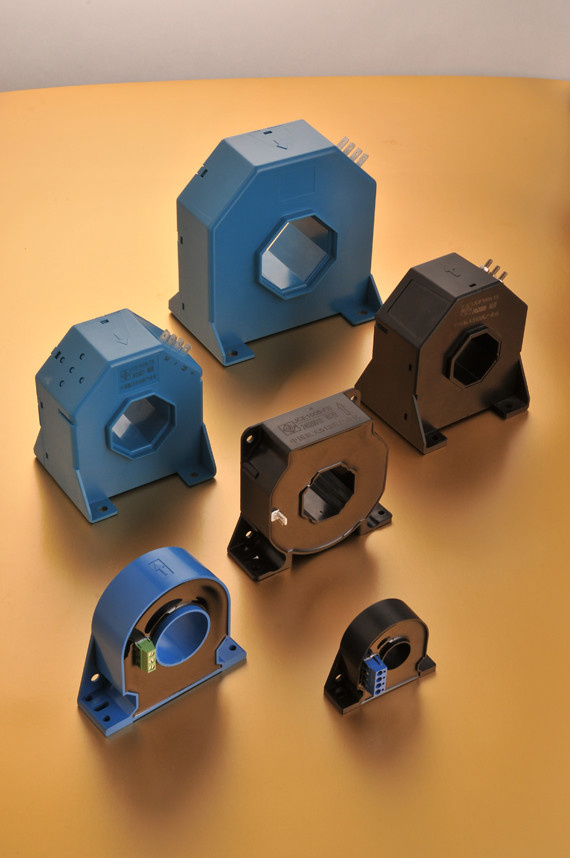

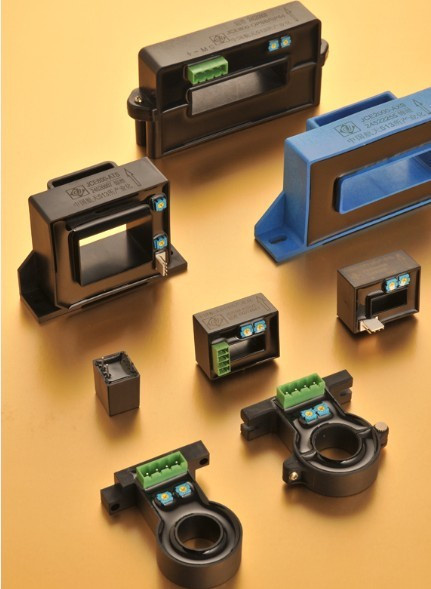

| Type | K4-200A | K4-400A | K4-600A | K4-800A | K4-1000A | K4-1500A | Unit |
| Rated current(Ipn) | ± 200 | ± 400 | ± 600 | ± 800 | ± 1000 | ± 1500 | A |
| Measure range(Ip) | ± 400 | ± 800 | ± 1200 | ± 1600 | ± 2000 | ± 2000 | A |
| Rated output | @Ip=± Ipn ± 4± 1% | V |
| Supply voltage | ± 12, ± 15 | V |
| Power Consumption | < 25 | mA |
| Offset voltage | @Ip=0 ± 25 | mV |
| Magnetic offset | @Ip=± Ipn-0 ± 30 | mV |
| Offset drift | @ -40~+85 ≤ ± 1 | mV |
| Output drift | @ -40~+85 ≤ ± 1 | mV |
| Linearity | @Ip=0-± Ipn ≤ 1 | %FS |
| Response time | @50A/μ S, 10%-90% ≤ 5 | μ s |
| Galvanic isolation | @ 50HZ, AC, 1min 5 | KV |
| Model | Power Supply | rated current | rated output | linearity | Mounting | window dimension | technology |
| B1 | ±12V,±15V | 6-50A | 25/50mA | 0.2% | PCB | | Closed Loop |
| B2 | ±12V,±15V | 5-25A | 25mA | 0.2% | PCB | | Closed Loop |
| B2N | ±12V,±15V | 0.5-20A | 4V | 0.2% | PCB | | Closed Loop |
| B2X | ±12V,±15V | 1-5A | 25mA | 0.2% | PCB | | Closed Loop |
| B3/B3V | ±12V,±15V | 50-300A | 50/100mA | 0.2% | panel | 20.5*10 | Closed Loop |
| B4 | ±12V,±15V | 200A-500A | 100mA | 0.2% | panel | 41*12 | Closed Loop |
| B4X | ±12V,±15V | 200A-500A | 100mA | 0.2% | panel | 51*13 | Closed Loop |
| B6 | ±12V,±15V | 50A/100A | 50mA | 0.2% | PCB | 12.5*7 | Closed Loop |
| B7 | ±12V,±15V | 5-30A | 4V | 0.2% | PCB | | Closed Loop |
| B8 | ±12V,±15V | 5-30A | 4V | 0.2% | PCB | | Closed Loop |
| B8X | ±12V,±15V | 5-30A | 4V | 0.2% | PCB | | Closed Loop |
| B8XT | +5V | 5-30A | 2.5±0.625V | 0.2% | PCB | | Closed Loop |
| B9 | ±12V,±15V | 125A/200A | 125/100mA | 0.2% | PCB | 10.5*16.5 | Closed Loop |
| B100 | +5V | 2-50A | 2.5±0.625V | 0.2% | PCB | 6*4 | Closed Loop |
| B102T | +5V | 20A/25A | 2.5±2V | 0.2% | PCB | 8.5 | Closed Loop |
| B200 | +5V | 10-40A | 2.5±1V | 0.2% | PCB | 5.5 | Closed Loop |
| B201 | ±12V,±15V | 10-40A | 10--25mA | 0.2% | PCB | 5.5 | Closed Loop |
| B201X | ±12V,±15V | 10-50A | 10--50mA | 0.2% | PCB | 6 | Closed Loop |
| B203 | ±12V,±15V | 25-100A | 25--50mA | 0.2% | PCB | 11.5 | Closed Loop |
| B203T | +12V | 10-100A | 5±2V | 0.2% | PCB | 11.5 | Closed Loop |
| B203XT | +5V | 10-100A | 2.5±1V | 0.2% | PCB | 8.5 | Closed Loop |
| D1 | ±12V,±15V | 50-300A | 50--150mA | 0.2% | panel | 20 | Closed Loop |
| D5 | ±12V,±15V | 50-300A | 50--150mA | 0.2% | panel | 20 | Closed Loop |
| D6 | ±12V,±15V | 300A/500A | 100mA | 0.2% | panel | 35 | Closed Loop |
| D7 | ±12V,±15V | 1000A | 200mA | 0.2% | panel | 45 | Closed Loop |
| D8 | ±12V,±15V | 1000A | 200mA | 0.2% | panel | 40 | Closed Loop |
| D9 | ±12V,±15V | 2000A | 400mA | 0.2% | panel | 72 | Closed Loop |
| N1 | ±12V,±15V | 10-50A | 4V | 0.2% | panel | 6.5 | Closed Loop |
| C1 | ±12V,±15V | 30-500A | 4V | 1% | panel | 20 | Open Loop |
| C1X | ±12V,±15V | 50-500A | 4V | 1% | panel | 28 | Open Loop |
| C2 | ±12V,±15V | 30-500A | 4V | 1% | panel | 21 | Open Loop |
| C2T | +12V,+15V,+24V | 50-500A | 5±2V | 1% | panel | 21 | Open Loop |
| C2N | ±12V,±15V | 10-50A | 1V | 1% | panel | 8.5 | Open Loop |
| C2NT | +12V | 10-50A | 2.5±1V | 1% | panel | 8.5 | Open Loop |
| C3 | ±12V,±15V | 100-2000A | 4V | 1% | panel | 40.5 | Open Loop |
| C5N | ±12V,±15V | 100-1000A | 4V | 1% | panel | 17.5 | Open Loop |
| C5X | ±12V,±15V | 100-1000A | 4V | 1% | panel | 32 | Open Loop |
| K3 | ±12V,±15V | 50-600A | 4V | 1% | panel | 20.5*10 | Open Loop |
| K3N | ±12V,±15V | 30-200A | 4V | 1% | panel | 12*8 | Open Loop |
| K3NT | +5V | 30-200A | 2.5±1V | 1% | panel | 12*8 | Open Loop |
| K3T | +12V,+15V,+24V | 50-500A | 5±2V | 1% | panel | 20.5*10 | Open Loop |
| K3X | ±12V,±15V | 50-600A | 4V | 1% | panel | 22*16 | Open Loop |
| K3X3 | ±12V,±15V | 100-500A | A/B/C:4V | 1% | panel | ABC:22*13 | Open Loop |
| K4 | ±12V,±15V | 100-1500A | 4V | 1% | panel | 41*12 | Open Loop |
| K4N | ±12V,±15V | 100-1500A | 4V | 1% | panel | 40.5*20.5 | Open Loop |
| K4X | ±12V,±15V | 200-2000A | 4V | 1% | panel | 51*13 | Open Loop |
| K5 | ±12V,±15V | 500-2500A | 4V | 1% | panel | 64*16 | Open Loop |
| K5N | ±12V,±15V | 200-1500A | 4V | 1% | panel | 40.5*30.5 | Open Loop |
| K6 | ±12V,±15V | 500-3000A | 4V | 1% | panel | 85*27 | Open Loop |
| K104 | ±12V,±15V | 1000-5000A | 4V | 1% | panel | 104*36 | Open Loop |
| K140 | ±12V,±15V | 2000-10000A | 4V | 1% | panel | 140*50 | Open Loop |
| K140X | ±12V,±15V | 2000-10000A | 4V | 1% | panel | 140*36 | Open Loop |
| K210 | ±12V,±15V | 2000-20000A | 4V | 1% | panel | 210*100 | Open Loop |
| D-C1T | +12V,+15V,+24V | DC 30-500A | DC 4V,5V | 1% | panel | 20 | Open Loop |
| D-C2T | +12V,+15V,+24V | DC 30-500A | DC 4V,5V | 1% | panel | 20 | Open Loop |
| D-C3T | +12V,+15V,+24V | DC 100-2000A | DC 4V,5V | 1% | panel | 40 | Open Loop |
| D-K3NT | +12V,+15V,+24V | DC 30-200A | DC 4V,5V | 1% | panel | 12*8 | Open Loop |
| D-K3T | +12V,+15V,+24V | DC 50-600A | DC 4V,5V | 1% | panel | 20.5*10 | Open Loop |
| D-K4T | +12V,+15V,+24V | DC 100-1500A | DC 4V,5V | 1% | panel | 41*12 | Open Loop |
| A-C1NT | +12V,+15V,+24V | AC 5-50A | DC 4-20mA | 1% | panel | 12 | AC&DC transducers |
| A-C2 | ±12V,±15V | AC 30-500A | DC 4V,5V | 1% | panel | 21 | AC&DC transducers |
| A-C2T | +12V,+15V,+24V | AC 30-500A | DC 4-20mA | 1% | panel | 21 | AC&DC transducers |
| A-C3 | ±12V,±15V | AC 100-2000A | DC 4V,5V | 1% | panel | 40.5 | AC&DC transducers |
| A-C3T | +12V,+15V,+24V | AC 100-2000A | DC 4-20mA | 1% | panel | 40.5 | AC&DC transducers |
| A-C3X | ±12V,±15V | AC 100-2000A | DC 4V,5V | 1% | panel | 50 | AC&DC transducers |
| A-K3 | ±12V,±15V | AC 30-600A | DC 4V,5V | 1% | panel | 20.5*10 | AC&DC transducers |
| A-K5T | +12V,+15V,+24V | AC 200-2000A | DC 4-20mA | 1% | panel | 64*16 | AC&DC transducers |
| A-N1T | +12V,+15V,+24V | AC 10-50A | DC 4-20mA | 0.5% | panel | 6.5 | AC&DC transducers |
| A-D5T | +12V,+15V,+24V | AC 10-100A | DC 4-20mA | 0.5% | panel | 20 | AC&DC transducers |
| A-D6T | +12V,+15V,+24V | AC 100-500A | DC 4-20mA | 0.5% | panel | 35 | AC&DC transducers |
| LD1 | ±12V,±15V | DC 10-100mA | DC 5V | 1.0% | panel | 20 | Leakage CS |
| LD2 | ±12V,±15V | DC 10-100mA | DC 5V | 1.0% | panel | 40 | Leakage CS |
| VS1 | ±12V,±15V | 10mA | 25mA | 0.2% | PCB | | voltage Transducers |
| VS2 | ±12V,±15V | 50V-800V | 20mA | 0.2% | PCB | | voltage Transducers |
| VS3 | ±12V,±15V | 50V-1000V | 5V | 0.2% | | | voltage Transducers |
| A-VS1TP | +12V,+15V,+24V | AC 50V-800V | DC 20mA | 0.2% | | | voltage Transducers |
| A-VS2 | ±12V,±15V | AC 50V-800V | DC 20mA | 0.2% | PCB | | voltage Transducers |
