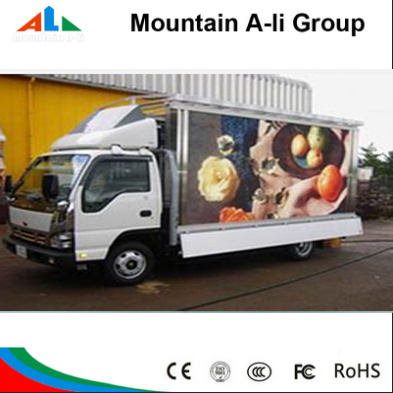

Car LED Display/P16 Full Color Video Display

Name: Car LED Display/P16 Full Color Video Display
Brand: china-manufacturer-directory.com
SKU: 763537055
Availability: InStock
Rating: 4.9 (68 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 500-600/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	P16 Car Outdoor Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:10mm*160mm:	Cabiet Size:960mm*960mm
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	16mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Scanning Mode:	Static Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,ISO9001
Pixel Density:	3096dots/M2

Product Description

Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 5-12working days

Description	Technical parameter
Unit module	Module size	256*256mm
	Pixel pitch	16mm
	Pixel density	10, 000dots/m2
	Pixel configuration	1R1G1B
	Led specification	DIP346
	Pixel resolution	W: 16dots*H: 16dots
Cabinet	Dimension	1024mm*1024mm
	Quantities of module	16pcs
	Power supply	6pcs
	Thermal discharge	Fan*2pcs
	Total weight	50kg
	Best viewing angle	10-50m
	Temperature	Storage: -35degree~+80degree
	Temperature	Working: -35degree~+85degree
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	350W/H
	Max. Power consumption	≤ 800W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	static scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 600Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8000cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 9, 000hours
	Life span	≥ 9, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
	Flatness	Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	800600/1024768/1280*900
Software	LED media player

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
