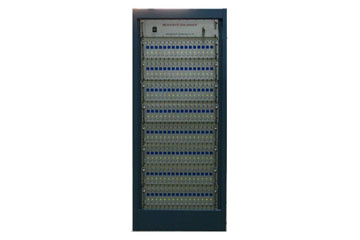

Cenelec Multiple Frequency Signal Generator (ZBL 6842B)

Cenelec Multiple Frequency Signal Generator (ZBL 6842B)
Supplier: Zhejiang BC & TV Technology Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: CIF
contact supplier

Product Specifications

Prod Model: ZBL 6842B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: CATV(Cable Television)Equipment

Product Description

Features
1 Power ON/OFF controlled by computer
2 Each output and total output controlled by computer
3 Modulation Degree ON/OFF controlled by computer
4 Working Status Protection
5 Remote Control
RF Parameters
Item Units Value
Working Frequency MHz 48-862
Frequency Accuracy kHz ± 10
Frequency Total Deviation kHz ± 50
Out-of-band Rejection d B c ≥ 80
Max Output Level d B m V ≥ 95
Single Output Attenuation d B ≥ 10
Step d B ≤ 0.1
Total Output Attenuation d B 40
Step d B 1
Output Impedance W 75
Modulation Degree   ≥ 99.4 %( TURN ON)
Phase Noise dBc/Hz ≤ -85( 10kHz)
dBc/ Hz ≤ -100 ( 100kHz )
Modulation Signal Parameters
Inner Line Frequency Hz 15625
Frequency Accuracy Hz ± 2
External Line Frequency Input: TTL Level
Other Parameters
Working Voltage: AC 220V ± 10%
    50Hz ± 5%
Apparent Power VA 520
Packing Information
a. Weight: kg 155
b  . Dimension  ( mm  ): (W)x(D)x(H) 595x550x1400
Environment
Working Temperature º C 10~30
Relative Humidity RH (  20-75  ) %
Limited Temperature º C 0~40
Storage Temperature º C -40~60

Zhejiang BC&TV Technology Co., Ltd. is a leading manufacturer specialized in providing digital TV headend, optical equipment, CATV network equipment, digital/analog TV meters, and Ethernet equipment for clients from all over the world.
Our company was founded by 7 companies and was chosen as the reform demonstration base authorized by Zhejiang Provincial Government.

We boast a regular staff of 120 members, among whom more than 80 graduated from university with one senior engineer, 15 senior engineers and 40 medium-grade professional title holders.

We offer optical transmitter, optical receiver, optical platform, optical workstation, EDFA, FTTH Node, CATV amplifier, agile QAM modulator, DS3 adopter, TS multiplexer, digital matrix switcher, digital/analog TV meter, 98/84chs PAL channel signal generator, and 110chs NTSC signal generator media converter.

Our company has enough capitals that keep going forward on the road of development firmly.

We are your trustworthy supplier for a long-term partnership.
