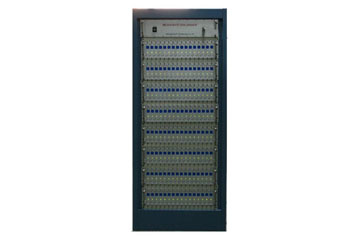

NTSC Multiple Frequency Signal Generator (ZBL 68128A)

Name: NTSC Multiple Frequency Signal Generator (ZBL 68128A)
Brand: china-manufacturer-directory.com
SKU: 675316512
Availability: InStock
Rating: 4.6 (23 reviews)

Supplier:	Zhejiang BC & TV Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Features
1 Power ON/OFF controlled by computer
2 Each output and total output controlled by computer
3 Modulation Degree ON/OFF controlled by computer
4 Working Status Protection
5 Remote Control

Item	Units	Value
Working Frequency	MHz	54-870
Frequency Accuracy	kHz	± 10
Frequency Total Deviation	kHz	± 50
Out-of-band Rejection	dBc	³ 80
Max Output Level	dBmV	³ 95
Single Output Attenuation Step	dB	³ 15 £ 0.1
Total Output Attenuation Step	dB	40 1
Output Impedance	W	75
Modulation Degree		³ 99.4 %(ON)
Inner Line Frequency	Hz	15734.26
Frequency Accuracy	Hz	± 2
External Line Frequency Input		TTL Level
Working Voltage		AC 220V± 10% 50Hz± 5%
Apparent Power		680VA
Weight	kg	188
Dimension	mm	595(W)´ 550(D)´ 1400(H)
Working Temperature	° C	10~30
Relative Humidity	%RH	20-75
Storage Temperature	° C	-40~60

Zhejiang BC&TV Technology Co., Ltd. is a leading manufacturer specialized in providing digital TV headend, optical equipment, CATV network equipment, digital/analog TV meters, and Ethernet equipment for clients from all over the world.
Our company was founded by 7 companies and was chosen as the reform demonstration base authorized by Zhejiang Provincial Government.

We boast a regular staff of 120 members, among whom more than 80 graduated from university with one senior engineer, 15 senior engineers and 40 medium-grade professional title holders.

We offer optical transmitter, optical receiver, optical platform, optical workstation, EDFA, FTTH Node, CATV amplifier, agile QAM modulator, DS3 adopter, TS multiplexer, digital matrix switcher, digital/analog TV meter, 98/84chs PAL channel signal generator, and 110chs NTSC signal generator media converter.

Our company has enough capitals that keep going forward on the road of development firmly.

We are your trustworthy supplier for a long-term partnership.
