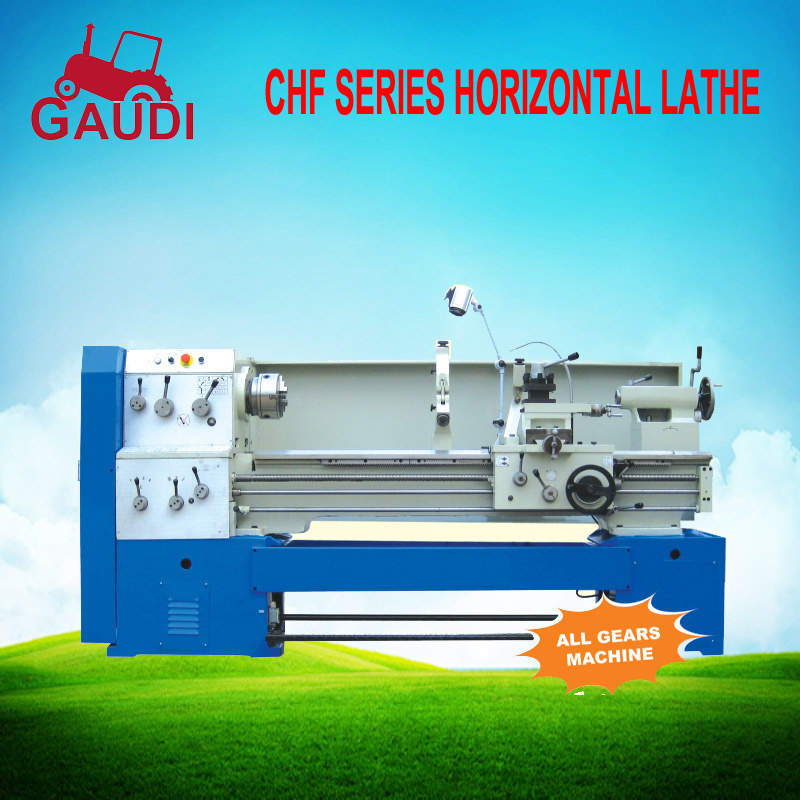

Chf Series Horizontal Lathe (all gears machine)
Product Specifications
| Prod Model: |
CH6236F, CH6240F, CH6250F horizontal lathe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lathe: |
Horizontal Lathe |
| Brand: |
Gaudi Horizontal Lathe |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Normal Precision |
| Power Source: |
Electric |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
Artificial |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
Product Description
CHF series horizontal lathe (ALL GEARS MACHINE)
Product Features:
Hardened and ground bed ways.
Gears in headstock precisely ground to reduce noise.
Kinds of threads.
Electric sysem is reliable and safe.
Electromagnetic brake can be amounted when needed, and color at user soption.
|
CHF series lathe technical parameters |
|
Model |
CH6236F |
CH6240F |
CH6250F |
CAPACITY |
Max.swing over bed |
360mm |
400mm |
500mm |
|
Max.swing over cross slide |
190mm |
230mm |
330mm |
|
Max.swing over gap |
520mm |
560mm |
660mm |
|
Effective length of gap |
200mm |
|
Center Distance |
750\1000\1500\2000mm |
|
Bed Width |
360mm |
HEADSTOCK |
Spindle hole |
52mm |
|
Spindle nose |
ISO-C6 or D6 |
|
Spindle taper |
MT6 |
|
Spindle speed(Number) |
(9steps)40-1400rpm |
FEEDS |
Longitudinal feeds range |
55kinds 0.021-0.592mm/rev |
|
Cross feeds range |
55kinds 0.015-0.375mm/rev |
|
Metric threads range |
17kinds 0.25-7mm |
|
Inch threads range |
30kinds 5-144inch |
|
Moudle threads range |
12kinds 0.25-3.5mπ |
|
Diametral threads range |
30kinds 10-288D.P |
CARRIAGE |
Max.travel of top slide |
95mm |
|
Max.travel of cross slide |
180mm |
230mm |
|
Max.size of toolshank |
20*20mm 2 |
TAILSTOCK |
Dia.of tailstock sleeve |
65mm |
|
Taper of tailstock sleeve |
MT4 |
|
Max.travel of tailstock |
140mm |
MOTOR |
Main drive motor |
4KW |
5.5KW |
|
Coolant pump motor |
125W |
|
PACKING(L*W*H): |
|
|
750mm |
225*115*165cm |
|
1000mm |
245*115*165cm |
|
1500mm |
288*115*1650cm |
|
WEIGHT(N.W/G.W): |
|
|
750mm |
1400/1800kg |
1450/1850kg |
1550/1950kg |
|
1000mm |
1500/1900kg |
1550/1950kg |
1650/2050kg |
|
1500mm |
1650/2050kg |
1700/2100kg |
1800/2200kg |
|
Yancheng Foreign Trade Corp. Ltd. is a professional manufacturer of agricultural and industrial machines. We are one of the key enterprises specializing in exporting Chinese machines of SGM (Sunny Group Machine), a famous machinery manufacturing group in China.
Our product range covers a variety of industries such as tractors, front end loaders, hydraulic backhoes, ploughs, rotary cultivators, seed drills, excavators, single shafts or hydraulic dump trailers, PTO shaft driving water pumps or generators, chippers, ditching machines, mowers, snow blowers, mini dozers, mini and big hydraulic excavators, forklift trucks, skid steer loaders, wheeled loaders and backhoe loaders. Under control of ISO9001: 2000, many models of our products carry CE, UL, OECD, EPA, CARB and EEC and comply with the RoHS standards
Moreover, we are an ISO9001 certified company. The principle of our company is to provide high quality products with competitive prices, fast delivery, flexible terms and prompt responses.
