China Dozer Compare to D7 Bulldozer with Cummins Engine

Name: China Dozer Compare to D7 Bulldozer with Cummins Engine
Brand: china-manufacturer-directory.com
SKU: 774952175
Availability: InStock
Rating: 4.6 (111 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 90000-100000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	WD220Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tractor Bulldozer:	Bulldozer
Dozer Blade Capacity:	5m3
Engine Brand:	Cummins
Working Pump:	Gear Pump
Track Width:	560 mm
Number Of Tract Rollers:	4 Single and 2 Double
Blade Type:	Straight Blade
Options:	Ripper, Angle Blade, U Blade
Lead Time:	30 Days
Warranty:	One Year
Walking Mode:	Crawler
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New
Type:	Bulldozer

Product Description

prices of dozer D7

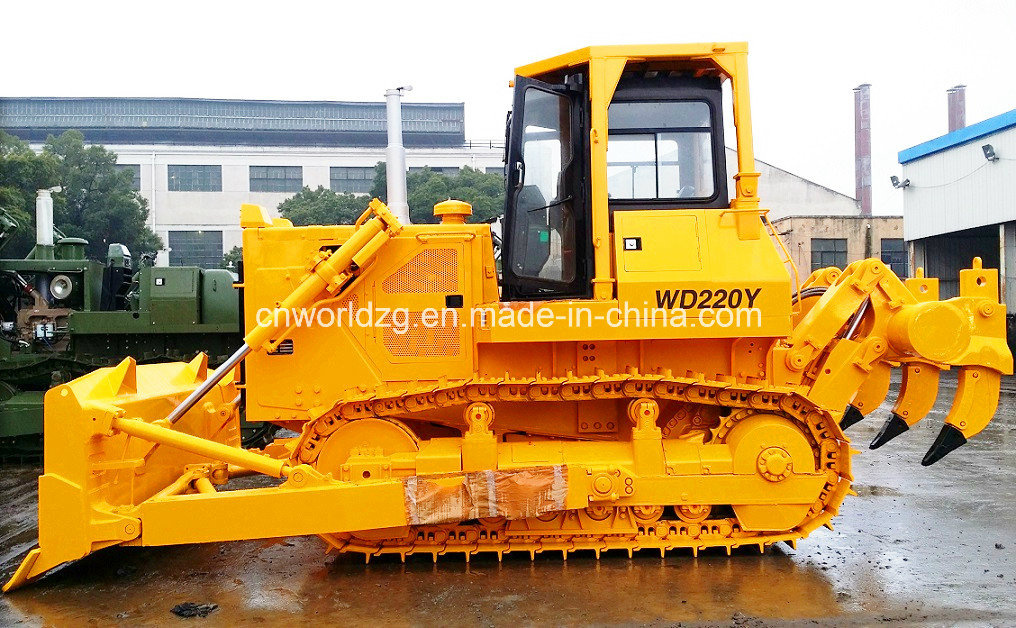

WD220Y bulldozer is manufactured base on the technology of Komatsu D85A-18 and D85A-23 Japan. It passed the examination of the experts group of shanghai economy committee. Its layout is well designed, its appearance is nice and modern, it has a high working performance and is reliable in safety. The machine has used in civil industry widely including large mine ground, port, electricity, road building.

Specifications:

Engine
Model	Cummins NT855-C280S10
Type	Straight vertical, 4 stroke, water cooling, PT pump injection, turbocharged
Flywheel power	162 kw
Rated speed	1800 rpm
No. of cylinder-bore x stroke	6-139.7x152.4 mm
Starting method	Starting motor, 24V, 11kw
Battery	24V(12Vx2)-195AH
Air cleaner	Dry horizontal type with precleaner
Min fuel consumption ratio	218 g/kw.h
Transmission system
Torque converter	3 element, single stage, single phase
Transmission	Hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump, 3 forward and 3 reverse speeds
Bevel gear	Helical bevel gear, splash lubricated
Steering clutch	Wet type, multiple disc, spring loaded, hydraulic released
Steering brake	Wet band brake, operated with hydraulic booster and valve inner linkage
Final drive	Spur gear, double reduction, splash lubricated
Working hydraulic system
Working pressure	13.7 Mpa
Rated flow	257 L/min (2000rpm)
Pump	CBT3160 gear pump
Control valve	Hand-operated, plunger, servo controlling
Cylinder bore x rod x stroke	120x70x1054 mm
