Tengzhou Sanzhong Machinery Manufacture Co., Ltd. >> China Universal Vertical and Horizontal Turret Milling Tools X6332b for Sale with CE Standard

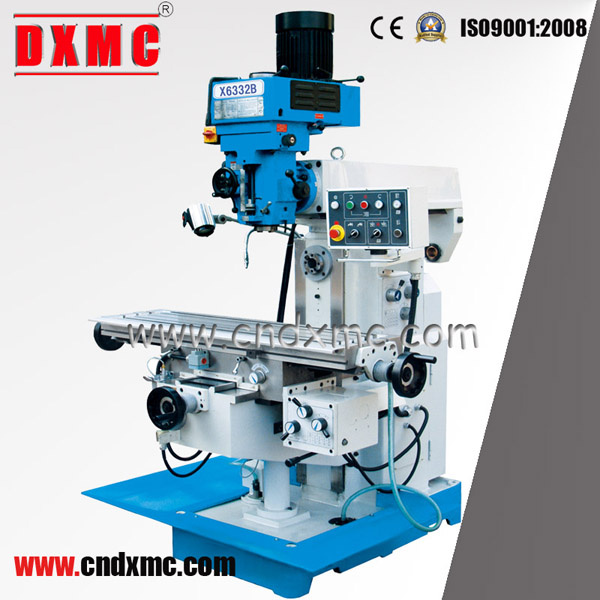

China Universal Vertical and Horizontal Turret Milling Tools X6332b for Sale with CE Standard

Name: China Universal Vertical and Horizontal Turret Milling Tools X6332b for Sale with CE Standard
Brand: china-manufacturer-directory.com
SKU: 685672182
Availability: InStock
Rating: 4.3 (84 reviews)

Supplier:	Tengzhou Sanzhong Machinery Manufacture Co., Ltd.
Price:	US $ 1-7000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	X6332B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	According to Customer Requirment
Processing Type:	Milling Tools
Workpiece And Weight:	Large Milling Machine China
Original:	Made in China
Automatic Grade:	Semiautomatic
Precision:	High Precision
Controlling Mode:	Artificial
Object:	Tool
Type:	Tool Milling Machine
Structure:	Desktop

Product Description

Brief introduction

1. Cast iron after artificial aging treatment, high precision, long service life
2. Gear power feed, motorized lift on Z axis
3. Three axis hardening treatment, rectangular guideway
4. Equipped with manual lubricating device, the lubrication on the lead screw and guideway

Specifications	X6332B
Spindle taper	ISO40
Spindle travel(mm)	150
Distance from spindle to column(mm)	200-500(V)
Distance from spindle to table surface(mm)	155-455(V) 0-300(H)
Spindle speed range(r.p.m)	75-3500 V 12 step 60-1350 H
Table size	1250*320
Table travel	600300300
Main motor(kw)	3.7/2(V)
Table feeding speeds(8sets) (mm)	15-370 (rapid 540/min)
T-slot (number-width-disance) (mm)	3/4/70
Overall dimensions(mm)	1700× 1520 × 2260
N.W/G.W (kg)	1750/1950

Our company is special in producing milling machine, radial arm milling machine and multi-function turret milling machine which are popular in Europe, Southeast Asia market. With high quality, good credit, concentrate all for customer. We are obey the principle to satisfy with our customer by actively innovating, absorb other companies' advantage, perfecting every product, moves customers with good credit, wins customers with high quality. We will perfect our service with higher, faster, newer, stricter woking attitude, and afford our efforts for your success.
