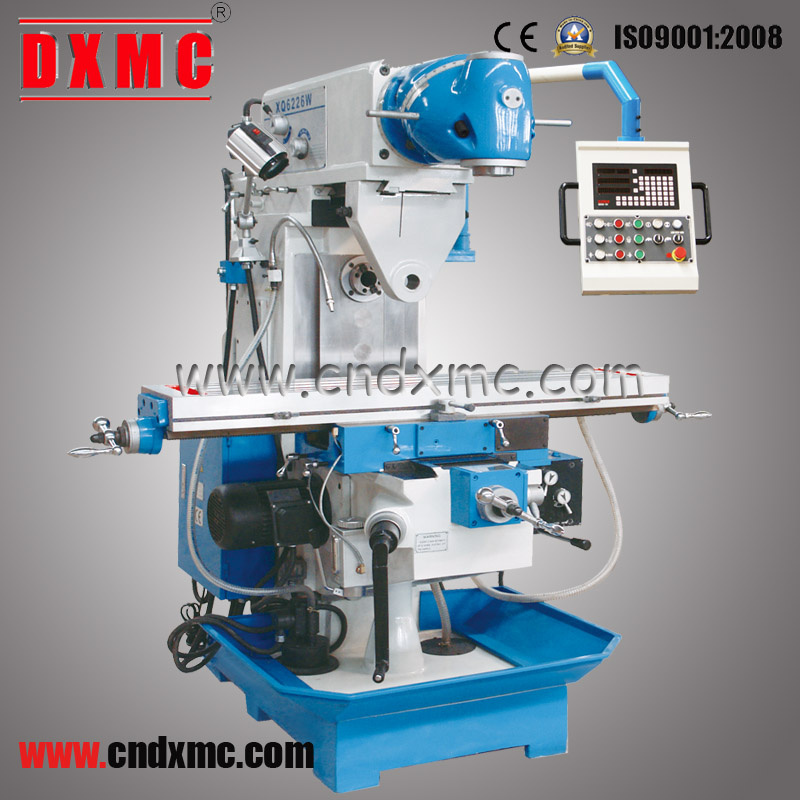

Product Specifications
| Prod Model: |
XQ6226W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
According to Customer Requirment |
| Processing Type: |
Milling Machine Made in China |
| Workpiece And Weight: |
Large Machine Tool |
| Original: |
Made in China |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Controlling Mode: |
Artificial |
| Object: |
Tool |
| Type: |
Tool Milling Machine |
| Structure: |
Desktop |
Product Description
Brief introduction
1. Universal milling head, machining flexibility
2. X axis mechanical feed
3. Multifunctional drilling and milling machine
4. Gear transmission milling head
|
Specifications |
XQ6226W |
|
Max.horizontal milling dia |
125 |
|
Max.vertical millng dia |
28 |
|
Distance.spindle to table surface |
560 |
|
Spindle speeds range |
35-1600 |
|
Swivel angle of swivel head |
±360° |
|
Ram travel |
420 |
|
Table size |
1270*260 |
|
Table travel |
750*300 |
|
Overall dimensions |
1655 × 1500 × 1730 |
|
N.W/G.W (kg) |
1480/1660 |
|
Spindle speeds range |
40-1300 |
|
Max.hprizontal milling dia |
100
|
Our company is special in producing milling machine, radial arm milling machine and multi-function turret milling machine which are popular in Europe, Southeast Asia market. With high quality, good credit, concentrate all for customer. We are obey the principle to satisfy with our customer by actively innovating, absorb other companies' advantage, perfecting every product, moves customers with good credit, wins customers with high quality. We will perfect our service with higher, faster, newer, stricter woking attitude, and afford our efforts for your success.
