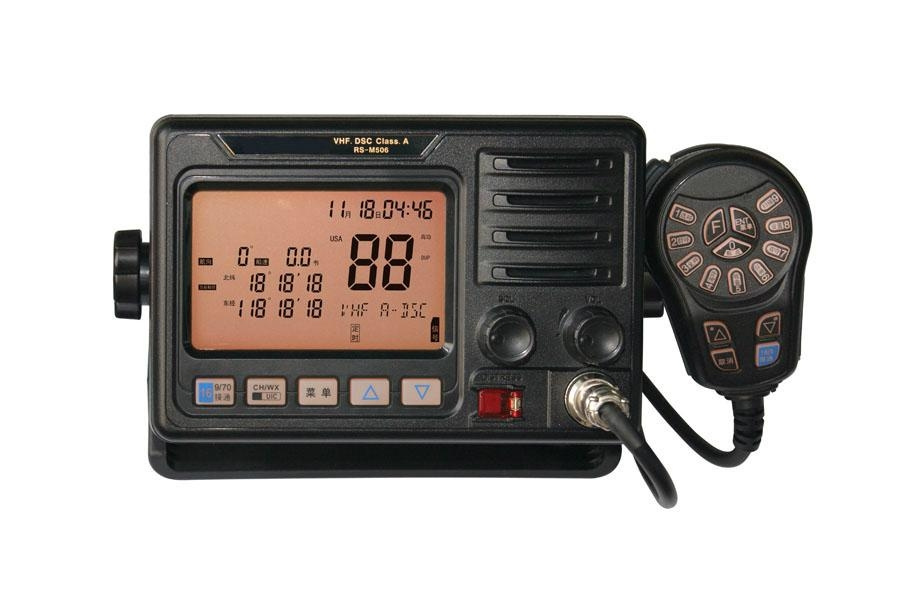

Class a DSC VHF Marine Radio Tc-506m

Name: Class a DSC VHF Marine Radio Tc-506m
Brand: China-Manufacturer-Directory.com
SKU: 756608575
Availability: InStock
Rating: 4.6 (60 reviews)

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	TC-506M
Markets:	North America,South America,Eastern Europe,Southeast Asia
Frequency Range:	Tx:156.025-157.425MHz
Channel No.:	88 Channels
Type Of Emission:	FM(16k0g3e),DSC(16k0g2b)
Receiving System:	Double Conversion Superheterodyne
Frequency Stabilization:	±5ppm
Work Voltage (V):	DC13.8V(±15%)
Operating Temperature:	Minus 20 Degrees Celsius~60degree
Antenna Impedance:	50men
Dimensions:	116×85×175mm
Weight:	1350g(±2%)
Style:	Sky Wave
Condition:	New
Screen:	With Screen
Standard:	Standard

Product Description

Main Features of DSC VHF Marine Radio
1. GPS Function
2. Built-In DSC, CH70 Continuous Watch
3. FM 88-108MHz Radio
4. 64 Waypoints Memory and Navigation
5. 10 Weather Channels and Weather Alert
6. Auto-Record Message
7. Collision Avoidance Alarm Display
8. 10 Weather Channels and Weather Report
9. Priority Scan, Dual-watch and Tri-watch Functions
10. Distress Call, Individual Call, Group Call etc

Technical Specifications of dsc vhf marine radio :

General ( DSC vhf marine radio )
Frequency Range	TX:156.025-157.425MHz
Frequency Range	RX:156.050-163.275MHz
Channel No.	88 channels
Type of Emission	FM(16K0G3E),DSC(16K0G2B)
Receiving System	Double conversion superheterodyne
Frequency Stabilization	±5ppm
Work Voltage (V)	DC13.8V(±15%)
Operating Temperature	-20°C~+60°C
Antenna Impedance	50Ω
Dimensions(W×H×D)	116×85×175mm
Weight	1350g(±2%)
Transmitter ( dsc marine vhf radio )
RF Power Output	25W/1W
Modulation Limit	±5KHz
Modulation Sensitivity	6mV±3mV
Adjacent Channel Selectivity	≥65dB
TX Audio Distortion	≤5%
Spurious and Harmonic	≤ -65dB
Residual Frequency Modulation	≥40dB
Current Consumption	≤ 8.0A(High power)
Current Consumption	≤ 1.5A(Low power)
Input Impedance	2KΩ(Microphone)
Receiver ( DSC vhf marine radio )
RX Sensitivity	≤0.2µV(12 dB SINAD)
Band Modulation	≥2*5KHz
Squelch Sensitivity	≥5KHz
Adjacent Channel Selectivity	≥65dB
Intermodulation Anti-interference	≥60dB
Spurious Response Rejection	≥65dB
Max RX Current(mA)	≤1.5A
Audio Output Power	≥3W(8Ω)
Audio Distortion	≤5%
GPS Signal Format	NMEA0183-2.0
Audio Output Impedance	8Ω(Speaker)
All specifications are subject to change without notice due to continuous development
