Tengzhou City Good CNC Machine Co., Ltd. >> CNC Machine Tool (VMC650G)

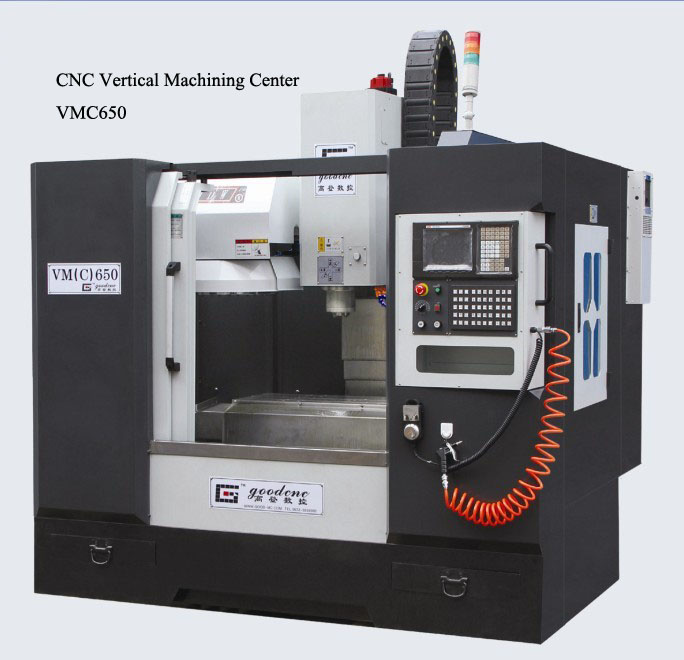

CNC Machine Tool (VMC650G)

Name: CNC Machine Tool (VMC650G)
Brand: China-Manufacturer-Directory.com
SKU: 700961345
Availability: InStock
Rating: 4.5 (81 reviews)

Supplier:	Tengzhou City Good CNC Machine Co., Ltd.
Price:	Negotiable
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	VMC650G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CNC System:	Fanuc Mitsubishi Siemens Gsk Knd
Atc:	Taiwan Tool Changer
Guide Ways:	3 Axis Box Guide Ways
Spindle:	Taiwan Spindle
Cover:	Sheet Metal Fulll Closed Cover
Others:	as Clients Need
Controlling Mode:	CNC
Precision:	High Precision
Automatic Grade:	Automatic
Type:	Vertical

Product Description

WorkTable800mmx370mm
X/Y/Z axis travel: 600mmx380mmx450mm
Vertical Type
3 axes Taiwan Box guide ways
CNC system

NO.	ITEM				Parameters
1	Table size L(mm)× W(mm)				800× 370
2	T slot QTY /width/interval distance(mm)				3-14-120
3	Maximum load(KG)				400
4	X travel (mm)				600
5	Y travel (mm)				380
6	Z travel (mm)				450
7	Spindle nose to table (mm)				100-600
8	Spindle center to column (mm)				410
9	Spindle taper				BT40/120
10	Max. spindle speed (Rpm)				8000
11	Main motor (Kw)				7.5
12	Feed motor		X torque(N. M)		6
			Y torque(N. M)		7.7
			Ztorque(N. M)		7.7
			Max. install size		7.5
13	Rapid moving speed (m/min. )				12/12/10
14	Cutting speed (mm/min)				1-6000
15	Ball screw (diametermm/pitch )mm				32/10
17	Accuracy	Positioning accuracy (mm)			0.016
		Repeatability accuracy (mm)			0.008
18	Tool changer	Funnel type (optional ) BT40			16
19	Air pressure Mpa				0.6
20	Machine weight (kg)			Frame	2500
				Complete machine	3000
21	Machine overall size:			Frame	2200× 1550× 2000
				Complete machine	2500x2250x2300

Tengzhou Good CNC Machine Co., Ltd., is a professional CNC machine manufacturer. We have obtained ISO9001 certificate and also we are strategic partner of minim(Taiwan) techonology Co., Ltd.

Our company contains miller, CNC milling, OEM three departments. For many years, we have devoted ourself into the R&D of CNC milling and machine center. Some key parts of our machines are import from Taiwan or other countries. Our CNC machine vmc1060g\vmc850g\vmc650g\vmc550g linear guide way\ vmc550\xh400\m01, m2\m03, m04 linear guide way are popular in China and abroad.

We have set up long term cooperation relationship with decades of suppliers and R&D centers in China. Our self-developed m-series mini CNC milling machine and machine center have achived good reputation in many countries.

We will keep up the theme of "providing excellent machines and offering perfect services and after-sales services". We will insist "customer-oriented marketing" policy. We welcome all customers to visit us and create benefits together.
