Tengzhou City Good CNC Machine Co., Ltd. >> CNC Machine Tool X Travel 2200mm

CNC Machine Tool X Travel 2200mm

Name: CNC Machine Tool X Travel 2200mm
Brand: China-Manufacturer-Directory.com
SKU: 701702035
Availability: InStock
Rating: 4.3 (127 reviews)

Supplier:	Tengzhou City Good CNC Machine Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Xyz Axis Travel:	2200mmx1600mmx750mm
Column Distance:	1600mm
Work Table:	2000mmx 1400mm
Spindle:	Bt50 6000rpm
Tool Changer:	Chain Type
Object:	Tool
Type:	Planer type Milling Machine
Structure:	Gantry
Controlling Mode:	CNC
Precision:	Precision
Automatic Grade:	Automatic

Product Description

Cnc machine tool x travel 2200mm
XYZ axis travel 2200mmx1600mmx750mm
Column distance 1600mm
Work table size 2000mmx1400mm
Spindle unit BT50 6000RPM
ATC Chain type 32pcs

planer type milling machine

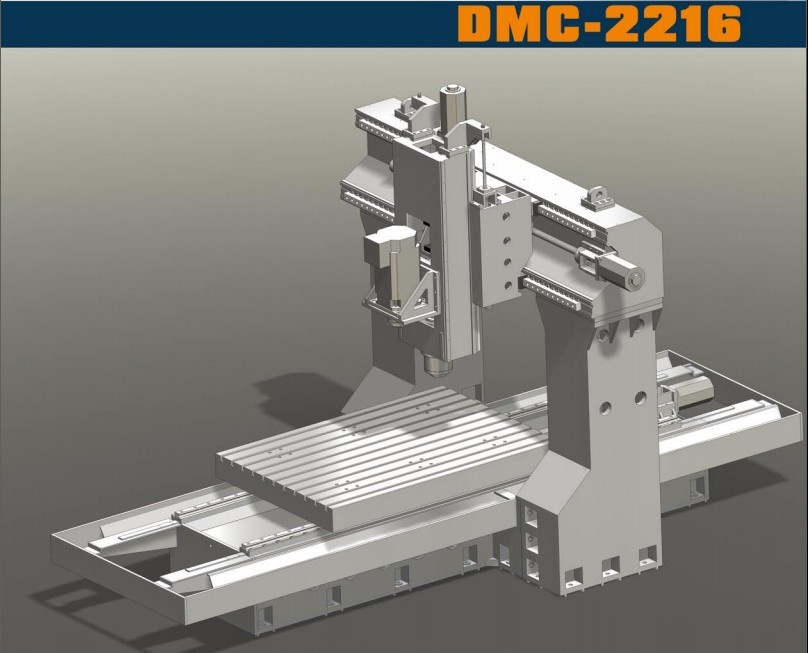

Models	DMC2216
X/Y/Z Axis Travel
X-Axis Travel	2200mm
Y-Axis Travel	1600mm
Z-Axis Travel	750mm
Spindle Nose To Table	150-900mm
Coumn Between	1600mm
Table
Table Size	2000× 1400mm
T-Slot	11× 22× 125mm
Maximum Table Load	6000kg
Spindle
Spindle Taper	BT50
Spindle RPM	6000RPM
Type Of Driving	Belt
Spindle Motor	18.5/22kw
Feed Rate
X/Y/Z Axis Rapid Feed Rate	20m/min
Three Axis Max. Cutting Feed Rate	1-8m/min
Automatic Tool Changer
Capacity of tools	Chain Type 32PCS
Max. Tool Length	350mm
Max. Tool Weigth	15kg
Max. Tool Dia. /Next Pocket Empty	127mm/228mm
Machine Accuracy
Positioning Accuracy	± 0.005mm/300mm
Repeat Positioning Accuracy	± 0.005mm
Others
Approximate Weight	23000kg
Floor Space	6000× 4100× 4000mm
Power Voltage	380V 50Hz± 10%
Air presure	≥ 6.5kg/cm2

Tengzhou Good CNC Machine Co., Ltd., is a professional CNC machine manufacturer. We have obtained ISO9001 certificate and also we are strategic partner of minim(Taiwan) techonology Co., Ltd.

Our company contains miller, CNC milling, OEM three departments. For many years, we have devoted ourself into the R&D of CNC milling and machine center. Some key parts of our machines are import from Taiwan or other countries. Our CNC machine vmc1060g\vmc850g\vmc650g\vmc550g linear guide way\ vmc550\xh400\m01, m2\m03, m04 linear guide way are popular in China and abroad.

We have set up long term cooperation relationship with decades of suppliers and R&D centers in China. Our self-developed m-series mini CNC milling machine and machine center have achived good reputation in many countries.

We will keep up the theme of "providing excellent machines and offering perfect services and after-sales services". We will insist "customer-oriented marketing" policy. We welcome all customers to visit us and create benefits together.
