Small CNC Machine Tools

Name: Small CNC Machine Tools
Brand: China-Manufacturer-Directory.com
SKU: 700655165
Availability: InStock
Rating: 5 (51 reviews)

Supplier:	Tengzhou City Good CNC Machine Co., Ltd.
Price:	US $ 1-100000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Unit:	Taiwan High Speed Unit Bt30
Atc Or Not:	Taiwan Tool Changer 6 Tools
Guide Ways:	Taiwan Linear Guide Ways
Axes:	3 Axes
CNC System:	Be Suggest China Brand
Sheet Metal Cover:	Full Closed Cover
Work Table Size:	690mmx210mm
X/Y/Z Axis Travel:	330mm/220mm/320mm
Motor:	2.2kw
Others:	According Clients Requirements
Controlling Mode:	CNC
Precision:	High Precision
Type:	Middle and Small Machine Tool
Automatic Grade:	Automatic

Product Description

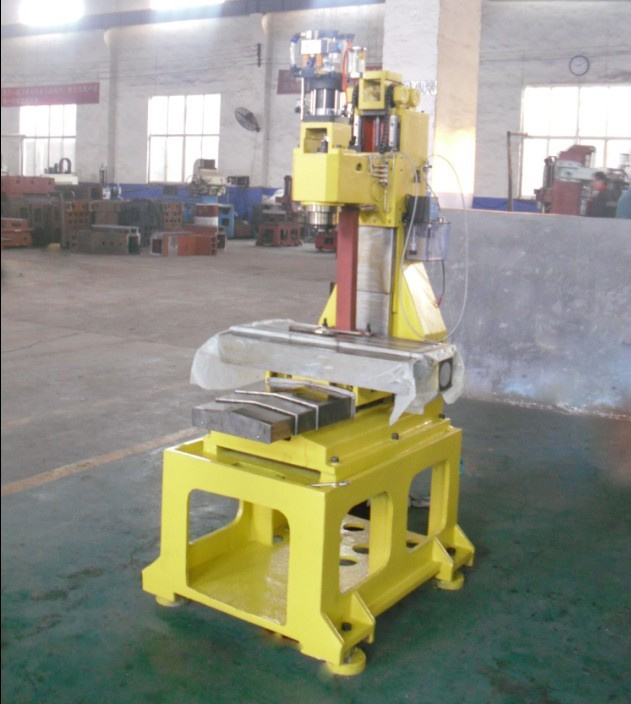

VMC330L mini CNC Milling Machine
NO. ITEM Specification
1 Table size L(mm)× W(mm) 690× 210
2 T slot QTY /width/center distance(mm) 3-16-63
3 Maximum load(KG) 100
4 X travel (mm) 330
5 Y travel (mm) 220
6 Z travel (mm) 320
7 Spindle nose to table (mm) 90-410
8 Spindle center to column (mm) 280
9 Spindle taper BT30
10 Max. Spindle speed (Rpm) 6000 or 8000
11 Main motor (kW) 2.2
12 Feed motor X torque(N. M) 3.3
Y torque(N. M) 4
Z torque(N. M) 5
Max. Install size X Square 90× 90diameter φ 80
YZ Square 110× 110diameter φ 95
13 Rapid moving speed (m/min. ) 10
14 Cutting speed (mm/min) 1-4000
15 Ball screw (diameter mm/pitch )mm 20/5
16 Linear guide way width( mm) 20
17 Accuracy Positioning accuracy (mm) 0.02
Repeatability accuracy (mm) 0.01
18 Tool changer Funnel type (optional ) BT30 8 or 6
Tool changing time (s) 8
19 Air pressure Mpa 0.6
20 Machine weight (kg) Frame 360
Complete machine 700
21 Machine overall size: Frame 720× 860× 1160
L(mm)× W(mm)× H(mm) Complete machine 1200× 1100× 2000

VMC330L mini machine center linear guide ways
Main Description	Taiwanspindle unit, Taiwan linear guide ways. Complete machine: standard with external hand wheel, tri-color lights, lubrication, coolant system. Complete machine standard with RS232 interface. More style sheet metal cover for your choice
TOOL	Suggested max tool length (BT30):200mm Suggested max tool weight (BT30):5kg Suggested max tool diameter (BT30):16mm
ATC(Automatic Tool Changer)	Standard :funnel type tool changer BT30,6 tools, optional: manipulator tool changer different price.
Controller	Standard: GSK218M or KND1000M2 controller with rigid tapping function. Optional: Siemens 802C control panel with servo motor and servo driver made in China
Motor	When machine is with ATC, spindle motor is servo motor, 2.2 Kw, torque:14Nm When machine is without ATC, spindle motor is frequency motor, 2.2 Kw, torque:14.5Nm X, Y, Z axes are all servo motors.
ACCESSORIES	Complete machine is with standard accessories:1 piece toolholder,1piece pull stud,1 set collects,1 piece spanner,1 piece direct screwdriver,1 piece Philips screwdriver . Optional accessories:1,4 th axis ,2,rotary table note: optional accessories are priced separately
POWER	Please inform power voltage and current, if transformer is needed, price would be different.

Tengzhou Good CNC Machine Co., Ltd., is a professional CNC machine manufacturer. We have obtained ISO9001 certificate and also we are strategic partner of minim(Taiwan) techonology Co., Ltd.

Our company contains miller, CNC milling, OEM three departments. For many years, we have devoted ourself into the R&D of CNC milling and machine center. Some key parts of our machines are import from Taiwan or other countries. Our CNC machine vmc1060g\vmc850g\vmc650g\vmc550g linear guide way\ vmc550\xh400\m01, m2\m03, m04 linear guide way are popular in China and abroad.

We have set up long term cooperation relationship with decades of suppliers and R&D centers in China. Our self-developed m-series mini CNC milling machine and machine center have achived good reputation in many countries.

We will keep up the theme of "providing excellent machines and offering perfect services and after-sales services". We will insist "customer-oriented marketing" policy. We welcome all customers to visit us and create benefits together.
