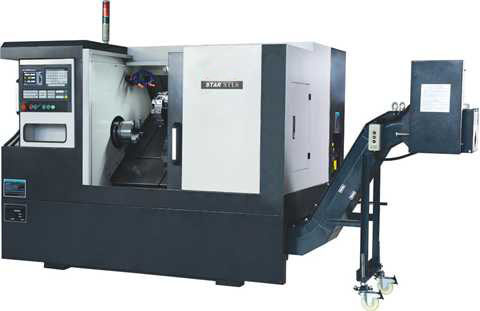

CNC Machine Tools (Star STL6)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Technical specifications | Unit |
|
| Model | N/A | Star STL6 |
| Chuck size | inch | 6'' |
| Max. swing dia. Over bed | mm | 400 |
| Max. length of workpiece | mm | 300 |
| Max. swing dia. Over slide | mm | 200 |
| Spindle bore | mm | 48 |
| Max. bar capacity | mm | 40 |
| Spindle speed | rpm | 3000 |
| Main motor power | kW | 5.5/7.5 |
| X axis stroke | mm | 155 |
| Z axis stroke | mm | 300 |
| X/Z rapid traverse | m/min | 18/20 |
| Turret type | N/A | servo |
| No. of tool stations | N/A | 8 |
| Tool shank size | mm | 20*20 |
| Type of tailstock | N/A | Hydraulic |
| Quill taper | N/A | MT4 |
| Quill stroke | mm | 80 |
| Tailstock stroke | mm | 300 |
| Slant bed degree | N/A | 35 |
| Guideway type | N/A | LM |
| Power capacity | KVA | 13 |
| Overall dimension | mm | 2130X1450X1600 |
| Weight | kg | 2500 |
Standard Features :
Hydraulic 3 jaw chuck
8stations turret
Auto lubrication system
Hydraulic tailstock
| Prod Model: |
Star STL6 |
| Chuck Size: |
6'' |
| Spindle Bore: |
48 |
| Max. Swing Dia. Over Bed: |
200 |
| Spindle Speed: |
3000 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
