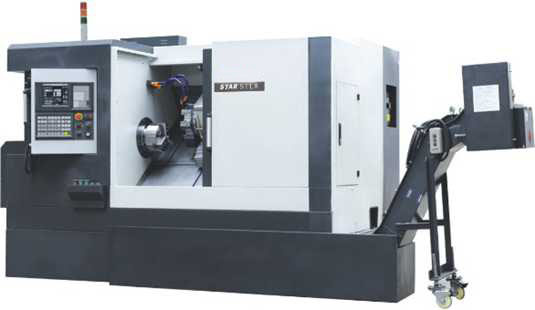

CNC Machine Tools (Star STL8)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Standard Features :
Hydraulic 3 jaw chuck
8stations turret
Auto lubrication system
Hydraulic tailstock
| Technical specifications | Unit |
|
| Model | N/A | Star STL8 |
| Chuck size | inch | 8'' |
| Max. swing dia. Over bed | mm | 420 |
| Max. length of workpiece | mm | 400 |
| Max. swing dia. Over slide | mm | 210 |
| Spindle bore | mm | 62 |
| Max. bar capacity | mm | 52 |
| Spindle speed | rpm | 2000 |
| Main motor power | kW | 7.5/11.0 |
| X axis stroke | mm | 180 |
| Z axis stroke | mm | 400 |
| X/Z rapid traverse | m/min | 15/20 |
| Turret type | N/A | Servo |
| No. of tool stations | N/A | 8 |
| Tool shank size | mm | 25X25 |
| Type of tailstock | N/A | Hydraulic |
| Quill taper | N/A | MT4 |
| Quill stroke | mm | 80 |
| Tailstock stroke | mm | 400 |
| Slant bed degree | N/A | 35° |
| Guideway type | N/A | LM |
| Power capacity | KVA | 15 |
| Overall dimension | mm | 2600X1850X1650 |
| Weight | Kg | 2600 |
| Prod Model: |
Star STL8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chuck Size: |
8'' |
| Max. Swing Dia. Over Bed: |
420 |
| Max. Length Of Workpiece: |
400 |
| Max. Swing Dia. Over Slide: |
210 |
| Main Motor Power: |
7.5/11.0 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
| Processing Precision: |
0.01mm |
