Product Specifications
| Prod Model: |
YCB9-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage (V): |
240/415 |
| Rated Current (a): |
1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40 |
| Rated Frequency(Hz): |
50/60 |
| Dielectric Test Voltage(Kv): |
2.0 |
| Rated Breaking Capacity(a): |
10000 |
| Rated Impulse Withstand Voltage(V): |
6000 |
| Insulation Voltage(V): |
500 |
| Protection Degree: |
IP20 |
| Curve: |
B, C, D |
| Mechanical Life: |
20000 |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Poles Number: |
1p-4p |
Product Description

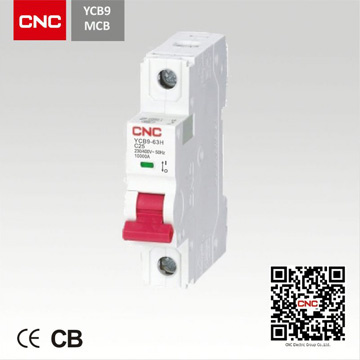

CNC MCB Miniature Circuit Brekaer (YCB9-63)circuit breaker
About CNC
1. China Top 500 Enterprise
2.26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries
Specifications
YCB9-63(H) series mini circuit breaker is suitable in the circuit of AC 50/60Hz, rated voltage 230V/400V, rated current up to 63A for protecting circuit equipment in buildings against over-current and similar installation which have isolating, overload, and short-circuit protection function, and is used for infrequent operation and change.
Circuit breaker is used in industry, commerce, and civil buildings etc.
General
1. Overload protection
2. Short circuit protection
3. Controlling
4. Used in residential building, non-residential building, energy source industry and infrastructure.
Model and Meaning
YC B 9 63 H
1 2 3 4 5
1. Company Mark (CNC)
2. Product Type (Mini Circuit Breaker)
3. Design Code (Product Structure Design Code)
4. Frame Level Rated Current
5. Default: Standard
H: High Breaking (Breaking Capacity 10kA)
Normal Working Condition
1. Working temperature: -25° C~+60° C, At+20° C, humidity shall not be higher than 95%; At+40° C, humidity shall not be more than 50%.
2. Altitude: ≤ 2000m;
3. Installation Type: II, III
4. Installation Method: Embedded Vertical DIN Rail Installation
5. Pollution Degree: 2
CNC Circuit Breaker:
1. We have new designed circuit breaker by our R&D Dpartment.
2. Perfect testing system ensure each product is qualified.
3. Annual output is about 15, 000, 000 Poles.
Our Services
In most time, the buyer need not to pay any customs. Well declare it as a gift and a low value to avoid the tax. But sometimes in some countries, the customs officer is strict. We are not accountable for any customs fee, Please check it out the customs policy at your own place, such as Italy and Holland. If you have to pay thecustoms fees, it is your duty to your own country, the buyer should understand this situation. Buyers are responsible for any insurance. Please contact with us advance if you need.
Packaging & Shipping
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
We mainly use China post air mail / Hong Kong post air mail / Singapore post air mail/DHL/UPS/FedEx/EMS.
China post air mail / Hong Kong post air mail /Singapore post air mail takes about 7-40 days(or more) at usual; DHL/UPS/FedEx takes about 3-7 days at usual; EMS takes about 7-15 days at usual.
Company Information
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
|
Item |
Data |
|
Frame size |
63 |
|
Rated insulation voltage |
500V |
|
Rated impulse withstand voltage |
4kV |
|
Rated frequency |
50Hz/60Hz |
|
Instantaneous tripping type |
B, C, D |
|
Poles |
1P, 2P, 3P, 4P |
|
Rated short circuit breaking capacity |
10kA |
|
Service short circuit breaking capacity |
7.5kA |
|
Mechanical life |
20000 |
|
Electrical life |
8000 |
|
Grid distance |
45mm |
|
Enclosure protection degree |
IP20 |
|
Standard |
IEC60898-1, GB10963.1 |
|
Certification |
CCC/CB |
|
Model |
Rated Current(A) |
Rated Voltage (VAC) |
Rated Short Circuit Capacity(A) |
Overall Dimension(mm) |
|
|
1 |
230/400 |
10000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
|
1 |
230/400 |
10000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
|
1 |
400 |
10000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
|
1 |
400 |
10000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
Specification List Type(YCB9-63)
|
Model |
Rated Current(A) |
Rated Voltage (VAC) |
Rated Short Circuit Capacity(A) |
Overall Dimension(mm) |
|
|
1 |
230/400 |
6000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
|
1 |
230/400 |
6000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
|
1 |
400 |
6000 |
76.2*17.8*85.5 |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
|
1 |
400 |
6000 |
76.2*17.8*85. |
|
2 |
|
3 |
|
4 |
|
6 |
|
10 |
|
16 |
|
20 |
|
25 |
|
32 |
|
40 |
|
50 |
|
63 |
Overcurrent Protection Characteristics
|
Number |
Rated Current Of Trip |
Start State |
Test Current |
Specified Time |
Trip Or Not |
Remark |
|
1 |
1-63 |
cold state |
1.13In |
t≤1h |
not trip |
|
|
2 |
1-63 |
test after the front state |
1.45In |
t<1h |
trip |
Current rises to specified value within 5s Stably. |
|
3 |
In≤32 |
cold state |
2.55In |
1s
|
trip |
|
|
|
In>32 |
cold state |
2.55In |
1s
|
trip |
|
|
4 |
1-63 |
cold state |
3In |
t≤0.1s |
not trip |
B Type |
|
5In |
t<0.1s |
trip |
|
5In |
t≤0.1s |
not trip |
C Type |
|
10In |
t<0.1s |
trip |
|
10In |
t≤0.1s |
not trip |
D Type |
|
14In |
t<0.1s |
trip |
|
Ambient temperature °C |
-30 |
-20 |
-10 |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
|
Current Correction Coefficient |
1.30 |
1.30 |
1.20 |
1.15 |
1.10 |
1.05 |
1.00 |
0.95 |
0.90 |
0.85 |
