Changcheng Electrical Group Zhejiang Technology Co., Ltd. >> CNC MCB Outlet Mini Circuit Breaker (YCBKN)

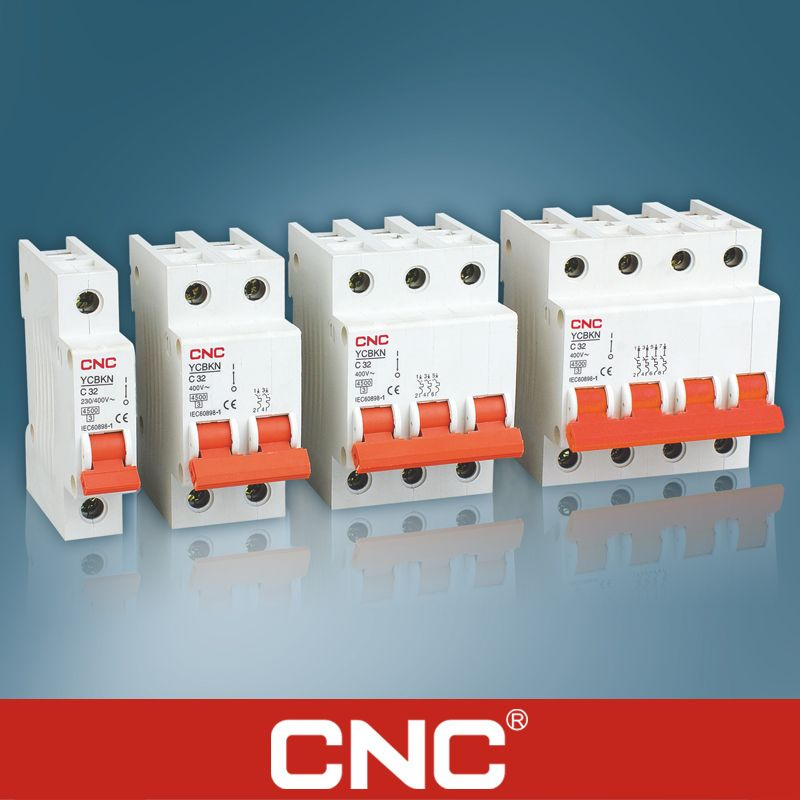

CNC MCB Outlet Mini Circuit Breaker (YCBKN)

Name: CNC MCB Outlet Mini Circuit Breaker (YCBKN)
Brand: china-manufacturer-directory.com
SKU: 682564355
Availability: InStock
Rating: 4.9 (58 reviews)

Supplier:	Changcheng Electrical Group Zhejiang Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	others

Product Specifications

Prod Model:	YCBKN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	Circuit-Breaker Failure Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Certification:	IEC60898

Product Description

YCBKN mini circuit breaker

1. Certificate: CE
2. Standard: IEC60898-1
3. Rated capacity: 3KA, 4.5KA
4. Rated current: 1~63A

Electrical features	Rated current In	A	1.2, 6, 10, 16, 20, 25, 32, 40, 50, 63
	Poles	P	1.2, 3, 4
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	3000, 4500
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Reference temperature for setting of thermal element	° C	30
	Ambient temperature (with daily average≤ 35° C)	° C	-5~+40 (special application please refer to temperature compensation correction)
	Storage temperature	° C	-25~+70
Installation	Terminal connection type		Cable / Pin-type busbar
	Terminal size top/bottom for cable	mm2	25
	Terminal size top/bottom for cable	AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
	Terminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N*m	2
	Tightening torque	In-Ibs.	18
	Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
	Connection		from top or bottom
