CNC Milling Machine Vm1890 CNC Machine Tool
| Price: |
US $ 105000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |

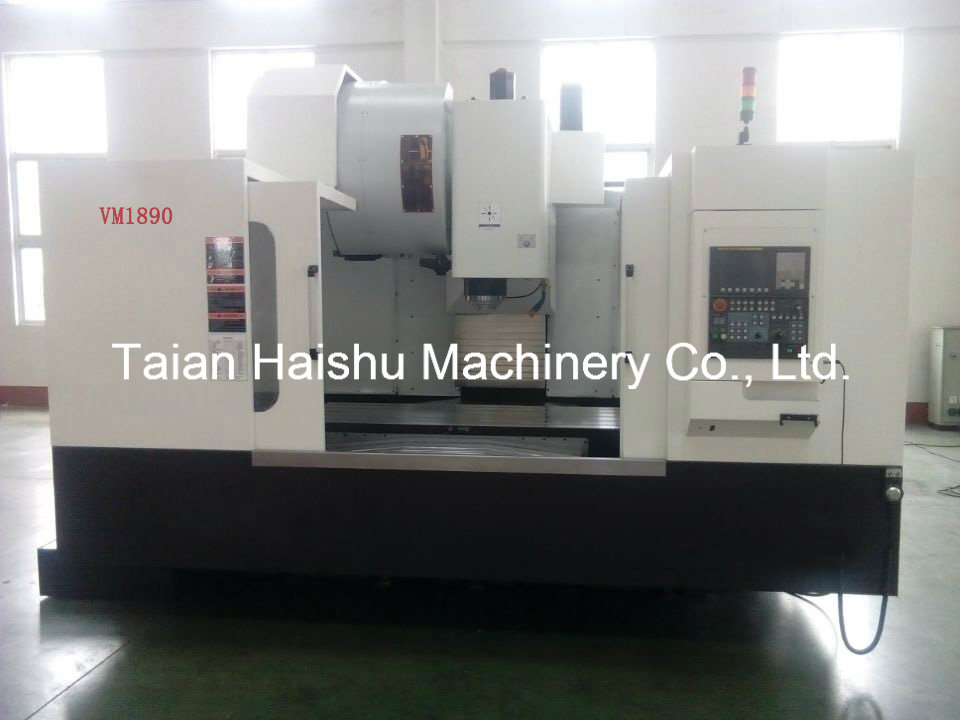

cnc mahcine tool VM1890 cnc milling machine
Main specifications| items | name | unit | number |
Workbench
| Workbench size | mm | 2000×900 |
| T Slots | mm | 5×22 |
| Maximum load bearing | Kg | 1600 |
| travel | Moving range X,Y,Z | mm | 1800×900×700 |
| spindle nose to work table | mm | 160~860 |
| distance between spindle center to column | mm | 960 |
| feed | Fast moving speed
X,Y,Z | m/min | 18,18,15m/min |
Cutting feed speed
X,Y,Z | mm/min | 2.5~10000mm/min |
| spindle | Taper of spindle | | BT50 |
| Spendle speed | r/min | 40~4000rpm |
| Spendle power | kw | 15/18.5 |
Precision
| Positioning accuracy | mm | X:0.032
Y/Z:0.025 |
| Repeat Positioning accuracy | mm | X:0.018
Y/Z:0.015 |
| machine | size | mm | 4600×3600×3300 |
| weight | Kg | 12500 |
Standard configuration:- cnc system: FANUC 0i MD
- Main motor: Japanese FANUC 15/18.5 servo motor;
- Feed motor: Japanese FANUC servo motor
- Spindle: high speed and high precision spindle unit of Taiwan 6000rpm, taper BT50
- Taiwan precision ball screw
- Prevention and protection of stainless steel in the half
If you are interested in cnc mahcine tool VM1890 cnc milling machine, welcome to leave a message or send the inquiry to understand the details of machine.
| Prod Model: |
VM1890 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Workbench Size: |
2000×900mm |
| T Slots: |
5X22mm |
| Maximum Load Bearing: |
1600kg |
| Moving Range X\Y\Z: |
1800X900X700mm |
| Spindle Nose To Work Table: |
160~860mm |
| Taper Of Spindle: |
Bt50 |
| Spendle Speed: |
40~4000rpm |
| Spendle Power: |
15/18.5kw |
| Weight: |
12500kg |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
