Teaching Lathe; Teaching Machine Tool
| Price: |
US $ 2750/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |

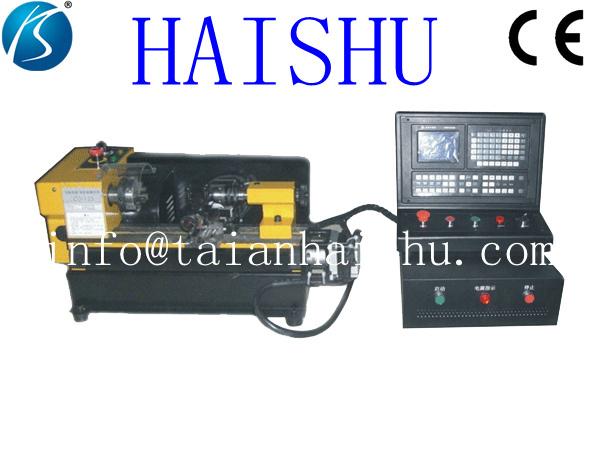

Model CNC6110 mini nachine tool is designed for teaching subject to the teaching enviroment and characteristics.It combines CPU with CNC system small-sized lathe. It enjoys the characteristics of 7-inch colorful lathe. Easy operation, high safety and working enviroment is fit for teaching and leaning. It is used to teach and learn early stage of CNC, It has the characteristics of high efficiency,small size, low consumption. High safety. It is convenient for to do teaching practise , Enable students to master CNC programming and operation.
Model CNC6110 is mainly targeted at small and medium sized machine tool manufacturers demostic and abroad, and has high cost-effectiveness. It combines a number of advanced technologies in one, powerful, reliable, and easy to operate. Products from the appearance, internal structure technology, user interface, functions, having regard to supporting: U disk, network, USB communication, large storage space, built-in PLC, supports the DXF file parsing, such as design.
Max.workpiece swing diameter the bed: 180 mm
Max. workpiece length: 300 mm
Spindle hole diameter: 20 mm
Spindle inner hole taper: Mose: 3
Tailshaft hole taper: Mose:2
Spindle speed range (stepless):
Low:100-1100 RPM ±10%
High: 100-2500 RPM ±10%
Slider cross travel: 65 mm
Thread Processing range: Metric: 0.4-2.0 mm(10 type)
Motor output power:250 W
Voltage: 220V
Overall dimensions: 720x300x290 mm
Net/Gross Weight:37/40 kg
Packing dimensions(L*W*H): 770x330x330 mm
Features: Safety switch, stepless variable speed, four-station turret, overload protection, full-set exchange gear
[Compact lathe]
DIY model best modeling tools. It is a small desktop lathe. It can be used as a simple production and processing tools.
[Modeling tools]
An indispensable modeling tools, especially for processing of copper, aluminum and other materials.
[Applications]:
Particularly suitable for school classrooms Seiko equipment, laboratories, metal parts processing model
| Prod Model: |
CNC6110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max.Workpiece Swing Diameter The Bed: |
Max180 mm |
| Max. Workpiece Length: |
300 mm |
| Spindle Hole Diameter: |
20 mm |
| Spindle Inner Hole Taper: |
Mose: 3 |
| Tailshaft Hole Taper: |
Mose:2 |
| Slider Cross Travel: |
65 mm |
| 1 Spindle Speed Range (Stepless): |
Low:100-1100 Rpm ±10% |
| 2 Spindle Speed Range (Stepless): |
High: 100-2500 Rpm ±10% |
| Thread Processing Range: Metric: |
Metric: 0.4-2.0 mm(10 Typ |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
Taian Haishu Machinery Co., Ltd. is a professional production mechatronic product, collection development, manufacture, sales of high-tech enterprises. Company under the two divisions: One is the CNC machine tools division, the leading product is the "haishu" brand of CNC lathes and machining centers; One is the test equipment division, the leading product is "Taishanhaite" brand common rail test bench and injectoin pump, fuel injector test bench. Founded in March 2001, covers an area of 15000m2, building area of 8000m2, fixed assets 16 million yuan(RMB), has passedISO9001: 2008 international quality management system certification and European CE certification. The company has strong technical force, with a group of young and promising in the machine and test rig design and manufacture, electrical design and application of CNC technology and software development expertise and skills. Advanced 2D and 3D CAD, document management to achieve the PDM. Product innovation, Equipment CNC, Management information, Which has become the industry technology leader.
The company has a Ministry of Internal Trade and the Ministry of Foreign Trade, with independent import and export rights. The products are sold to more than 20 domestic provinces, cities and autonomous regions, and exported to 30 countries including: USA, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Czechoslovakia, Lebanon, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Russia, Belarus, Lithuania, Bahrain, Korea, India, Indonesia, Malaysia, Iran, Thailand, Philippines, Mongolia.
Main products: 1. Horizontal flat bed CNC lathe, 2. Horizontal slant bed CNC lathe, 3. Vertical CNC lathe, 4. CNC turning center, 5. CNC pipe thread lathe, 6. CNC milling machine, 7. CNC machining center, 8. CNC grinding machine.
Characteristic services: Bear machining overall program design and implementation. Include: Site planning, equipment layout, tooling tool provide, processing program design, remote operation monitoring. Machine shop to achieve unmanned.
The company has many years of experience in development and manufacturing of CNC machine tools, "technology innovation, integrity service" as a business philosophy, with new and old customers at home and abroad in close cooperation and common development.
