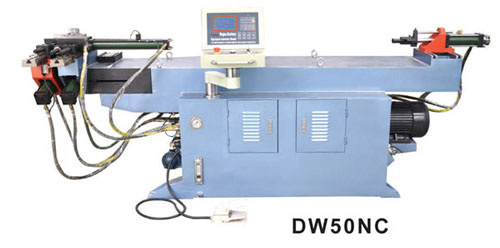

Cold Bending Machine

Name: Cold Bending Machine
Brand: China-Manufacturer-Directory.com
SKU: 739073835
Availability: InStock
Rating: 4.9 (138 reviews)

Supplier:	Zhangjiagang Wanhong Machinery Manufacturing Co., Ltd.
Price:	US $ 6000/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	dw38nc
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Bending Capacity:	38*2.0t
Max Bending Radius:	260mm
Min Bending Radius:	15mm
Max Feeding Length:	1600mm
Max Bending Degree:	190
Control Panel:	PLC*Touch Screen
Bending Accuract:	+/-0.15
Hydraulic Systen Motor:	4kw

Product Description

Specifications
Nc bending machine
1 Microcomputer control
2 High-accuracy bending
3 Stable hydra
Single-axle hydraulic metal pipe bender
1. Using touch screen plus CNC module, add NC modules, dialogue process, the program setting easy.
2. A solid bed structure, not easily deformed.
3. Each file can be set bend angle 9, the memory can store 60 groups of files.
4. All slow positioning, repeat accuracy of up to 0.1.
5. Error messages displayed on the screen to help the operator to immediately ruled out

Technical parameters	Unit	Data(Model: DW38NC)	Remarks
Max bending capability	mm	Φ38×2	bending radius could be made to order according the customer's special requirement.
Maximum bending radius	mm	R260
Minimum bend radius	mm	R15
Maximum bending angle	degree	190
Standard core length to wear	mm	1600	The length over mandrel could be made to order according the customer's special requirement
control type		CNC
Bend pipe quantity	Unit	16
Store Part Number	Unit	16×16
hydraulic motor power	KW	4
System hydraulic pressure	Mpa	12
Fuel tank capacity	L	110
Size	mm	2600×600X1000

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
