Product Specifications

Prod Model: WBR-1000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Interface: Ttl
Decoder: F2f
Operation Speed: 15-120 Cm/Sec (6-50inch/Sec)
Head Life: at Least 500,000 Times
Card Standard: ISO 7811/2
Card Thickness: 0.76 ± 0.08 Mm
Track Width: 1.5mm
Recording Density: 210 Bpi, 75 Bpi, 210 Bpi
Voltage: 3.0~5.5V DC
Track Location: ISO1 (Iata), ISO2 (ABA), ISO3 (Mints)
Certification: CCC

Product Description

WBE manufacture magnetic card reader and writer module with variety size

1. Overview

WBR-1000 series is a set of manual swipe type modules that read magnetically encoded data from magnetic stripes that
conform to ISO standards and decode them to CLS, RCL and RDT

2.Features

2.1 3-Dimensional Head Mounting Design achieves Optimal Adhesion with Minimal Wear.
2.2 Universal Head Mounting makes Switching between Tracks Quick and Easy.
2.3 Spring and steel axis-Action Card Guidance System aids Simple and Compact Structure.
2.4 Custom Ics provide 24% Jitter compensation over a Wide Range of Card Feeding Speeds.
2.5 High Coercive Magnetic Stripe up to 3,500Oe can be read.

3. Enviroment Requirement

Operating Temperature : -10°C ~55°C
Storage Temperature : -30°C ~ 70°C
Vibration  Amplitude : 2mm , 2 G , 10-55Hz/min in x,y,z direction
Shock Resistance : Up to 30 G, 11 msec
Input Current : 25mA
Output Current : Less than 7mA

4.Specifications

Function
InterfaceTTL
DecoderF/2F
Operation speed 15-120 cm/sec (6-50inch/sec)
Operation placeIndoor
Identify efficiencyAbove 99.5%
Error rateLess than 0.5%(JSE test card)
Recording density210 BPI 75 BPI 210 BPI
Card
Card standardISO 7811/2
TrackI(IATA), II (ABA), III (MINTS)
Track locationISO1 (IATA), ISO2 (ABA), ISO3 (MINTS)
Card thickness0.76 ± 0.08 mm
Track width 1.5mm
Head lifeAt least 500,000 times
Power
Voltage 3.0~5.5V DC
CurrentLess than 2.0mA (Single Track), 5mA (Dual Track), 7mA (Triple Track)/5V
FluctuationLess than 50mVp-p
Environment
Operate temperature and humidity -10°C~50°C,  20~90% RH
Storage temperature and humidity -30°C~70°C, Less than 95% RH
Physical characteristics
WeightApprox. 45g


Model Table


MODEL
DIMENSION (mm)ISO TRACKS
W*L*HSINGLEDUALTRIPLE
IIIIIII & IIII & IIII & II & II
WBR-150016*43*22.5151015201530155015601570
WBR-140024*90*24141014201430145014601470
WBR-120021*90*24121012201230125012601270
WBR-1A0023*43*231A101A201A301A501A601A70


Application:

POS terminal
Access control
Time attendance
Membership system

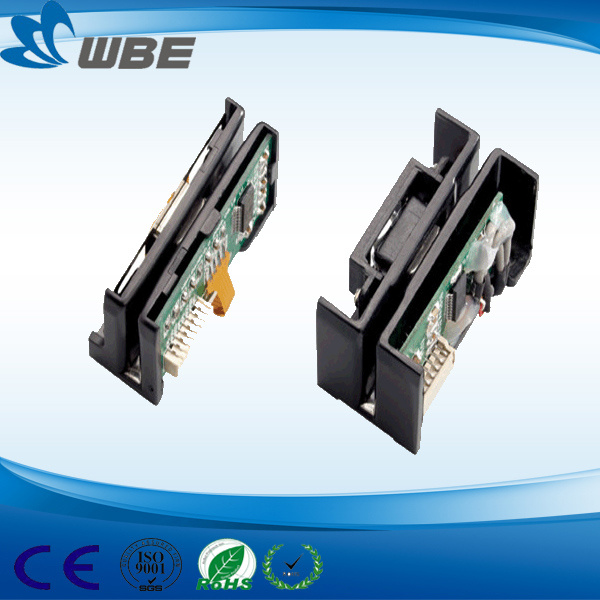

Picture Presentation:
