Lo-Co and Hi-Co Magnetic Encoder with Manetic Card Reader and Writer Function
Product Specifications
| Prod Model: |
WBTH-2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
RS232/USB |
| Operation Speed: |
10-150 Cm/Sec, Read; 10-100cm/Sec, Write |
| Track Width: |
1.5mm |
| Head Life: |
at Least 500,000 Times |
| Card Standard: |
ISO 7811/2 |
| Track: |
I(Iata), II (ABA), III (Mints) |
| Track Location: |
ISO1 (Iata), ISO2 (ABA), ISO3 (Mints) |
| Recording Density: |
210 Bpi, 75 Bpi, 210 Bpi |
| Record Character: |
79, 40, 107 |
| Dimension: |
65mm(W) X 215mm(L) X 61mm(H) |
Product Description
WBE manufacture magnetic encoder with manetic card reader and writer functionFeatures: | Low power consumption |
| Compact design |
| Hi-co, Lo-co read/write |
| Support magnetic card |
| Single track/Dual track/Triple track read/write |
| Customized interface |
Specifications: | Function |
| Interface | RS232/USB |
| Operation speed | 10-150 cm/sec, Read; 10-100CM/SEC, Write |
| Error rate | Less than 0.5%(JSE test card) |
| Operation place | Indoor |
| Track width | 1.5mm |
| Head life | At least 500,000 times |
| Identify efficiency | Above 99.5% |
| Card |
| Card standard | ISO 7811/2 |
| Track | I(IATA), II (ABA), III (MINTS) |
| Track location | ISO1 (IATA), ISO2 (ABA), ISO3 (MINTS) |
| Recording density | 210 BPI, 75 BPI, 210 BPI |
| Record character | 79, 40, 107 |
| Card thickness | 0.76 ± 0.08 mm |
| Track width | 1.5mm |
| Power |
| Voltage | +5 V DC ± 5% |
| Current | Read: <100mA; Write: <100mA (Lo-co), <700mA (2750oe, dual tracks), |
| <2.0A (4000oe, triple tracks) |
| Environment |
| Operate temperature and humidity | -10°C~50°C, 20~90% RH |
| Storage temperature and humidity | -30°C~70°C, Less than 95% RH |
| Physical characteristics |
| Dimension | 65mm(W) x 215mm(L) x 61mm(H) |
| Weight | Approx. 1~1.5kg |
Model Table of WBTH-2000 magnetic card reader and writer:
MODEL | DIMENSION (mm) | ISO TRACKS | INTERFACE |
| W*L*H | DUAL | TRIPLE |
| I & II | II & III | I & II & II |
| WBTH-21X0 | 65*215*61 | 2150 | 2160 | 2170 | RS-232 |
| WBTH-21X2 | 2152 | 2162 | 2172 | USB |
Applications: | POS terminal |
| Access control |
| Time attendance |
| Membership system |
Our magnetic encoder WBTH-2000 can support magnetic card reader and writer function,have been widely used in the bank system.

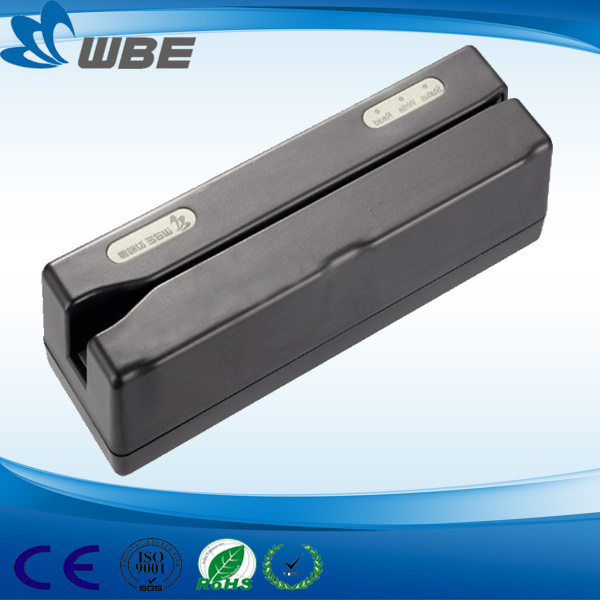

Picture Presentation:
Shenzhen World Bridge Electronics Co., Ltd (WBE for short) established in 2000, is a High-Tech Enterprise professionally engaged in the research, manufacturing, marketing, distribution of magnetic/IC/RF card reader writer devices, card dispenser, kiosk printer and cash modules.
WBE products are widely applied in many fields, like Finance, Telecom, Security, Self-service Terminal, Parking, Petrolium, Gaming and Tax systems as well as the government digitalization projects for the large and medium-sized cities in China.
For instance, our card readers and mini printers have won the bid in the Agricultural Bank of China and China Mobile project and been widely used in the markets now.
WBE follows the strategy of sustainable development since from establishment, to pass the annual verification and get the certificate of ISO9001: 2000 quality management system to ensure products quality and enhance the products to be competitive in the market.
With the development of the company, we have established three business groups: Card reader Group / Printer Group / Cash module Group. The domestic business now covers most main cities and regions of China likeBeijing, Shanghai, Guangdong etc, in order to further firm and develop overseas markets, WBE show at the 19th CARTES Exhibition in France in November, 2005, and attend the expo each year after that, which greatly improves the company's brand popularity in overseas. Now we have developed the South Korea / Singaporeand other Asian markets as well as the UK / France / Germany and other European markets.
Company insist to" Market-oriented, R&D as the leading, Technology-based" policy, in line with "Based on talent, Oriented by marketing, Guarantee with quality, Focus on service " business principles, and constantly introduce advanced management ideas and experience for the product upgrade, to develop the products market demand of different customers requirements with high cost performance.
