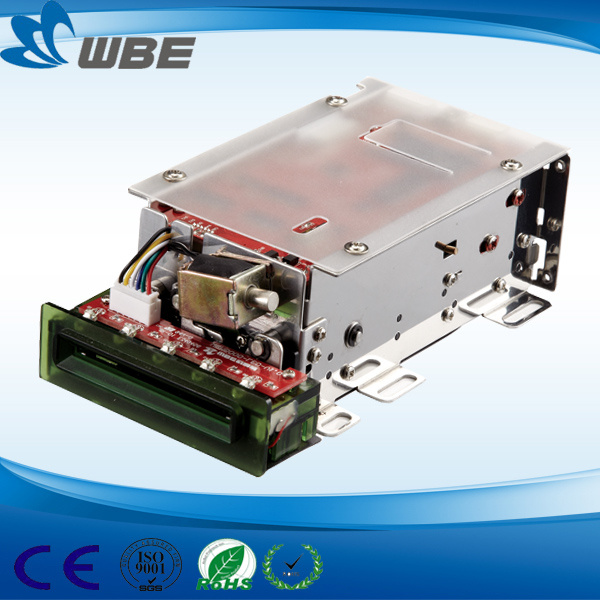

Wbe Manufacture EMV Card Reader with Magnetic/IC/RFID Card Read and Write Function (WBM-5000)
Product Specifications
| Prod Model: |
WBM-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Cassette Life: |
>500, 000 Times (Valid Insertion) |
| Interface: |
RS232 |
| Baud Rate: |
9600(Default)~115200 BPS |
| Card Box Capacity: |
185PCS/0.76mm Standard Card |
| Card Quantity Alarm: |
7~50PCS |
| Card Feeding Speed: |
470mm/Sec |
| Magnetic Card (Read Only): |
ISO7810 ID-1, 7811/1/2/3/4/5/6 |
| IC Card Processing Circuit: |
EMV Standard |
| Card Dimension: |
55*86mm |
| Dimension: |
215mm(L)*65mm(W)*61mm(H) |
| Type: |
Data Collector |
| Queue System Type: |
Information Release |
| Data Collector Type: |
Batch Data Acquisition |
| Certification: |
EMV |
Product Description
WBE manufacture EMV card reader with Magnetic/IC/RFID card read and write function(WBM-5000)Features: | EMV approval |
| Magnetic card reader only, IC/RF card read & write, SIM card function |
| Power off quit card function, front and back swallow and spit card |
| Modular structure, easy to disassemble, easy maintenance |
| Precision run card channel |
Specifications: | Function | |
| Cassette life | >100,000 times (valid insertion) |
| Interface | RS232/USB |
| Baud rage | 9600(default)~115200 BPS |
| Life time | Belt, 700,000 cycles |
| Gear, 700,000 cycles |
| Head, 1,000,000 times min |
| IC card contact, 300,000 times min |
| Actuator, 500,000 times min |
| Card box capacity | 185pcs/0.76mm standard card |
| Card collection box capacity | 38pcs±2pcs(0.76mm standard card) |
| Card quantity alarm | 7~50pcs±2pcs |
| Card feeding speed | 470mm/sec±20% |
| Card | |
| IC card (read/write) | ISO7816-2, ATMEL, SIEMENS, CPU card: t=0 & t=1 |
| Magnetic card (read only) | ISO7810 ID-1,7811/1/2/3/4/5/6 |
| RF card (read/write) | ISO14443-A |
| Card dimension | 55*86mm |
| IC card processing circuit | EMV standard |
| Electrical performance and protocol | EMV standard |
| Magnetic card misread rate | ≤0.2%(Standard magnetic card, strong magnetic card) |
| Power | |
| Input voltage | 12VDC ±5% |
| Current | Entering card<400mA, Reverse motor operation<1A |
| Environment | |
| Temperature | Operation: 5°C~ 50°C; Storage: -20°C~ 70°C |
| Humidity | Operation: 0%~ 90% RH; Storage: 0% ~ 95% RH |
| Physical characteristic | |
| Dimension | 215mm(L)×65mm(W)×61mm(H) |
Applications: | Finance system |
| Communication system |
| Telecom system |
| Medical system |
| Tax system |
Motorized card reader WBM5000 series have been through the EMV test,and have been sidely used in the kiosks.
Picture Presentation:
Shenzhen World Bridge Electronics Co., Ltd (WBE for short) established in 2000, is a High-Tech Enterprise professionally engaged in the research, manufacturing, marketing, distribution of magnetic/IC/RF card reader writer devices, card dispenser, kiosk printer and cash modules.
WBE products are widely applied in many fields, like Finance, Telecom, Security, Self-service Terminal, Parking, Petrolium, Gaming and Tax systems as well as the government digitalization projects for the large and medium-sized cities in China.
For instance, our card readers and mini printers have won the bid in the Agricultural Bank of China and China Mobile project and been widely used in the markets now.
WBE follows the strategy of sustainable development since from establishment, to pass the annual verification and get the certificate of ISO9001: 2000 quality management system to ensure products quality and enhance the products to be competitive in the market.
With the development of the company, we have established three business groups: Card reader Group / Printer Group / Cash module Group. The domestic business now covers most main cities and regions of China likeBeijing, Shanghai, Guangdong etc, in order to further firm and develop overseas markets, WBE show at the 19th CARTES Exhibition in France in November, 2005, and attend the expo each year after that, which greatly improves the company's brand popularity in overseas. Now we have developed the South Korea / Singaporeand other Asian markets as well as the UK / France / Germany and other European markets.
Company insist to" Market-oriented, R&D as the leading, Technology-based" policy, in line with "Based on talent, Oriented by marketing, Guarantee with quality, Focus on service " business principles, and constantly introduce advanced management ideas and experience for the product upgrade, to develop the products market demand of different customers requirements with high cost performance.
