Shenzhen World Bridge Electronics Co., Ltd. >> Wbe Manufacture Magentic Card Reader and Writer (WBTH-2000)

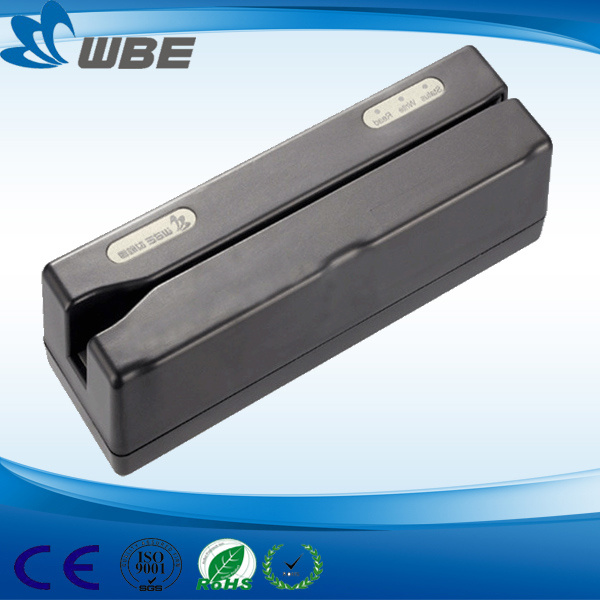

Wbe Manufacture Magentic Card Reader and Writer (WBTH-2000)

Wbe Manufacture Magentic Card Reader and Writer (WBTH-2000)
Supplier: Shenzhen World Bridge Electronics Co., Ltd.
Price: US $ 165/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: EXW
contact supplier

Product Specifications

Prod Model: WBTH-2000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Interface: RS232/USB
Operation Speed: 10-150 Cm/Sec, Read; 10-100cm/Sec, Write
Track Width: 1.5mm
Head Life: at Least 500,000 Times
Card Standard: ISO7811/7812
Dimension: 65mm(W) X 215mm(L) X 61mm(H)
Certification: CE

Product Description

Features:



 Low power consumption
 Compact design
 Hi-co, Lo-co read/write
 Support magnetic card
 Single track/Dual track/Triple track read/write
 Customized interface



Specifications:



Function
InterfaceRS232/USB
Operation speed 10-150 cm/sec, Read;  10-100CM/SEC, Write
Error rateLess than 0.5%(JSE test card)
Operation placeIndoor
Track width1.5mm
Head lifeAt least 500,000 times
Identify efficiencyAbove 99.5%
Card
Card standardISO 7811/2
TrackI(IATA), II (ABA), III (MINTS)
Track locationISO1 (IATA), ISO2 (ABA), ISO3 (MINTS)
Recording density210 BPI, 75 BPI, 210 BPI
Record character79, 40, 107
Card thickness0.76 ± 0.08 mm
Track width 1.5mm
Power
Voltage  +5 V DC   ± 5%
CurrentRead: <100mA;  Write: <100mA (Lo-co), <700mA (2750oe, dual tracks),
<2.0A (4000oe, triple tracks)
Environment
Operate temperature and humidity -10°C~50°C,  20~90% RH
Storage temperature and humidity -30°C~70°C, Less than 95% RH
Physical characteristics
Dimension65mm(W) x 215mm(L) x 61mm(H)
WeightApprox. 1~1.5kg



Model Table of WBTH-2000 magnetic card reader and writer:



MODELDIMENSION (mm)                  ISO TRACKSINTERFACE
W*L*H       DUAL       TRIPLE
I & II     II & IIII & II & II
WBTH-21X065*215*61215021602170RS-232
WBTH-21X2215221622172USB

Applications:



 POS terminal
 Access control
 Time attendance
 Membership system



Picture presentation:

Shenzhen World Bridge Electronics Co., Ltd (WBE for short) established in 2000, is a High-Tech Enterprise professionally engaged in the research, manufacturing, marketing, distribution of magnetic/IC/RF card reader writer devices, card dispenser, kiosk printer and cash modules.

WBE products are widely applied in many fields, like Finance, Telecom, Security, Self-service Terminal, Parking, Petrolium, Gaming and Tax systems as well as the government digitalization projects for the large and medium-sized cities in China.

For instance, our card readers and mini printers have won the bid in the Agricultural Bank of China and China Mobile project and been widely used in the markets now.

WBE follows the strategy of sustainable development since from establishment, to pass the annual verification and get the certificate of ISO9001: 2000 quality management system to ensure products quality and enhance the products to be competitive in the market.

With the development of the company, we have established three business groups: Card reader Group / Printer Group / Cash module Group. The domestic business now covers most main cities and regions of China likeBeijing, Shanghai, Guangdong etc, in order to further firm and develop overseas markets, WBE show at the 19th CARTES Exhibition in France in November, 2005, and attend the expo each year after that, which greatly improves the company's brand popularity in overseas. Now we have developed the South Korea / Singaporeand other Asian markets as well as the UK / France / Germany and other European markets.

Company insist to" Market-oriented, R&D as the leading, Technology-based" policy, in line with "Based on talent, Oriented by marketing, Guarantee with quality, Focus on service " business principles, and constantly introduce advanced management ideas and experience for the product upgrade, to develop the products market demand of different customers requirements with high cost performance.
