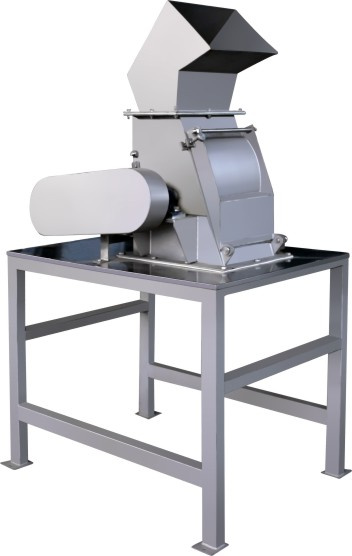

Cpj Model Hammer Type Crushing Machine

Product Specifications

Prod Model:	CPJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	Stainless Steel304
Mechanization:	Automatically
Size:	1050*750*1700
Type:	Hammer Crusher
Drive:	Electric
Crushing Degree:	Fine Grinding Machine
Crushing Style:	Grinding and Impact
Principle:	Fixed Culling
Cutter Material:	High-Speed Steel
Finished Surface:	Outer Surface Process
Compressive Strength (',For Crushing):	>300MPA
Tongs' Features:	Adjustable Tongs
Object:	Fruit

Product Description

Summary:
The machine for grinding fruit,vegetable into pieces by group of knife with powerful crushing function,and high efficiency by quick speed and strong impact strength.
 It isspecial used for hard and big fruit and vegetable,such as pineapple,pumpkin,watermelon,guava etc
also could work for ice cube,vegetable waste etc material.
 .
Specifications:
With  different capacity for choose,high production capacity and wide application range

The machine composed by inlet hopper,outlet hopper,motor,group cutter and stator etc part.when running the equipment,fruit feed from above inlet by manpower or elevator,and then material process by high speed running knife to get crushed.then broken fruit or vegetable discharge from bottom hopper,collected for next step process
to grind fruit or vegetable into pieces,specially used in food line,with rotor rotate by stator and cut material into small cake

Fruit Crusher:
- Automatic Grade: complete automation
- Crushing Speed: 980r/Min
- Max Crushing Capacity: 1-2T/h for fruit or vegetable  \


Model	CPJ-2
Scope of Application	pineapple watermelon etc
Inlet Hopper(MM)	400*400mm(by custom)
Outlet Hopper(MM)	360*320mm(by custom)
Product Weight (kgs)	Max 2T/h for feed
Particle size after cracking(MM)	5-8mm
Power Supply	3kw
Machine Dimension(MM)	1000x600x1500mm
Weight(KG)	300kgs
