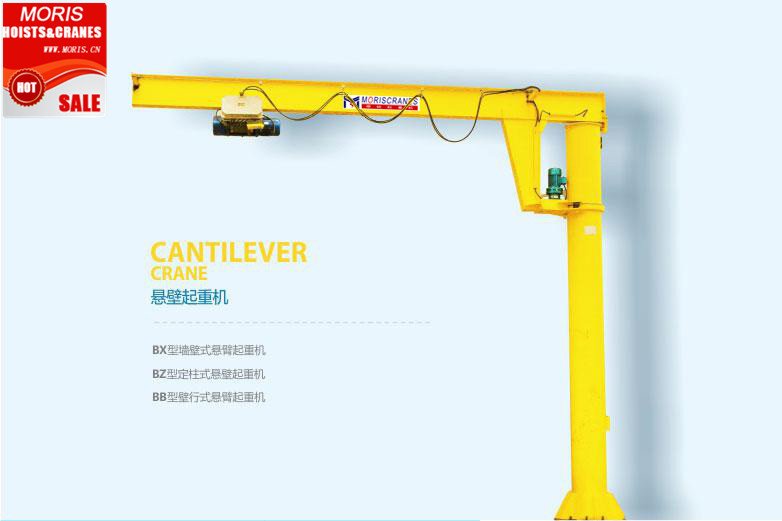

Free Standing 360 Degree up to 10 Ton Column Mounted Jib Crane
Product Specifications
| Prod Model: |
BX/BZ/BB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Loading Capacity: |
0.06~10 Ton |
| Max. Lifting Height: |
25m |
| Brand Name: |
Moris |
| Warranty: |
One Year |
| Type: |
Small Crane |
| Application: |
Mineral Area Usage |
| Power Source: |
Electric |
| Sling Type: |
Chain |
| Certification: |
CE |
| Condition: |
New |
Product Description
Feature Description of Jib CraneJIB cranes are ideal for low-cost lifting and handling goods effectively within a plant.It can be mounted to your facility floor, foundation, column, pillar or wall to accommodate any space constraints or work plans.Our Jib Cranes offer an extensive range of installation options and capacities, with the power to create the best material handling solution with maximum space utilization.Classification of Jib CraneFree standing jib crane; Wall mounted jib crane; Wall traveling jib crane; Articulating jib crane,etc.About Free Standing Jib Crane:Free standing jib cranes have a load capacity from 0.5t to 5t.It is useful where overhead hoists are neither practical nor feasible.This machine utilizes 300 degree floor coverage, allowing unrestricted placement of machinery and equipment.Free Standing column Jib CraneThese offer 270 Degree Rotation and they mount easily to any substantial structural steel building column, at any desired height.1. Duty group: Class C (intermediate)2. Lifting capacity: 0.06-10t3. Valid radius: 4-5.5m4. Slewing speed: 20 r/min5. Hoisting speed: 8/0.8m/min6.Circulate speed: 20 m/min
Wall Mounted Jib CraneThese mount easily to any substantial structural steel building column, at any desired height. The crane has a structural steel finish, in highly visible yellow enamel.1. Duty group: Class C (intermediate)2. Lifting capacity: 0.06-10t3. Lifting height: 5-6m4. Valid radius: 4-5m5. Lifting speed: 8/0.8m/min6. Circulate speed: 20m/min
Wall Traveling Jib CraneThese are useful where overhead cranes are not practical or feasible. They offer 360 degree floor coverage, allowing unrestricted placement of machinery and equipment.1. Duty group: Class C (intermediate)2. Lifting height: 6-25m3.Max validity cantilever: 5-30m4. Min validity cantilever:1.0-3.5m5. Lifting capacity: 0.5-10 ton
Jib Cranes Application.1. The most common applications for jibs are individual workstations; machine tools, welding/fabrication stations, and some small assembly stations.2. They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.3. Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts.4. If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution..Jib Crane Safety Featurescranes.1. Overload protection device2. Top quality long time bearing polyurethane materials buffer3. Crane traveling limit switch4. Voltage lower protection function5. Emergency stop system6. Lifting height limit deviceSimple installation Wall mounted jib cranes can be mounted on wall, no special floor space required. And pillar mounted jib cranes only need a minimum of space for the pillar. It can be fastened to foundations with cast-in anchor bolts, with the help of intermediate plates, with heavy-duty anchor bolts, with dowel pins, etc. If required, anchorages and templates can also be supplied as extras..Shorten loading time, improve work efficiencyWith a jib crane, workers can lift, quickly transport and precisely deposit all kinds of work pieces at any time. In this way, the company can save the cost on traveling cranes or fork, and improve the work efficiency mostly. Using a jib crane, you can considerably reduce the set-up and non-productive times of your work..Easy handling, lighten laboring workWith our outstanding hoisting units: VL electric chain hoist or VT electric wire rope hoist or BH electric belt hoist, etc, you can position your load quickly and precisely. It is also very important that our jib cranes can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handling heavy or unwieldy parts is considerably reduced..High quality with good price Serial production of our hoisting units and jib cranes, ending with full load factory testing of every part, certifies the functionality and quality to customers. We will offer you the most adequate equipments for your needs through good communication. Models| Capacity(t) | 0.5 | 1 | 2 |
| Lifting Height(m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 4 | 4.5 | 5 |
| Radius(m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 |
| Work Duty | A3 |
| Lifting Speed | Low speed(m/min) | 0.8 |
| Normal speed(m/min) | 8 |
| Travel Speed(m/min) | 20 |
| Slewing Speed(m/min) | 0.7 |
| Slewing Angle | 180°,270°,360°,any |
| Max.jib length(m) | 4.59 | 5.09 | 5.59 | 4.61 | 5.11 | 5.61 | 4.626 | 5.126 | 5.626 |
This is Longma
- Based in Jingjiang City in Jiangsu Province.
- company have established Since 1958.
- One of the leading suppliers in China.
- Annual manufacturing capacity is around 15, 000 hoists and 500 cranes.
- Product range include electric hoists, industrial cranes, metallurgy cranes and gantry cranes
- Around 600 employees.
- 100, 000 square meter production site in Jingjiang City.
- Customers include Volvo, XCMG, SAIC Group, Sha Steel, among others.
Vision
To become the most competative enterprise in the MID-range electric hoist and crane markets in China.
Mission
To excel in the Chinese market by providing an extensive range of safe and high quality hoist and crane products combined with outstanding customer service.
Core values
Respect: Respect employees, customers, suppliers and partners, and form a strong basis for common trust.
Integrity: To keep the integrity of each person through sincere and open communication and by this create transparency.
Innovation: Be an innovative market leader, providing advanced technology, continuously improving and broadening our product offering, and offering qualified services.
Harmony: By actively fulfill our social and environmental responsibilities.
Positioning
We offer our hoist customers stable quality, excellent performance/price ratio, continuous improvement, the best service and trustworthy customer relationships.
We offer our crane customers a dependable product, versatile specifications and minimized downtime.
