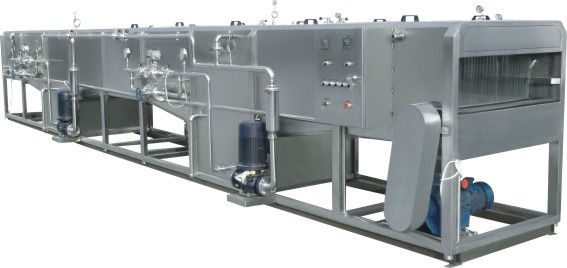

Pls Continuous Type Spraying Sterilizing and Cooling Machine

Product Specifications

Prod Model:	pls
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	Stainless Steel304
Mechanization:	Automatically
Delivery Date:	15days
Customized:	Customized
Application:	Beverage

Product Description

Summary:
Continuous spraying sterilizer is designed and made on the basis of absorbing and digesting abroad machine.It adopts warm water to preheat,sterilize will recycling hot water,recycling warm water to pre-cool,and cooling water to cool,it is with the advantages of sterilizing temperature automatic control,and adjustable sterilizing time,and can be widely used in sterilizing and cooling of juice and beverage in various bottles and cans,electrolyte beverage,wine and condiments.It can be design and made to the sterilization conditions and production provided by the customer.

Technical parameters

Name	Model	PLS-1000			PLS-2000		PLS-3000	PLS-5000
The hingest sterilizing temperature		100
The width of sterilization transferring belt		1500mm
Transferring belt speed		110-553mm/min(stepless speed)
Heating steam pressure		0.4MPa
Length of sterilization step(mm)		9000		16000		22000		320000
Length of pre cooling step(mm)		1200		1600		1800		2200
Length of cooling step(mm)		3000		5000		8000		10000
Heating recycling water volume(m3)		21		25		35		50
Power (kw)		9.6		10.6		13.6		16.5
Size (mm)	Length	9880	17880			23800		34880
	Width	2250
	Height	1735
