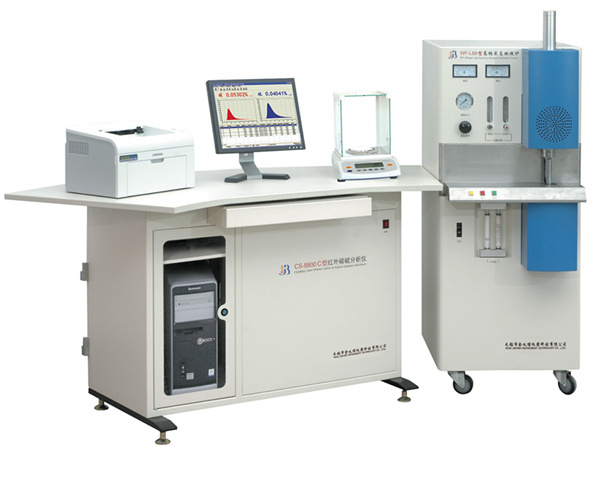

CS-8800c Type High-Frequency Infrared Carbon&Sulphur Analysis Instrument (NEW)

Product Specifications

Prod Model:	CS-8800C
Markets:	Southeast Asia,Africa,Mid East,Eastern Asia
Power Source:	AC220V±5%
Function:	Analysis Content of Carbon&Sulphur
Element:	Carbon&Sulphur

Product Description

Product Description

 Testing the mass fraction of C,S of steel,iron,alloy, cast molding core sand,nonferrous metal,cement,ore,coke,catalyst,magnetic materials,ceramic,inorganic substance,black lead, refractory matter, battery matter,plant and other materials.

Main features


1.Humanized circular arc,stainless steel table-board design, easy to operate.
2.Domestic initiation double carbon and double sulfur pool access to analysis the ultra low and higher content, and automatic switching.
3.CO translates into CO2 device(only domestic owns), improves the degree of accurancy of C.
4.Low tension heating ring(with patent technology) heating in furnace end, which can improve the percent conversion and stabilize the analysis result of S.
5.Infrared detection part and high-frequency furnace are connected by optical(optical pioneer), coordinate with multi-level covert style isolation circuit, which can avoid the high-frequency interference thoroughly.
6.Snap-in type automatic sweeper(with patent) and ultramicropore mental dust filter, reducing the influence of dust to analysis result, easy to dismantle, be in favour of maintain.
7.The apparatus have the multi-language analysis software of Carbon&Sulphur, which owning powerful data statistics function, making the networking operation, data transmission on the internet and number off more easier.

Technical parameter

Analysis principle	It 's detected by high frequency furnace burnt and infrared light absorbing.
Measuring range	Carbon:0.00001%-10.0000%;Sulphur:0.00001%-6.0000%(can extent to 99.9999%)
Analysis deviation	In accordance with the criterion GB/T20123-2006/ISO15350:2000
Analysis accuracy	Carbon:RSD ≤ 0.5%    Sulphur: RSD ≤ 1.0%
Sensitivaty(minimal reading)	0.1ppm
Analysis time	It can regulate range from 20 to 100 seconds(normally set as 35 seconds)
High frequent furnace	Power ≥2.7KVA   Shaking power:20MHz
Electronuc balance	Indefinite quality, indentification to samples and reading accuracy is 0.0001g
Working environment	Indoor temperature:10-30 ºC, relative humidity:less than 75%

Main allocation


 High -frequency Reaction combustion furnace
1. Output power of the high-frequency furnace 2.7KVA; frequency 20MHz.
2. Automatic leak hunting, overtime, overcurrent warning.
3. Current / voltage / power / choice ways to adjust the furnace temperature is suited to samples in different materials.
4. High-precision flow controller can guarantee the stability of the air current.
5. Ultramicropore mental dust filter- 0.4mu, can insure the completely separation between the dust and gas.
6. Low tension heating and constant temperature in furnace end,can improve the percent conversion of S, and stabilize the analysis result of S.
7. Snap-in type burner can clean automatically,reducing the influence of dust to analysis result.
8. High-pressure ash discharge system,can sweep away the dust in the pipeline thoroughly.

Infrared Carbon & Sulfur Analyzer
1. Circuit:The circuit adopts double CPU system, upper and low computer are modular design, low computer uses Atmega162 as control singlechip, the electronic circuit integration degree is high, steady and reliable.
2. Sampling:Adopts high-speed 24 ADS124 sampling chip, fast speed and high precision.
3. Communication:Upper and low computer adopt USB2.0 interface, improve the communication speed greatly.
4. Connection:Infrared detection part and high-frequency furnace are connected by optical (domestic pioneer),coordinate with multilevel covert style isolation circuit,which can avoid the high-frequency interference thoroughly.
5. Power supply:Industrial integration linear module power supply, stable output and trouble-free.
6. Light source:Tailor-made new platinum infrared light source, fever continued, and high efficiency of the spectral characteristics.
7. Analysis pond:Gilded C&S analysis pond and high-precision pyroelectricity infrared detector.
8.Electrical machine:Aviation dedicated synchronous machine,well thermostability,can continue use 100 thousand hours.
9. CO translate into CO2 device(only domestic owns),improves the degree of accurancy of C.

Analysis Software
1.Operational software: Adopt Deliph software compiler, and WINDOWS Xp English operating software.
2. Analysis channel:Provide channel management function,C&S channel can add, delete and edit by itself, no quantitative restriction, preset low carbon and high-sulfur interface,realize the automatic switchover of software.
3. Analysis functions: Analysis procedure dynamic data integral, sampling 24 times/s, improve the sensitivity and accuracy rating of analysis, manage the sample, including edit the name, logo of samples, increase and delete sample name. The software provides multi-user management system, the manager can sset up different user rights.
4. Show function: C and S hold a curve box respectively; show the real-time data and C & S release curve in the analysis process dynamically.
5. Print function: multiple print mode, the two print modes-laboratory and check station are provided, and it can plan print format by itself.
6. Self diagnosis function: System diagnosis, detecting sealing of the furnace head and gas chamber by software.
