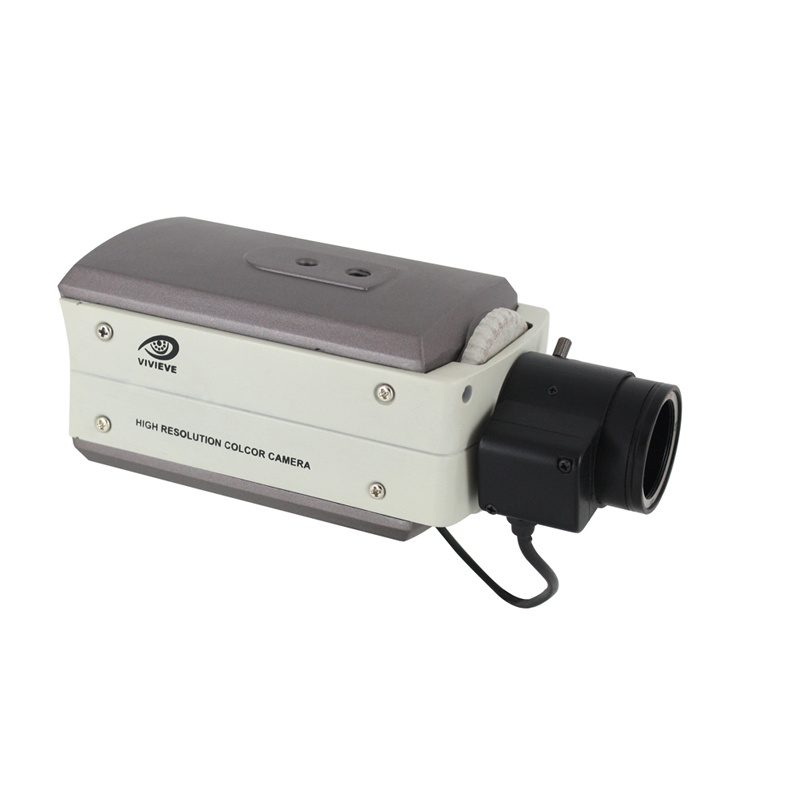

Day/Night Surveillance COLOR High Resolution Box Camera
Product Specifications
| Prod Model: |
VE-6048G/OSD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Effective Pixels: |
PAL: 960*582 NTSC: 967*492 |
| Minimum Illumination: |
0.01 Lux |
| S/N Ratio: |
>50dB |
| Video Output: |
1.0Vp-p 75 ohm BNC |
| Power Supply: |
Dual Power DC12V/AC24V Input |
| Horizontal Resolution: |
600tvl |
| Kind: |
Autofocus Lens |
| Technology: |
Infrared |
| Feature: |
High Definition |
| Style: |
Box Camera |
| Type: |
CCTV Camera |
| Sensor: |
CCD |
Product Description
Main Features:
1.Hi-resolution Video Resolution
2.Day & Night cameras can switch automatically into color or B/W according to optical changes.
3.Digital Wide Dynamic Technology
4.DNR (Digital Noise Reduction) Technology
5.Variable gamma adjustment, there are four different curves optional.
6.Built-in OSD, the user can easily set the camera parameters through menu.
|
Model |
VE-6048G/OSD |
|
Imaging Sensor |
1 / 3" SONY SUPER HAD IICCD |
|
Pixel |
PAL: 752(H)× 582(V); NTSC: 768(H)× 494(V) |
|
Signal System |
PAL/ NTSC |
|
Syn. System |
Internal Synchronization |
|
Shutter speed |
PAL: 1/50~1/100000s; NTSC: 1/60~1/100000s |
|
S/N Ratio |
More than 120dB (WDR ON) |
|
Video Output |
1.0Vp-p, 75 ohms, |
|
Horizontal resolution |
600TVL |
|
Mini. Illumination |
0.01 Lux |
|
White Balance |
ATW/AWB/MANUAL |
|
D/N Switch |
AUTO/DAY/NIGHT |
|
AGC |
OFF/LOW/MIDDLE/HIGH |
|
FREEZE |
ON/OFF |
|
D. ZOOM |
ON/OFF |
|
3D-DNR |
0-5 |
|
D-WDR |
YES |
|
TITLE |
YES |
|
OSD language |
English/Chinese |
|
BRIGHTNESS |
0-90 adjustable |
|
Gamma Correction |
0.05-1 adjustable |
|
Motion Detection Zone |
ON/OFF (4 Zones) |
|
ALARM |
YES |
|
Privacy Zone |
ON/OFF (8 Zones) |
|
Mirror |
OFF/ON |
|
Lens |
Auto IRIS CS Lens |
|
Weather Proof Standar |
IP-65 |
|
Power supply |
DC12V |
|
Power consumption |
200mA |
|
Operation temperature |
-10~+50Celsius |
|
Storage temperature |
-30~+80 Celsius |
MEGAVISION, a professional leading R&D manufactory in CCTV field established in 2002. With more than 300 workers, 4500 square meters workshop and 3 SMT lines. It is currently operating at full capacity, producing 50, 000 units of each CCTV cameras system, DVR monthly. For the quality purposes, we import TI solution, Sony chipsets from USA, Japan, South Korea, Taiwan etc. More than 30 R & D Engineers with the new High advanced Technical products. 10-20 new products released monthly. We not only cooperate with the scientific researching centers of domestic famous universities, but also with USA, Japan and UK.
Product Innovation
Megavision is professional in the design, development and manufacture of video security systems, including high-definition IP Cameras, 4CH, 8CH, 16CH 1080P NVR, HD-SDI DVR and HD-SDI Cameras, New design TI solution DVRs and full HD display products. Megavision are trying our best to develop more and higher advanced Security products for our partners.
Certification
We are regarding good quality and service as the TOP thing above all. We have worked with more than 140 raw material suppliers. Our products have passed ISO9001 quality management system certification, and some international certifications such as UL, CE, FCC. Our products with high credit are sold in Europe, America, Japan as well as Taiwan and are widely used in many fields such as banking, public security, energy resources, intelligent-building and intelligent-transportation.
Marketing Strategy
By integrating the horizontal & vertical markets and government attention& support, China majority of Municipal project of CCTV system are provided by us. We exports an average of 50, 000 CCTV and surveillance products each month. It is currently operating at full capacity, producing 50, 000 units of CCTV cameras, DVR and systems with our two factories. 10-20 new products released monthly. We trust MEGAVISION and our cooperators will grow and get stronger together.
Service system
Perfect service system and deep service consciousness are our guarantee to meet the customers'demands. Megavision had been conducting the training for after sales servicers through the kinds of regular training. The qualified and experienced service experts provide the quickest and 24H best services to you.
Megavision also provides service with customized features (OEM) and offers professional security and surveillance system solutions to meet various customers'demands.
Our Goals
Megavision is dedicated and aiming to be one of the best CCTV camera producers in China. To be your best CCTV partner.
