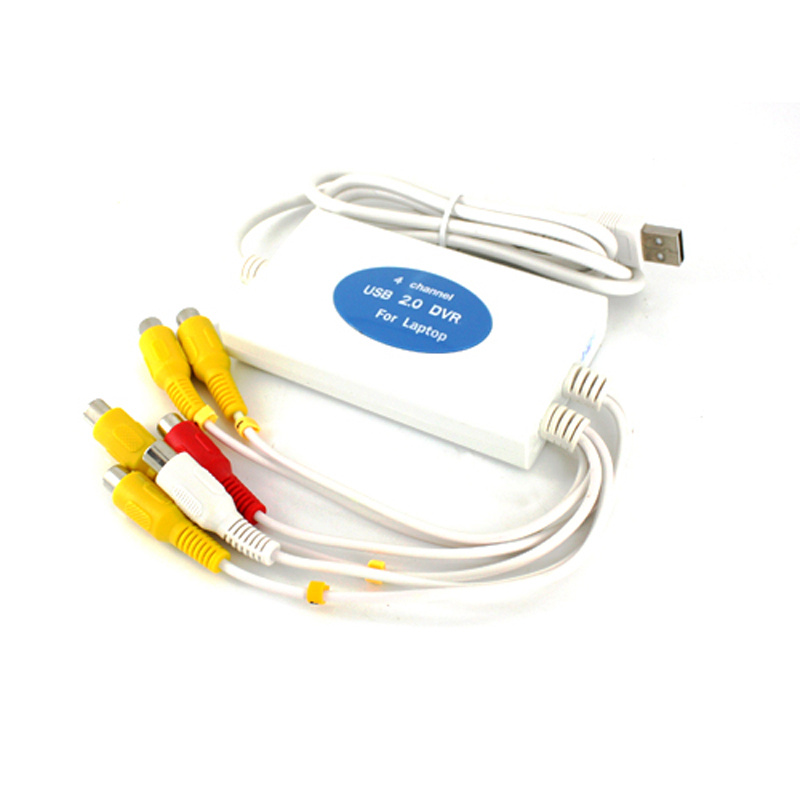

Product Specifications
| Prod Model: |
SEDVR-024 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Input: |
4CH |
| Signal System: |
PAL/NTSC |
| Total Display Rate: |
PAL:25/Fps Together; NTSC:30/Fps Together |
| Audio Capture: |
24h Recycle Recording (Two Channel and Need Sound |
| Style: |
Mini Camera |
Product Description
Main Feature:
1\USB2.0
2\4CH video input
3\Real time remote monitoring
4\MPEG4 compression format, greatly reduce HDD usage
5\Alarm notification by e-mail or other computer
6\Dynamic IP acceptable
7\Remote Surveillance and P. T. Z control through LAN, Intranet, and Internet.
8\Motion-detection area can be set
9\Can backup to the HD, CD-RW or DVD-RAM
10\Remote monitoring service center
11\Detection Sensitivity adjustment
12\Instant alarm notification
13\Recyclable over ride of hard disk space on FIFO (Fist-in-Fist out)
|
Model |
SEDVR-024 |
|
Video Input |
4CH |
|
Signal System |
PAL/NTSC |
|
Total Display Rate |
PAL:25/FPS Together; NTSC:30/FPS Together |
|
Recording Mode |
24H Recycle recording (Schedule recording) |
|
Audio Capture |
24H Recycle recording (twochannel and need sound card) |
|
Multi-task Functional |
Monitoring, Recording, Motion detection, and Remote transmission are all-function at the same time |
|
Backup Function |
Backup image files via HDD, DVD-RAM, or CD-RW |
|
Motion Detection |
Easy recognition and recording of moving objects.
Manually adjust unlimited motion detection areas. |
|
Alarm Feature |
Local: Warning sounds.
Email: Sending the alarm event’s picture through Internet |
|
Recording Format |
AVI (can play these recorded files in windows media player) |
|
Compression Technology |
MPEG-4
|
|
Audio Recording |
Enable record 2 channel audio |
|
Image Adjustment |
Enable adjusts brightness, contract, hue, and saturation of each camera. |
|
Authority Control |
Access control for total security operation through multi-level passwords |
|
Networking Capabilities |
Enable integrated access via PSTN, ISDN, LAN, and Internet |
|
Remote Monitoring |
Support remote monitoring via both Dynamic and Static IP |
|
Language |
Chinese (Traditional), English, German, Spanish, Portuguese |
|
System Requirements |
USB: Compliant USB 2.0 free port |
|
OS:Windows 2000 / XP / VISTA |
|
CPU: Pentium 4 above |
|
Memory: 256MB or more |
Graphics: PCI/AGP bus with 16MB graphic memory or more
XGA 1024×768@24bit color or higher
Microsoft Direct X 8.0 or higher version |
|
Audio: Full-duplex sound card or integrated chip |
|
Hard Disk: 20GB or above for image storage |
|
Backup Storage: CD-RW W24X or above; DVD-RAM/RW |
|
LAN: 10/100/1000 BASE-TX Ethernet card or integrated chip |
