Product Specifications
| Prod Model: |
DVK-6304QS-CM01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DVR Model: |
Mg-DVR6304QS |
| Resolution: |
4CH Full D1 |
| Fps: |
25fps/30fps |
| Cloud Function: |
Yes |
| Video Output: |
BNC, VGA |
| Cameras Model: |
Mg-C3066CB01 |
| HD Resolution: |
700tvl |
| IR Distance: |
20m |
| Lens: |
3.6mm |
| Accessories: |
4PCS 20m Cable, Power Adaptor, DC Plug etc |
| Type: |
Monitoring System |
| Technology: |
Infrared |
| Feature: |
High Definition |
| Sensor: |
CMOS |
| Horizontal Resolution: |
700tvl |
Product Description

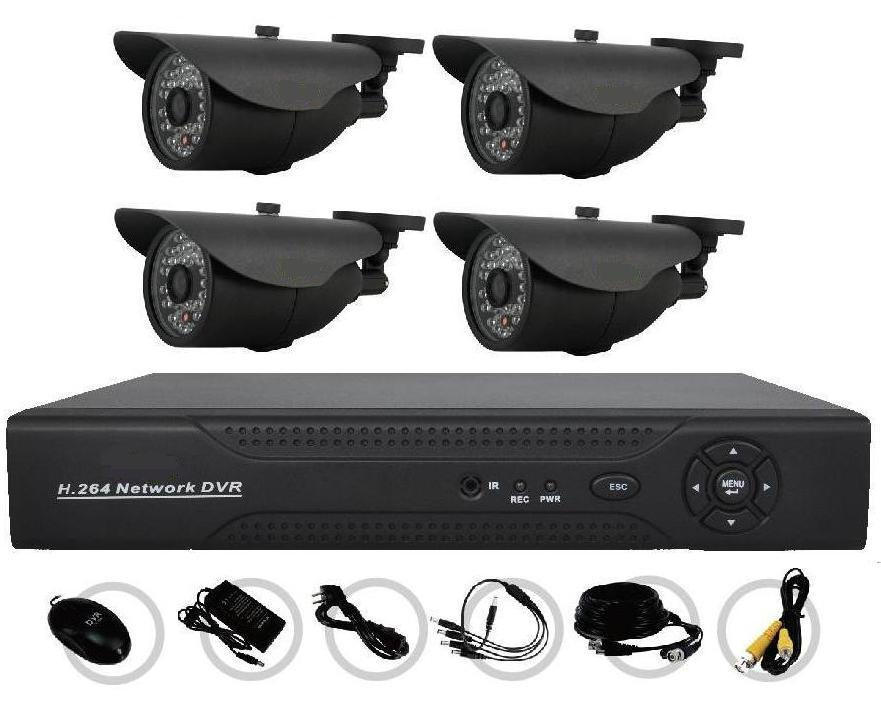

Package Contents:
MG-DVR6304QS Digital Video Recorder 1PCS
MG-C3066CB01 20M IR Outdoor Camera 4PCS
Power Supply 1PCS
5 Way power cable spiliter 1PCS
18M Video Cable and DC Cable 4PCS
TV cable 1PCS
DVR Main Feature:
H. 264 compression algorithm ideal for standalone DVR
Real-time live display for D1, Real-time live recording with each channel for D1: 30FPS
Pentaplex function: Live display, recording, playback, backup & remote access
Multiple control methods: Front panel, remote controller, USB mouse, network controller.
Multiple recording modes: Manual recording, schedule recording, alarm recording, motion detection recording, time recording, and pre-recording.
Ethernet interface is provided for realizing remote monitoring, remote playback, acoustic monitoring, remote setting and remote software upgrading through network browser.
Alarm triggering screen message, buzzer, E-mail, sensor output, multiple channel recording.
Easy backup methods: USB devices, network downloads.
Support all channel playback at the same time, and searching according to time or event(alarm, movement and sensory alarm)
Multi-Language selectable:
English, Spanish, Italian, French, Finnish, Russian, Vietnamese, German, Persian, Japanese, Chinese, Traditional Chinese, Polish, Greek, Turkish, Romanian, Hungarian, Thai, Portuguese, Ukrainian
Support remote view with Mobile Phone(Windows CE\Symbian\iPhone\ Blackberry\ Android)
|
|
Type |
MG-DVR6304QS |
|
System |
Main processor |
Industry level embedded microprocessor |
|
Operation system |
Embedded LINUX operation system |
|
System resource |
synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation |
|
Interface |
Operation interface |
16 bit true color graphical menu interface, mouse operation supportive |
|
display |
1/4image display |
|
Video |
Surveillance image quality |
PAL: 704×576 NTSC:720×480 |
|
Recording image quality |
CIF PAL: 352×288 NTSC:360×240
D1 PAL: 704×576 NTSC:720×480 |
|
Image compression |
H.264 |
|
Image control |
6 options |
|
Recording frame rate with each channel |
PAL NTSC
CIF: 25fps 30fps
D1: 25fps 30fps |
|
Image motion detect |
396(22×18) detection areas, multiple sensitivity |
|
Audio |
Audio compression |
G711A |
|
Talk-back |
supportive |
Recording
And
Playback |
Recording mode |
manual >alarm>motion detect>timing |
|
Local playback |
Single channel playback, All channels playback |
|
Recording look-up mode |
Time searching, calendar searching, affair searching, channel searching, information searching |
Storage
And
Backup |
Hard disk capability for each channel |
Audio: 28.8Mbytes/hour
Video:80~250Mbytes/hour |
|
Recording storage |
Hard disk, network |
|
Backup mode |
Network, USB |
|
Port |
Video input |
4channel BNC |
|
Video output |
1channel BNC, 1channel VGA output |
|
Audio input |
1channel RCA |
|
Audio output |
1channel RCA |
|
Network port |
RJ45 10M/100M adoptive Ethernet network port |
|
USB port |
2 USB ports(with USB backup and USB mouse) |
|
Hard disk port |
1 SATA port with 2TB hard disk |
|
Other |
Power supply |
12V/3A external power supply |
Power consume
(without hard disk) |
<10W |
|
Working temperature |
0~+55 |
|
Working humidity |
10%-90% |
|
Air pressure |
86kpa-106kpa |
|
N W |
0.95 kg |
|
G W |
1.70 kg |
|
Product size |
L220*W250*H40 |
|
Packing size |
|
|
Installation |
Frame installation, platform installation |
Technical Specification
|
Model |
MG-C3066CB01 |
|
Color/BW |
Color |
|
Sensor |
1/4'' HDIS Color CMOS Sensor |
|
System of Signal |
PAL/NTSC |
|
Picture element |
PAL: 720*576 |
|
Horizontal Resolution |
700TVL |
|
Minimum Illumination |
0.3 Lux/F1.2 |
|
Synchronizing System |
Internal |
|
S/N Ratio |
>48dB |
|
Auto Electronic shutter |
1/50~1/100,000SEC ON/OFF |
|
Video output |
1.0Vp-p 75 ohm BNC |
|
Lens |
3.6mmBoard Lens |
|
IR Distance |
20MIR |
|
Standard |
IP66 |
|
Power supply |
DC12V |
|
Power consumption |
100mA |
|
Operation temperature |
-10~+50 Celsius |
|
Storage temperature |
-30~+80 Celsius |
|
Dimensions |
|
|
Weight |
400g |
