Product Specifications
| Prod Model: |
HT100-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Comply: |
DVB-C Qam |
Product Description

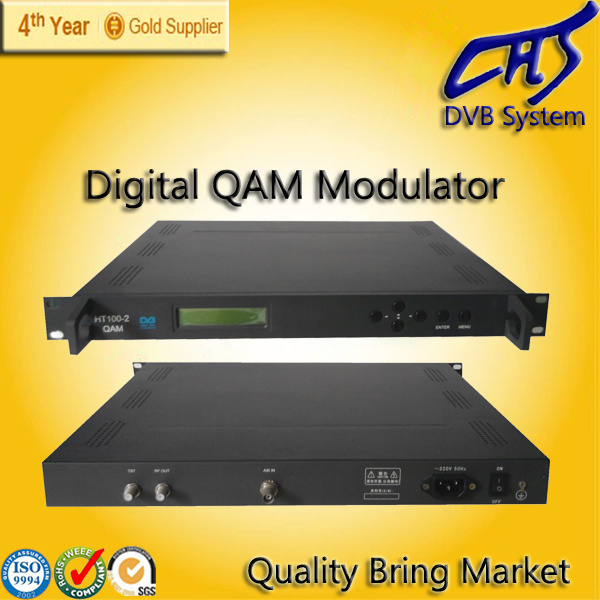

Product Name:HT100-2 QAM Agile Modulator
HT100-2 QAM Agile Modulator comply DVB-C standard, it modulates the DVB standard transport stream to RF signal, its bandwidth is less than 8MHz under the PAL mode and less than 6MHz under the NTSC mode.The DVB standard transport stream including:MPEG-2 digital TV, digital broadcasting, VOD, conference TV, internet, IP phone and many other digital signals.HT100-2 QAM Agile Modulator is widely used for HFC internet and microwave MMDS.It realizes the remote transportation of digital TV, and also sends many other digital value-added services to customers.
Features
Comply DVB-C standard (ETSI/EN300429)
Modulation Mode:16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate:1-6.96MS/s
TS input interface:ASI
IF output optional:36.125MHz or 36MHz
SNR (out of Band) ≥40dB
Packet format:Automatic Detection
Supply network management and remote supervisory
Display:LCD
Power shut memory
Specification
Input Specification
Connector BNC-75Ω, dB-25 female
Interface Type 1 Route ASI, 1 Route SPI
Packet Format Auto detection:188/204 byte packet
Input program stream MPEG-2 standard TS
IF Output
Modulation Mode 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Output symbol rate 1-6.96 MS/s
IF frequency 36.125/36 MHz
IF level 95 dB
IF bandwidth ≤8 MHz
Reflection loss ≥18 dB
Out of band rejection 60dB
Connector BNC 75Ω
RF output
Connector FL-10 75Ω
Frequency 52.500-858.000 MHz
Level 110 dBv
Out of band rejection 60dB
Others
Operation temperature 0~50
Storage temperature -20~80
Power 187~253V AC50*(12%) Hz 20W
Dimension 44.5*483.6*325 mm
