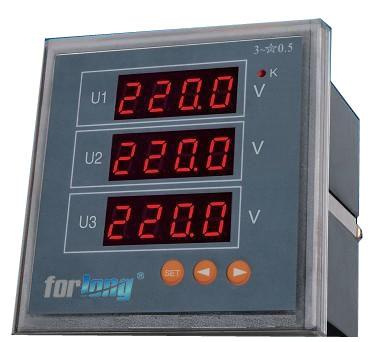

Digital Intelligent Transmitting Meter (PM 500)

Name: Digital Intelligent Transmitting Meter (PM 500)
Brand: china-manufacturer-directory.com
SKU: 668860032
Availability: InStock
Rating: 4.4 (116 reviews)

Supplier:	Shanghai Fengyilong Electronic Co., Ltd.
Price:	Negotiable
Min Order:	100
Quantity::
Trade Terms:	Sea/Air/International Express

Product Specifications

Prod Model:	PM 500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Digital Intelligent Transmitting Meter PM 500 integrate the functions with multi-value display, multi-loop transmitting and digital communication. It is widely used in power distribution system. And their high performance and high cost performance are recognized by our customers.

Accuracy		Display accuracy: 0.5, 0.2 class, Frequency meter 0.1 class, Transmitting, 0.5 class
Display		4 digit LED display with sign bit
Input	Nominal input	Current AC1A, AC5A and etc; Voltage AC100V, AC220V, AC380V and etc.
	Overloading	Continuance: 1.2 times, Instantaneous: current 10 times(5s), Voltage 2 times(10s)
	Frequency	50/60Hz± 10%
Power supply	Auxiliary power supply	Auxiliary supply power AC/DC80~270V, AC220V, DC220V and etc.
	Power consumption	< 4VA
Isolation withstand voltage		Power and input supply, Transmitting output, Communication interface AC2kV, Input, Transmitting output, Communication interface between each other AC1kV
Insulation resistance		≥ 100MΩ
Mean time between failures		≥ 50000h
Operation condition		Ambient temperature: -10~55° C, Relative humidity ≤ 93%, No corrosive gas, Height above sea level≤ 2500m
Output	Analog value	When DC4~20mA current output, Load< 510Ω , DC0~5V voltage output, Load> 100kΩ
	Digital value	RS-485 interface, MODBUS-RTU protocol, Baud rate default 9600(optional 4800, 9600)bps

Shanghai Fengyilong Electronic Co., Ltd. is an experienced manufacturer of electronic meters, and has its headquarter in Shanghai, China and subsidiary factory in Jiangsu province. As a member of National Instrument & Meter Associations, we have involved in drafting our National Standards for instruments & meters.

We are an ISO9001 company, we have very good quality control mechanism on production process. We have our dinrail energy meter, prepayment energy meter, socket energy meter CE approved.

We have our own import and export rights and possess skillful import & export operating persons as well.

Here we are highly honored to enter into your business line, so we heartily wish to serve you with our good products. We also hope that we can join our hands to work hard for our mutual future.

You are welcome to visit our showroom.
