Yueqing Winston Electric Co., Ltd. >> Digital Multi-Function Liquid Level Control Floatless Relay with CE

Digital Multi-Function Liquid Level Control Floatless Relay with CE

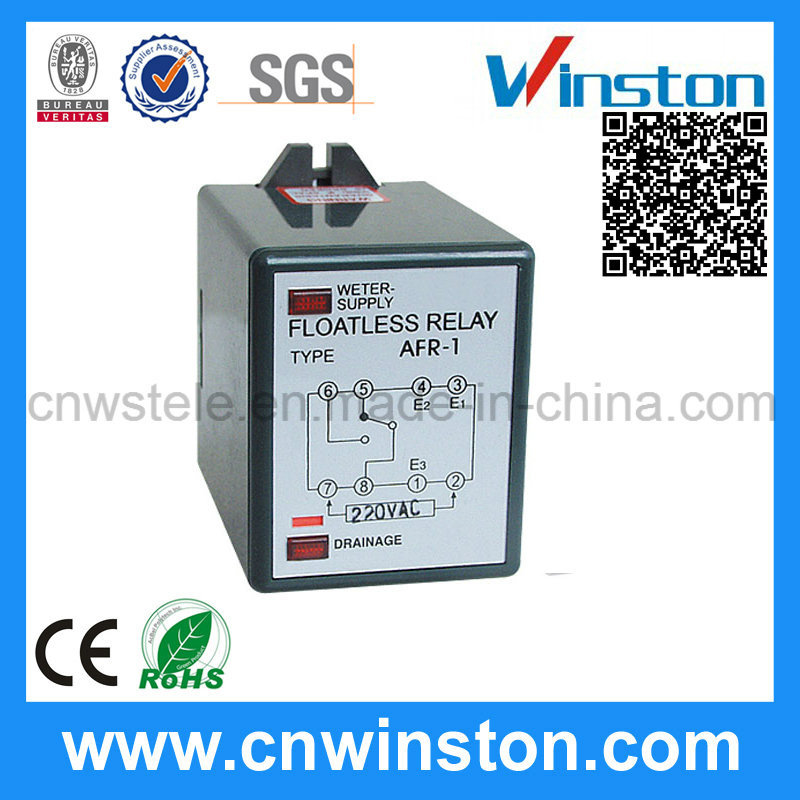

Name: Digital Multi-Function Liquid Level Control Floatless Relay with CE
Brand: china-manufacturer-directory.com
SKU: 720470685
Availability: InStock
Rating: 5 (56 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 3.5-7.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AFR-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Brand:	Winston
Protect Feature:	Sealed
Contact Load:	Low Power
Antistop:	Floatless Relay
Dimensions(mm):	61h 49W 70d
Connection Diagrams:	35b
Ambient Huminity:	48~85%Rh
Quality:	2 Year Warranty

Product Description

Specifications:

1.Socket type: PF083A

2.Rated voltage:AC 110V,220V,240V,50/60Hz

3.Indicate operation:two LED's use for two status

4.Contact rated: 5A 250VAC

5.Dielectric strength:1500VAC 50/60Hz, 1MINUTE

6.Consumed power:3.2VA

7.Weight:200g

CLASSIFICATION		FLOATLESS RELAY
MODEL		AFR-1
DIMESIONS(mm)		61H49W70D
SOCKET TYPE		PF083A
SENSING MODE	GENDRAL	AFR-1
	HIGH SENSING	AFR-1H
	LONG DISTANCE	AFR-1L
	LOW DENSITY	AFR-1D
	TWOLINES	AFR-1R
RATED VOLTAGE		AC:110V,220V,240V,50/60HZ
INDICATOR OPERATING		Two LED's use fro two status
OPERATE VOLTAGE		85110%of rated voltage
SECND VOLTAGE		8VAC (except highsensing 24VAC)
OPERATE RESISTANCE		4K MIN.(GENERAL)
RELEASE RESISTANCE		15K MIN.(GENERAL)
RESPONSE TIM		OPERATE:80 MSEC MAX.RELEASE:160MSEC MAX.
CONTACT RATING		5A,250VAC(RESISTIVELOAD)
LEGTH OF CABLE		1KMMAX.(GENERAL)
LIFE	MECHANICAL	5106TIMES MIN
	ELECTRICAL	105 times min
INSULATION RESISTANCE		100M (DC 500V)MIN
DIELECTRIC STRENGTH		1500VAC,50/60HZ,FOR 1MINUTE
CONSUMED POWER		3.2VA
AMBIENT TEMPERATURE		-10+55
AMBIENT HUMIDITY		4585%RH
WEIGHT		200g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
