Product Specifications
| Prod Model: |
DMB-9580 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

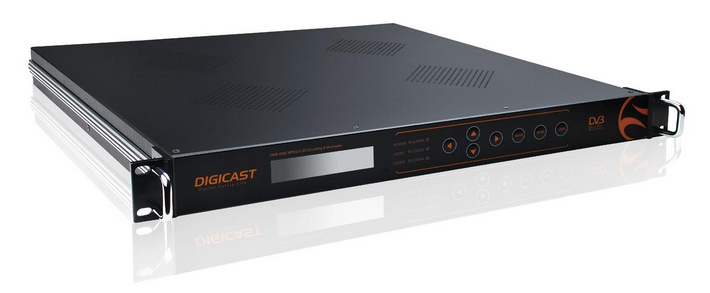

DMB-9580 MPEG-2 SD Encoding & Modulator(all-in-one) is a high-density and flexible device, integrating Encoding, Multiplexing, Encapsulation and Modulation with its excellent performance of SD encoding and modulation.
MAIN FEATURES
Support modulation modules selectable from DVB-T, DVB-C, ATSC-T, ISDB-T and DTMB
Support MPEG-2 video encoding
Encoding module, WiFi module and Tuner in module swappable, easy upgrading and maintenance
Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Support PID, PSI/SI compilation and LCN setting
Equipped with multiplexing module, able to multiplex local programs with external TS
Support TS over IP out, applied to IPTV applications.
Support IP empty packet filtering capability
Cut-off memory capability
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface
SPECIFICATION
ENCODING MODULES (optional & swappable)
MPEG-2 SD Encoding Module
Video input: 1*CVBS/SDI (Encoding model: EFS-01)
2*CVBS (Encoding model: EVS-02)
Video compression standard: MPEG-2 MP@ML(4: 2: 0)
Video resolution: PAL - 720*576;
NTSC - 720*480
Audio input: Analog L/R, embedded SDI audio
Audio compression standard: MPEG-1, Layer II
Audio sample rate: 48kHz
Audio bit rate: 64~320 Kbps
TUNER IN MODULES (optional & swappable)
DVB-S/S2 Tuner in Module
Tuner in: 1*DVB-S/S2 Tuner(Tuner in module: RTS-01)
Supporting DVB-S/S2 standard
Constellation: QPSK, 8PSK
FEC: DVB-S (QPSK): 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 8PSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Frequency range: 950~2150MHz, in 500kHz steps
Symbol rate: 2~45MSymbol/s
RF input level: -65~-25dBm
DTMB Tuner in module
Tuner in: 1*DTMB Tuner(Tuner in module: RTD-01)
Constellation: 4QAM, 16QAM, 32QAM, 64QAM
FEC: 0.4, 0.6, 0.8
Frequency range: 110~860MHz
RF input level: -65~-25dBm
WiFi MODULE (optional & swappable)
Protocol of mobile receiver: DLNA, Airplay
Operation mode: 802.11A/B/G/N
Frequency range: 2.4000 ~ 2.4835GHz
5.150 ~ 5.825GHz
Transport speed: 802.11A: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11n (20MHz): MCS0-15, up to 144Mbps
802.11n (40MHz): MCS0-15, up to 300Mbps
WiFi output level: 2.4GHz:
802.11b: 16 +/- 1.5 dBm
802.11g: 14 +/-1.5 dBm
802.11n(20MHz): 13 +/-1.5 dBm
802.11n(40MHz): 13 +/-1.5dBm
5GHz:
802.11A: 14 +/- 1.5 dBm
802.11n(20/40MHz): 12 +/-1.5 dBm
Antenna: 2*bilateral antenna
INPUTS AND OUTPUTS
ASI Input
Channel: 1*ASI
Interface: BNC, 75 ohm
Input bit-rate: < =100MB/s
Packet mode: Byte mode
Packet length: 188/204 Bytes
ASI Output
Channel: 1*ASI+1*ASI backup
Standard: Compliant with EN 50083-9 ASI
Output loss: > 10dB
Interface: BNC, 75 ohm
IP Output
TS over IP out, UDP protocol
Channel: 1*MPTS or Multi-MPTS (the same contents with RF out)
Support empty packet filtering
Interface: RJ45 (10/100M)
