Product Specifications
| Prod Model: |
DMB-9590 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

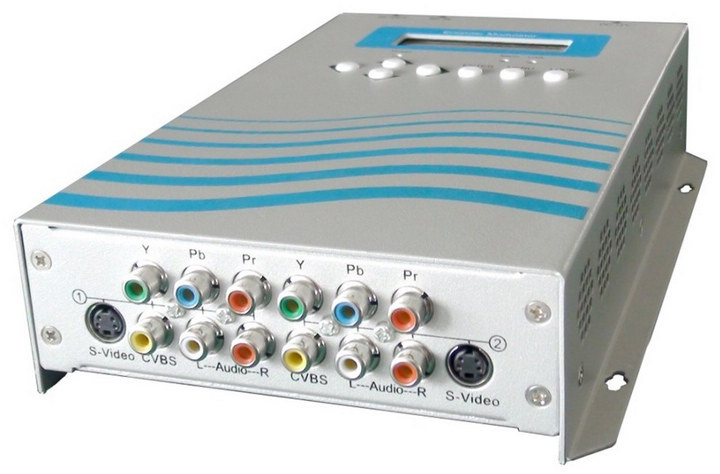

DMB-9590 Mini MPEG-2 SD Universal Encoding & Modulator has entered public places such as malls, hotels and restaurants, schools all over the world, as well as thousands of households, with its features of cute structure, convenient and flexible applications, high cost-efficiency and so on. The device integrates functions of video compression encoding and modulating. It accepts 2* CVBS, 2*YPbPr and 2*S-Video analog Audio&Video signal and 1* RF input signal, with DVB-T/C/ATSC/ISDB-T standard RF output by option, for the convenience of acceptance by subscribers, and realize real-time video transmission and broadcast. DMB-9890 is especially suitable for variety of video applications like, home entertainment, video advertisement for malls, restaurants, band panel, security and protection monitoring, etc...It will serve more and more groups, as the growing demand of video from the society.
MAIN FEATURES
Smart structure with powerful functions
MPEG-2 encoding mode, and DVB-T/C/ATSC/ISDB-T modulation mode
Insertable LCN
Keyboard on front panel and LCD display, convenient and easy for operation
Network upgrading via JTAG interface, convenient for maintenance
SPECIFICATIONS
ENCODING MODULES
MPEG-2 SD Encoding Module
Video input: 2* CVBS, 2*YPbPr and 2*S-Video
Video compression standard: MPEG-2 MP@ML(4: 2: 0)
Video resolution: PAL - 720*576;
NTSC - 720*480
Audio input: Analog audio (stereo/mono)
Audio compression standard: MPEG-1, Layer II
Audio sample rate: 48kHz
Audio bit rate: 64~320 Kbps
MODULATION MODULES (optional)
DVB-T Modulation Specifications
Modulation standard: EN300 744, EN304 744
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
FET mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
MER: > =42dB
RF output frequency range: 30~960MHz, in 1kHz steps
RF output level: -30~10dBm (81~97dbV*0.000001), in 0.1dB steps
Out-of-band rejection: 55dB
ATSC Modulation Specifications
Modulation standard: ATSC A/53
Constellation: 8VSB
RF output level: -30~-10dBm (81~97dbv*0.000001 ), in 0.1dB steps
MER: > =40dB
RF output frequency range: 30~960MHz, in 1kHz steps
DVB-C Modulation Specifications
Modulation standard: J. 83A, J. 83B, J. 83C
Constellation: J. 83A-6/32/64/128/256QAM; J. 83A-64/256QAM; J. 83C-64/256QAM
RF output level: -30~-10dBm (81~97dbV*0.000001), in 0.1dB steps
MER: > =40dB
RF output frequency range: 30 ~ 960MHz, in 1kHz steps
Symbol rate: J. 83A-5 ~ 7MSymbol/s, J. 83B - fixed; J. 83C - fixed
Out-of-band rejection: 55dB
Bandwidth: J. 83A - 8M, J. 83B - 6M, J. 83C - 6M
ISDB-T/Tb Modulation Specifications
Modulation standard: ARIB STD-B31
Modulation mode: Mode 1(2k), mode 2(4k), mode 3(8k)
Constellation: DQPSK, QPSK, 16QAM, 64QAM
ISN: Convolutional coding (1/2, 2/3, 3/4, 5/6, 7/8)
Outer code: RS (204, 188)
Guard interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 6MHz
RF output frequency range: 30 ~ 960MHz, in 1kHz steps
MER: > =42dB
RF output level: -26dBm ~ -10dBm, in 0.1dB steps
