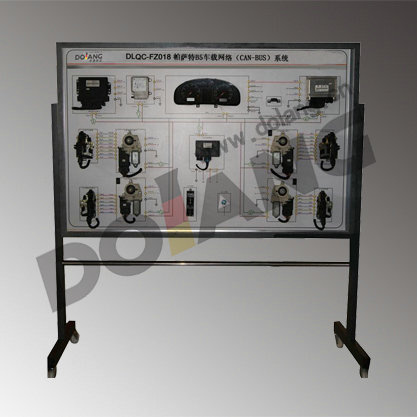

Passat B5 CAN-BUS Network System DLQC-FZ018

Note: (optional models are available for customers Volkswagen Passat B5, Volkswagen Touran, Toyota Camry, etc. )

Introduction

The device is designed based on the Volkswagen Passet B5 CAN network system to holistically demonstrate the structure and operation of the system. All parts are original parts, before delivery through layers of inspection, production quality management according to ISO9001: 2008 standards implementation. The device applies to theoretical teaching and maintenance training of the CAN network system in secondary and senior vocational skill schools, normal education and training institutions.

Basic Configuration
Rearview mirror front left window motor, right front window motor, left lock block, right front locking block, left rear window motor, rear left locking block, right rear window motor, right rear locking block, instrument cluster, rear-view mirror switch, window switch, ignition switch (with security), ignition coils, engine control units, automatic transmission control unit, ABS control units, diagnostic blocks, crankshaft position sensor, oxygen sensor, air flow meter, knock sensors, electronic throttle body, fuel injectors, relays and fuse box, training panel, ignition switch, ignition key, the power switch, DC12 power, movable framework (with self-retention wheels), supporting manual and training guide book and other components.


Features

1. A real and operable CAN-BUS network system is used to illustrate the structure and works of the system.

2. Can fully demonstrate operation of Passat B5 automobile data transmission network structure and data transmission control circuit elements;

3. Through the fault diagnostic test entire power system system and comfortable CAN-BUS data transmission network and terminal control unit;

4. Through combining meter gateway control connection, you can connect the power system data transmission network and comfort systems data transmission network, combined into a complete automible CAN-BUS network systems;

5. A color circuit diagram on the instruction board is engraving via Germany imported computer laser engraving machine fixed with aluminum rims. The diagram and CAN data transmission network system can help trainees learn and analyze the operating principle of the system.

6. The instruction board is installed with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components of the CAN data transmission network system.

7. Do not need batteries, with DC12V power supply, reducing charging trouble, there are short-circuit proof function;


Training Content

1. Automotive data transmission network structure composition and working principle project training.

2. Automotive data transmission network common fault simulation, diagnosis and detection project training

3. Automobile data transmission network signal simulation work processes project training

4. Automotive data transmission network each circuit element voltage, resistance, signal detection project training.

5. Automotive data transmission network circuit diagram analysis project training.

6. Automotive data transmission network troubleshooting and confirm training.

7. Automotive data transmission network troubleshooting and exclusions training.

Technique Features
1. Bracket adoped imported luxury car paint, sprayed at high temperatures, with anti-corrosion function.
2. Support frame material select GB high quality (40 * 60 * 3mm) square tube welding.
3. Dimensions: . 1260 × 850 × 1800mm.
