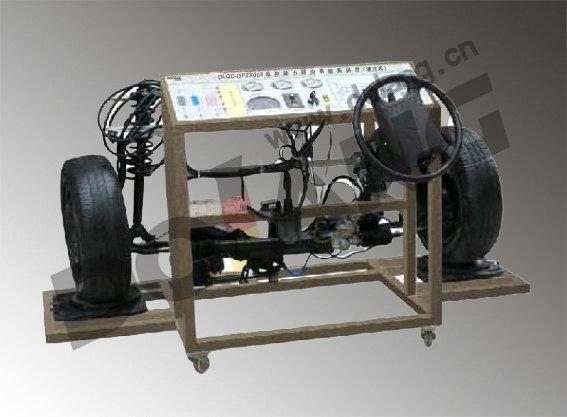

DLQC-DPZX003 Electronical Controlled Power Steering System Training Workbench ( Electrical)
Remark: Optional model Honda Fit EPS, VW Touran
Introduction
The training platform select electrical control power steering system, with complete accessories, all parts are original parts, production quality management according to requirement of ISO9001: 2008 standards. Compare non-power steering and power steering, fully demonstrates the work process and steering principles, application and change. Suitable for automotive steering system construction and maintenance training, practice teaching of middle and advanced vocational and technical schools and training institutions.
Basic Configuration
Power steering control computer (ECU), ignition switch, front suspension mechanism, booster pump, oiler, steering wheel, steering column, universal joints, steering gear, steering rod, wheels, speed-signal analog devices, three-phase asynchronous motors, hydraulicpressure gauge, turning dials, torque sensors, mobile workbench, manual, training guide book and other components.
Training Content
1. Fully demonstrate the working process of hydraulic power steering by simulating different speed, vehicle speed and turn the steering wheel
2. Turning dial display steering wheel angle size, pressure gauge display power hydraulic oil value;
3. Testing and adjusting wheel alignment;
4. The training units are equipped with electronically controlled power steering system colored schematics and detection terminal, detect electric power steering system signal parameters such as voltage, resistance, frequency, etc by instruments
5. The system with self-diagnostic system. When a fault occurs, the fault lamp blinks;
6. Fault setting and assessment system (see fault setting and assessment function description);
7. Mobile device with locking casters, easy to move and facilitate teaching.
Training Content
1. Structure composition work process training of electrical control power steering system
2. Power assisted changes under different speed of electrical control power steering system
3. Wheel alignment test and adjust training coordiate with wheel aligner
4. Installation position and installation sequence training of each parts of electrical control power steering system
5. Troubleshooting and confirmation training of each system
6. Fault phenomenon and analysis training of electrical control power steering system
7. Practical and theory test identification of electrical control power steering system
Technique Features
1. The workbench with high-grade automotive paint, paint treated at high temperatures, against moisture and rust, with beautiful and durable appearance;
2. GB standard high quality material for support frame (40 * 60 * 3mm welding square pipe);
3. Dimensions: . 2000 × 1050 × 1250mm
