Guangzhou Skytone Audio Co., Limited >> Double 12" Line Array Speaker L-Acoustics Kudo Style

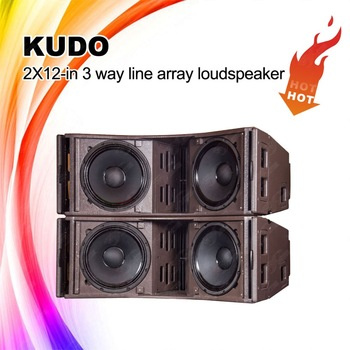

Double 12" Line Array Speaker L-Acoustics Kudo Style

Supplier:	Guangzhou Skytone Audio Co., Limited
Price:	Negotiable/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	CFR,CIF,DAP

Product Specifications

Prod Model:	KUDO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Kudo
System Type:	3-Way 2X12" Passive
Size:	2X12"
Components:	Lf: 2X12" ; Hf: 2X 1.75"(Neodymium); Mf:4X5.5"
Power:	4500W/3000W/1500W
Frequency Response:	35 Hz - 20 kHz
Cabinet Material:	Birch Plywood
Finish:	Environmental Water-Based Finish
Dimensions (H X W X D):	876 X 356/276 X 689 Mm
Noise:	<95dB
Hi-Fi:	Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Application:	Professional Performance
Certification:	CCC
THD:	<0.005%
Speaker Material:	Birch Plywood
Monitor:	Non

Product Description

Products Description
Kudo 3 Way Line Array System, amazing power outdoor line array

3-way line array
Dual 12" line array system
High power line array speaker
Fanastic nice sound line array
Outdoor line array system

The system shall consist of a 3-way enclosure quad-amplified design using the Wavefront Sculpture Technology (WST) and driven and protected by a dedicated amplified controller. Loudspeaker enclosures shall be installed vertically or horizontally.

K-LOUVER variable directivity with 50° /110° Symmetric, 80° Asymmetric
Arrayable as a constant curvature horizontal line source
Variable line source, splay angle up to 10° For increased vertical coverage
25 Hz mode for exceptional LF performance, reduced subwoofer needs
LA-RAK /LA8 package with advanced system drive and protection
What we assure:
1. Quality is first
2. Service is best
3. Delivery on time

KUDO 2x12 inch LINE ARRAY specification
Usable bandwidth	35 Hz - 20 kHz
Nominal Directivity (-10dB)	Horizontal: 50° or 110° symmetric - 25°/55° or 55°/25° asymmetric
Maximum SPL	140 dB
RMS handling capacity(LF)	2 x 450 W
RMS handling capacity(MF)	4 x 150 W
RMS handling capacity(HF)	2 x 75 W
Components(LF)	2 x 12inch , mounted in a bass-reflex enclosure
Components(MF)	4 x 5.5inch high efficiency
Components(HF)	2 x 1.75inch diaphramg compression neodymium drivers
Material	Birch Plywood
Front:	polyester powder-coated steel grill
Rigging	integrated flying hardware and handles
Size	876 x 356/276 x 689 mm
Weight	87 kg

Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake.

We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.

Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
