Product Specifications
| Prod Model: |
TC-506M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Tc-506m |
| Brand Name: |
Hys |
| Country Of Origin: |
China |
| Frequency Range: |
Tx:156.025-157.425MHz Rx:156.050-163.275MHz |
| Channel No.: |
88 Channels |
| Power Output: |
Power Output |
| Type Of Emission: |
FM(16k0g3e),DSC(16k0g2b) |
| Receiving System: |
Double Conversion Superheterodyne |
| Dimensions: |
116×85×175mm |
| Weight: |
1350g(±2%) |
Product Description

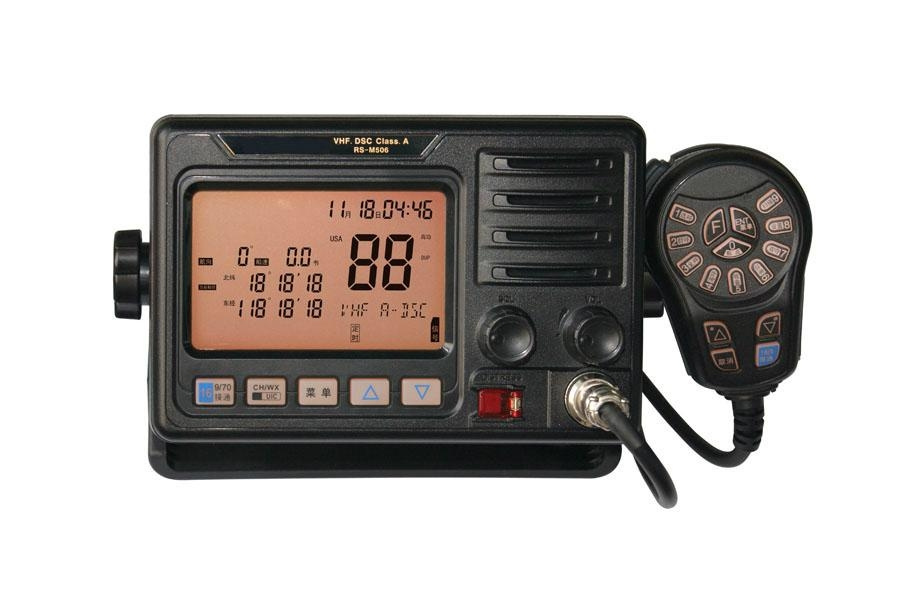

DSC VHF FM 88-108MHz Marine Radio with GPS Function tc-506m
Main Features of DSC VHF Marine Radio
1. GPS Function
2. Built-In DSC, CH70 Continuous Watch
3. FM 88-108MHz Radio
4. 64 Waypoints Memory and Navigation
5. 10 Weather Channels and Weather Alert
6. Auto-Record Message
7. Collision Avoidance Alarm Display
8. 10 Weather Channels and Weather Report
9. Priority Scan, Dual-watch and Tri-watch Functions
10. Distress Call, Individual Call, Group Call etc
Technical Specifications of dsc vhf marine radio :
General
( DSC vhf marine radio ) |
| Frequency Range | TX:156.025-157.425MHz |
| RX:156.050-163.275MHz |
| Channel No. | 88 channels |
| Type of Emission | FM(16K0G3E),DSC(16K0G2B) |
| Receiving System | Double conversion superheterodyne |
| Frequency Stabilization | ±5ppm |
| Work Voltage (V) | DC13.8V(±15%) |
| Operating Temperature | -20°C~+60°C |
| Antenna Impedance | 50Ω |
| Dimensions(W×H×D) | 116×85×175mm |
| Weight | 1350g(±2%) |
Transmitter
( dsc marine vhf radio ) |
| RF Power Output | 25W/1W |
| Modulation Limit | ±5KHz |
| Modulation Sensitivity | 6mV±3mV |
| Adjacent Channel Selectivity | ≥65dB |
| TX Audio Distortion | ≤5% |
| Spurious and Harmonic | ≤ -65dB |
| Residual Frequency Modulation | ≥40dB |
| Current Consumption | ≤ 8.0A(High power) |
| ≤ 1.5A(Low power) |
| Input Impedance | 2KΩ(Microphone) |
Receiver
( DSC vhf marine radio ) |
| RX Sensitivity | ≤0.2µV(12 dB SINAD) |
| Band Modulation | ≥2*5KHz |
| Squelch Sensitivity | ≥5KHz |
| Adjacent Channel Selectivity | ≥65dB |
| Intermodulation Anti-interference | ≥60dB |
| Spurious Response Rejection | ≥65dB |
| Max RX Current(mA) | ≤1.5A |
| Audio Output Power | ≥3W(8Ω) |
| Audio Distortion | ≤5% |
| GPS Signal Format | NMEA0183-2.0 |
| Audio Output Impedance |
8Ω(Speaker) |
