Product Specifications
| Prod Model: |
COL5400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Radio Signal Modulation |

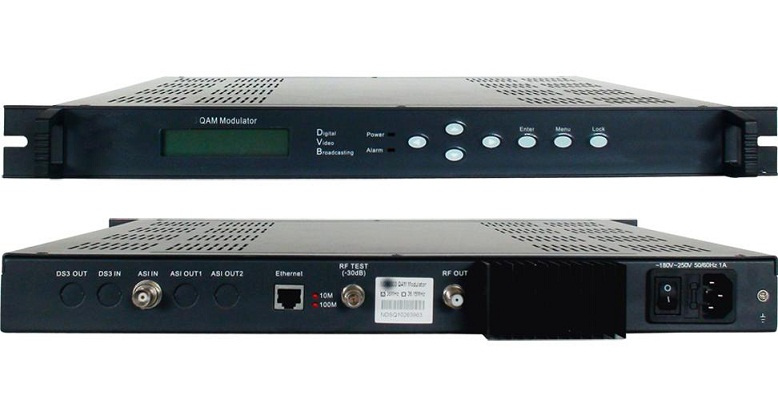

Product Description
Features
1 Fully complying with EN300 429/ITU-T J. 83A (DVB-C), GB/T170 standard
2 Symbol rate range: 1.0Msps~7.0Msps
3 Supporting 16QAM, 32QAM, 64QAM, 128QAM and 256QAM constellation modes.
4 Supporting ASI and DS3 input and output (optional)
5 Huge buffer memory for the burst code stream
6 Supporting intelligence null packet filtering, automatically TS filling and PCR fine-tuning
7 Supporting NIT insertion
8 Supporting effective inputting real-time bit rate monitoring
9 Output frequency range: 48MHz~860MHz in 10kHz step
10 Output frequency attenuation range: -11dBm~+5dBm in 0.5dB step
11 Full-size front panel LCD display and keyboard
Specifications
|
Input |
1channle ASI input, BNC interface, 75Ω |
|
1channle DS3 input (N/A), BNC interface, 75Ω |
|
Modulation |
QAM Channel |
1 |
|
Standard |
EN300 429/ITU-T J. 83A, GB/T170 |
|
Symbol Rate |
1.0~7.0Msps, 1ksps stepping |
|
Constellation |
16, 32, 64, 128, 256QAM |
|
FEC |
RS(204, 188) |
|
RF Output |
Connector |
F Type, 75Ω impedance |
|
RF Range |
48~860MHz, 10kHz Step |
|
Output Attenuation |
-11dBm~+5dBm, 0.5dB Step |
|
System |
Full-size front panel LCD display and keyboard
Supporting NMS operation |
|
Supporting Software Upgrading |
|
General |
Dimension(W*D*H) |
480mm× 455mm× 45mm |
|
Weight |
6.0kg |
|
Temperature |
0~45 (Operation); -20~80 (Storage) |
|
Power |
AC 110V/220V± 10% 50/60Hz |
|
Consumption |
30W |
|
