Product Specifications
| Prod Model: |
COL5600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Condition: |
New |
| Function: |
Signal Transmission Equipment |
| Type: |
TV Front-end Equipment |
Product Description

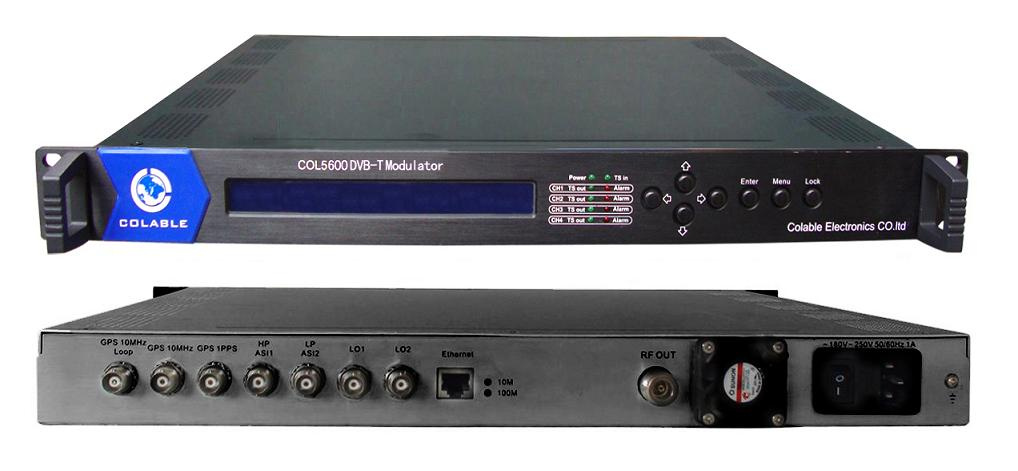

The COL5600 DVB-T modulator is a high performance modulator developed according to DVB-T (EN300744) standard. It adopts advanced framing structure, channel coding and modulation technology. And it also supports both MFN (Multi-frequency network) and SFN (single frequency network). It has 2 AIS input ports, one GPS.10MHZ input port and one 1 PPS input port. In order to improve the output performance of the transmitter, the DVB-T modulator can simultaneously support linear and nonlinear pre-correction. This device supports local and remote control through NMS software.
Features
1. Fully complying with DVB-T standard (EN300744)
2. Both SFN and MFN support
3. Transfer mode 2k, 4k, 8k optional
4. Hierarchy modulation Alpha1, 2 and 4 optional
5. Transfer bandwidth 6M, 7M and 8M optional
6. Supporting linear and non-linear correction
7. Excellent phase noise and MER performance, MER ≥40db
8. RF output range 110~860MHz, 1hz step
9. Two ASI inputs supporting hot backup
10. Constant temperature crystal oscillator, frequency stability is high up to 0.1ppm
11. Full-size front panel LCD display and keyboard, NMS management.
Specification
| Input | 2 channels ASI input, hot backup, BNC port |
| GPS 10Mhz reference clock input, BNC port |
| GPS 1PPS input, BNC port |
| Modulation | standard | EN304 744 |
| FFT | 2K,4K,8K |
| bandwidth | 6M,7M,8M |
| constellation | QPSK,16QAM,64QAM |
| Guard interval | 1/4,1/8,1/16,1/32 |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Hierarchy modulation | Alpha=1,2,4 |
| RF output | ASI loop out | 2channels ASI loop out, BNC port |
| interface | N type, 50Ω impedance |
| RF range | 110~860MHz,1hz step |
| ATT | -16dbm~0dbm,0.5db step |
| MER | ≥ 40db |
| Linear pre-correction | Correction points | 16 |
| Non-linear pre-correction | Correction points | 256 |
| System | Full-size front panel LCD display and keyboard, NMS management |
| Software upgrading |
| General | Demission (W*L*H) | 483mm×455mm×45mm |
| Weight | 5kg |
| Temperature | 0~45ºC(operation),-20~80ºC(storage) |
| Power supply | AC 110V/220V±10%,50/60Hz |
| Consumption | 28.6W |
