Pls attention:
this product just for booking right now ! you can enjoy more discount if you booking in advance.

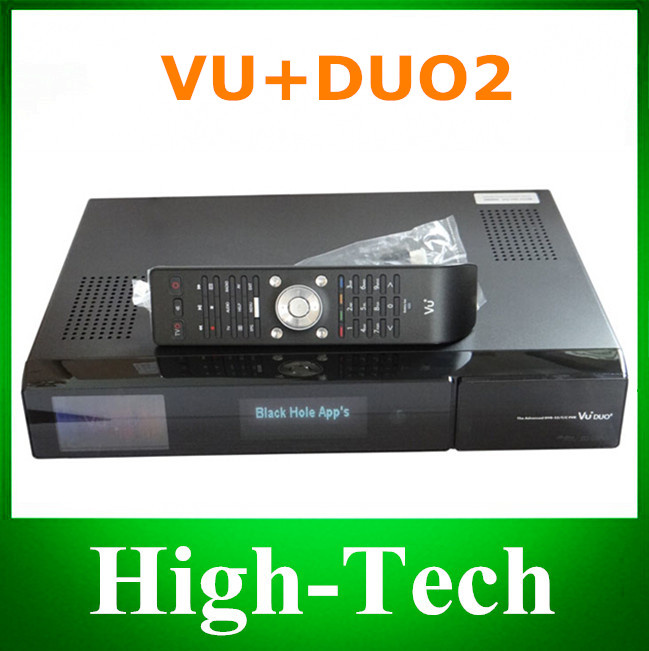

VU+ Duo²2X DVB-S2 Tuner Full HD 1080P Twin Linux Receiver PVR ready Vu Plus Duo2 Sat
VU+ Duo²2X DVB-S2 Tuner Full HD 1080P Twin Linux Receiver PVR ready Vu Plus Duo2 Sat
Digitaler Satelliten-Empfangsreceiver füR HD TV- und Radioprogramme.
Hauptmerkmal ist der 1300 MHz starke Dual Core Prozessor der VU+ Duo².Erleben Sie HighDefinition TV mit Ihrem VU+ Duo².
2X Plug and Play Tuner DVB-S2 / DVB-C/T / DVB-S2 Dual
Transcoding Funktion
Airplay Funktion
Opera Browser
HbbTV
HDMI 1.4 Anschluss
HD PIP
Gigabit LAN
Plug&Play Halterung füR 2, 5" SATA - Festplatten
2 X Display ( VFD und LCD )
WOL
Technische Highlights VU+®Duo²
1300 MHz Dual Core Mips Prozessor
1GB Flash
2GB DDR3 DRAM
Gigabit LAN
2 X DVB Common-Interface Einschub
2 X Smartcard-Reader (Xcrypt)
3 X USB(1X Front, 2 X RüCkseite)
SPDIF Audio Ausgang optisch (digital)
1 X HDMI 1.4 Video/Audio Ausgang (digital)
1 X Scart (TV)
1 X Video Ausgang RCA
2 X Audio Ausgang (L/R) RCA (analog)
Plug&Play Halterung füR 2, 5 und 3, 5" SATA - Festplatten
Unlimitierte Kanalliste füR TV/Radio
EPG (electronic program guide) UnterstüTzung
UnterstüTzung von Bouquet-Listen
OSD in vielen Sprachen und Skin-UnterstüTzung
Automatischer /manueller Kanalsuchlauf
DiSEqC 1.0/1.1/1.2, USALS
Netzschalter
Technische Daten VU+®Duo²
2X DVB-S2
Eingangsfrequenzbereich 950...2150 MHz
QPSK Demodulation nach EN 302 307
Eingangspegelbereich - 65 dBm...- 25 dBm
Rauschmaß12 dB max.
DBS-Tuner Eingang F-Buchse
Eingangsimpedanz 75 Ohm
AFC-Fangbereich +/- 3 MHz
Demodulation Shaped QPSK und 8PSK
FEC Viterbi und Reed-Solomon
Viterbiraten 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
Roll-off Factor 35 %
DVB-C/T- Hybrid Tuner:
VHF-KanäLe:2-12 (49...230 MHz)
UHF-KanäLe:21-69 (470...861 MHz)
DVB-C HDTV kompatibel
Eingangsfrequenzbereich:51...858 MHz
Symbolrate:1...7 Mbaud/s
Eingangsimpedanz:75 Ohm
Tuner Ein/Ausgang:IEC-Stecker
DVB-C / DVB-T üBer Software umschaltbar
Common-Interface:
2X Common-Interface Stromverbrauch max.0, 35A/5V
Videodekodierung:
Videokompression MPEG-2 / H.264 und MPEG-1 kompatibel
Videostandard PAL G/ 25 Hz, NTSC
Bildformat 4:3 / 16:9
Letterbox füR 4:3 TV-GeräTe
Ausgang Digital:
Ausgangspegel 0, 5 Vss an 75 Ohm
Abtastfrequenzen 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Ausgang optisch, coaxial (AC3)
Audiokodierung:
Audiokompression MPEG-1 & MPEG-2 Layer I und II, MP3
Audio Mode Dual (main/sub), Stereo
Abtastfrequenzen 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Ausgang Analog:
Ausgangspegel L/R 0, 5 Vss an 600 Ohm
THD > 60 dB (1 kHz)
ÜBersprechen < -65 dB
Video-Parameter:
Eingangspegel FBAS 1 Vss +/- 0.25 dB an 75 Ohm
TV-Scart:
Ausgang:FBAS, RGB, üBer OSD wäHlbar
Ethernet:
1000/100/10 MBit kompatibles Interface
USB:
USB 2.0 Anschluss (3X)
LNB Stromversorgung DVB-S2 Tuner:
LNB Strom 400mA max., kurzschlussfest
LNB Spannung horizontal "ohne Last 19, 5V"17, 6V bei 400mA
LNB Spannung vertikal "ohne Last 14, 5V " 11, 8V bei 400mA
LNB wird im Standby-Modus abgeschaltet
Steuerung der Satellitenpositionen:
DiSEqC 1.0/1.1/1.2 und USALS - Rotor Steuerung
Leistungsaufnahme:
< 15W (im Betrieb, mit LNB)
< 13W (im Betrieb, ohne LNB)
< 0, 5W (Deep-Standby-Mode)
Eingangsspannung:
230V / 50 Hz Wechselspannung +/- 15%
110V / 60 Hz Wechselspannung +/- 15%
Allgemeines:
Umgebungstemperatur +15°C...+35°C
Luftfeuchtigkeit < 80%
Abmessungen (B X T X H):380 mm X 290 mm X 60 mm
Gewicht:3.0 kg without HDD
