Vu Uno HD, Vu Uno Pluggable Tuner

Name: Vu Uno HD, Vu Uno Pluggable Tuner
Brand: china-manufacturer-directory.com
SKU: 727148755
Availability: InStock
Rating: 4.6 (74 reviews)

Supplier:	Shenzhen Sincere Technology Co., Ltd.
Price:	US $ 219.9-226.9/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	VU UNO HD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	CATV（Cable Television）Equipment

Product Description

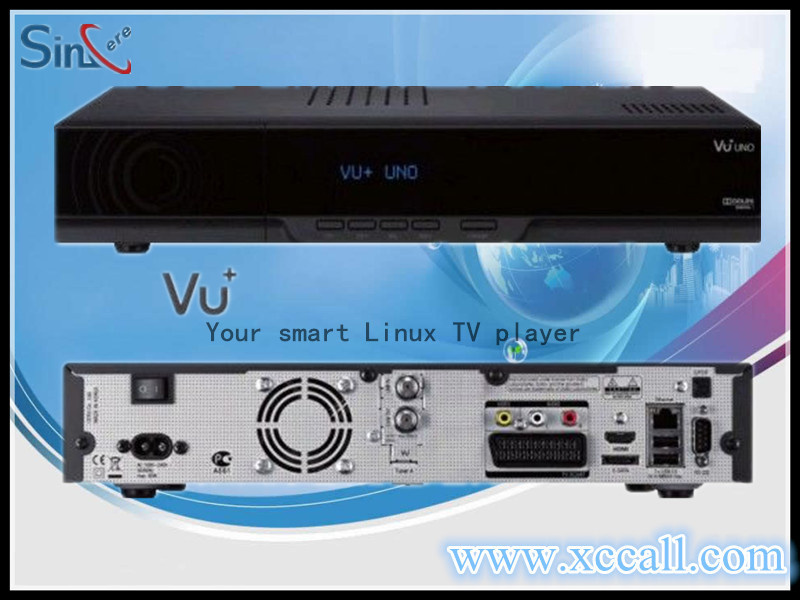

Vu+ UNO is a state-of-the art HD PVR with one tuner.

UNO is, to simply put, designed to reflect all the precious lessons from customers of Vu+ worldwide. Although DUO and SOLO are regarded as having set the exemplary standard of DVB-S2 HD PVR and Zapper, there are regions where DVB-T and DVB-C are more preferred means of broadcast reception.
Thus, UNO is equipped with an advanced pluggable tuner system allowing users to insert either DVB-S2 tuner or DVB-C/T hybrid tuner. The DVB-C/T hybrid tuner of Vu+ can be selectively used for the reception of DVB-C or DVB-T broadcast.

UNO offers greater flexibility to consumers of Vu+ in any part of the world. Moreover, UNO comes with enhanced hardware features: Powerful 400MHz CPU supporting OpenGL 1.0, large memory size of 512MB, temperature sensor based automatic FAN speed control, extremely low deep standby power consumption of mere 0.5W, universal remote control, etc. The list goes on. UNO is indeed the future-proof and versatile single tuner HD PVR.

High Distinctions of Vu+ UNO

State-of-the art pluggable tuner system supporting DVB-S2 and DVB-C/T

Powerful 400MHz CPU supporting OpenGL 1.0

Enhanced memory size of 512MB ready for any kind of future applications.

Temperature sensor based automatic FAN speed control guaranteeing the stealth operation.

Extremely low deep standby power consumption of under 0.5W

Modeless universal remote control

Unfailing H/W and S/W.

Main Features

HD PVR with single tuner

Pluggable tuner system supporting DVB-S2 or DVB-C/T.

400MHz CPU supporting OpenGL 1.0

Linux Operating System

12 digit VFD display

2 x Smartcard-Reader

2 x Common Interface

3 x USB2.0

10/100Mbit Ethernet Interface

Advance EPG (electronic program guide)

Full automatic service scan

Multimedia plug-in support

Various OSD skin supported

Low deep standby power consumption under 0.5 W

Modeless universal remote control

Unfailing H/W and S/W

Vu+ Technical Specifications
Front Panel	Display	12-digit Dot Matrix VFD display with status icons displaying channel names and program information
	Smart card slot	2
	Common Interface	2
	USB 2.0	1
	Key	Ch+/-, Vol+/-, Standby
Rear Panel	Power switch	1
	Sat-IF input/output	2 x F-type socket
	Connection TV	1 x Scart socket
	Video output (analogue)	1 x Cinch-socket
	Video/audio output (digital)	1 x HDMI
	Audio output (analogue)	2 x Cinch socket
	Audio output (digital)	Standard optical (SPDIF)
	USB 2.0	2
	eSATA	1
	Ethernet	1
	RS 232	1
Power	Mains voltage	AC100-240V / 50-60Hz
Power	Power consumption (Max./typ. operation/stand-by)	42/17/0.5W
RF	RF range	950-2,150 MHz
RF	Modulation, FEC, de-multiplexer	DVB-S/DVB-S2 standard
Video	Video resolution	CCIR 601 (720 x 576 lines), 576p, 720p, 1080i
	Video decoding	MPEG-2, MPEG-4 compatible
	Input data rate	2-45 MSymb/s
	S/N	> 53 dB
Decoding	Decoding	Dolby Digital, MPEG-4 (AAC-HE), MPEG-1, Layer 1, 2 and 3
	Sampling rate	32/4.1/48 kHz
	S/N	> 65 dB
LNB	LNB supply (horiz./vert.)	14/18V / Max.400mA
LNB	Control signal	22kHz ; ToneBurst ; DiSEqCTM1.0/1.1/1.2
General	Dimensions (W x H x D)	340 x 272 x 60 mm
General	Weight (without HDD)	2.35kg (Without HDD)
