Easy Install P3 Indoor LED Display with High Accuracy

Name: Easy Install P3 Indoor LED Display with High Accuracy
Brand: China-Manufacturer-Directory.com
SKU: 775493315
Availability: InStock
Rating: 4.4 (73 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 2200-2300/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	P3 Indoor LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Module Size:	192mm*96mm
Package Mode:	SMD 2121
Cabinet Size:	576mm*576mm
Pixel Configuration:	1r1g1b
Lifespan:	100000hours
MOQ:	1 Square Meter
Payment:	T/T ,Western Union
Certificate:	CE / ISO / RoHS /FC /CCC
Delivery Time:	7-10 Working Days
Warranty:	2 Years
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Supermarket / Concert
Certification:	FCC,ISO9001,EMC ,IP65
Pixel Density:	111111dots/M2
System Operating Platform:	Win98/2000/Nt/XP
IP Rating:	IP65

Product Description

P3 led display led video wall led module led billboard with CE RoHS certificates ,2 years warranty

Easy Install P3 Indoor LED Display With High Accuracy

Easy Install P3 Indoor LED Display With High Accuracy
Unit Module	Item	parameter
	Model	ALS - P3 - 16S
	Module size	192mm*96mm
	Pixel Pitch	3mm
	Pixel Density	111111dots/m2
	Pixel Configuration	1R1G1B
	Package mode	SMD2121
	Module Resolution	64dots(W)*32dots(H)
	Max power consumption	18w
	Module Thickness	14.75mm(without magnet) 26.63mm (with magnet )
	Module Weight	0.16kg
	Driving Method	Constant Current Driving
	Scan Method	1/16scan
	Interface Way	HUB75-A
	Brightness	≥1500cd/m2
Unit Module	dimension	576mmx576mm
	Quantity of Module	18
	Thermal discharge	fan 2pcs
	Power supply Mode	5V/40A* 3pcs
	Pixel per cabinet	192mm*192mm
	Thickness	85mm
	Optimal Viewing Distance	3M-20M
	Optimal Viewing angle	160°(W)120°(H)
	Enviroment Temperature	Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power	Relative Humidity	10%-95%
	Operating Voltage	AC220V±10%
	Average power consumption	180W/H
	Max power Consumption	≤360W/m2
	Current	≤20mA (Single LED )
Control system	CPU	Pentium4 or above P4 or above
	Operate system	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Device	IC Constant current driving
	Refresh Rate	≥400HZ
	Gray/Color	RGB each 256 grade, can display 16.7M clolor
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800600/1024768

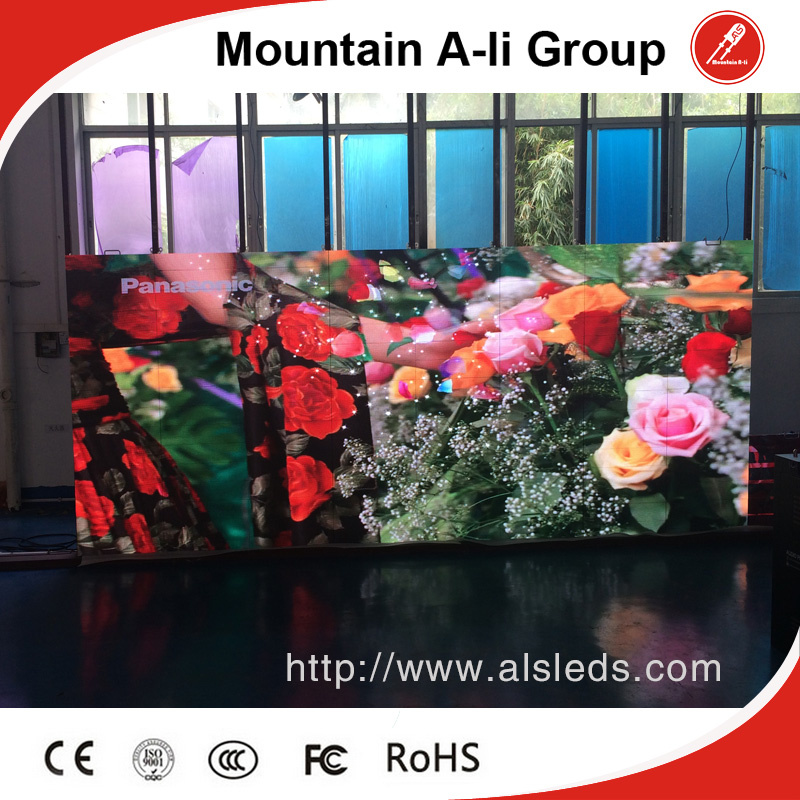

Easy Install indoor P3 Rental LED Screen HD

Workshop :

certificates :

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
