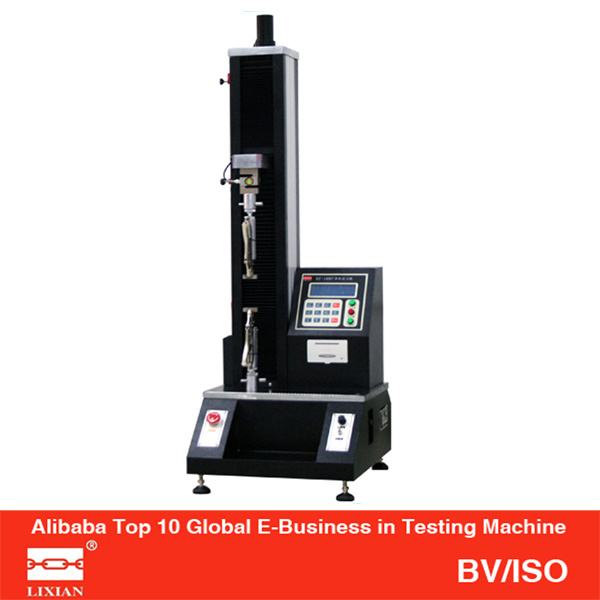

Electric Desktop Digital Single Pole Tensile Measuring Instruments (Hz-1007A)

Product Specifications

Prod Model:	HZ-1007A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tester Resolution:	Max Load: 1/200000, Constant The Resolution
Testing Speed:	From 0.001 to 500mm/Min
Safety:	Electronic-Limit Protection
Testing Platform Moving Device:	Fast /Slow( Two Speeds to Control ), Can Jog
Overload Protection:	Overload 10%, Automatic Protection
Fixture:	a Set of Tensile Clamp
Machine Dimension:	450*550*1400 Mm (L*W*H)
Motor:	Zhongyuan AC Servo Motor and Drive
Power:	220V, 50Hz, 0.4kw
Machine Weight:	About 160kg
Type:	Universal Testing Machine
Weight:	100-500Kg
Power Source:	AC220V
Maxcapacity:	Max Load:500n, 1kn, 2kn, Option

Product Description

Electronic testing machine Main functions:

Ectronic testing machinecan be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials,

Main feature

1. Excellent design. My company has focused on product appearance over the years, company has developed many products that is similar with the foreign products, the surface of product is made of aluminum and process by electrostatic spray

2. Digital force displayed by LCD, discernible tension or pressure, LCD display clearly

3. Three kinds of units: N-Kgf-Lbf option or automatically exchange;

4. LCD with backlight can be used in low-light environments

5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.

6. The system would shut down if overload or over-trip

7. Structure of single-column is beautiful and sophisticated, seating operation, relaxation and nature.

Corresponding standard:

GB/T16491-1996 electronic universal testing machine

Applicable industry:

It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; Research laboratories; Inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested

Technical parameters:

Model: Hz-1007A

Maximum Load: 1KN high-precision sensors from U. S. A.

Capacity choice: 200N, 500N, 1KN or less than can be self-selected

Units: Kg, lb, N

Measured System: Load cell + Hz-2000

Accuracy of load measurement: The load cell + Hz-2000 screen ± 0.5% (full range of 5% -100%)

Resolution: 1 / 50000

Maximum test space (excluding fixtures): About 600mm (excluding gripper, special testing space can be customized according to customer needs)

Test speed: 50-300mm / min with stepless speed and 5 fixed-speed (special testing speed can also be customized according to customer needs)

Data sampling frequency: 200times/sec

Machine with thermal printers can automatically output the testing results.

Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break.

Display: Hz-2000 dark blue LCD display, membrane touch keys, with the following functions.

Single test, 10-point statistics manually and automatically calculate its average and break values;

Multi-unit automatically exchange such as kgf, Lbf, N;

Function of free to take point;

With multi-calibration function;

Auto printing function;

Using 24-bit AD acquisition, resolution 1 / 200000;

Decimal digits 0 to 4 arbitrary choice;

Starting up using password protection feature, which can effectively prevent the non-operators to use

Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine

Overload protection function can be set, effectively preventing machine from overload;

Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position.

Safety: The system would shut down if overload or over-trip.

Shape, column shell is made of aluminum material.

Power Systems: AC Motor

Power: 120W

Volume: 450 × 550 × 1400mm

Weight: 75kg

Power: 220V, 15A

model	HZ-1007A new packaging compression tensile testing machine
Maximum load	50N,100N,200N, 500N, 1KN,2KN(optional )
Accurate grade	1grade / 0.5 grade
Effective measuring range	Force from 0.2% to 100% / from 0.4% to 100%
Measuring accuracy	the value ±1% /  the value ±0.5%
Tester resolution	Max load: 1/200000, constant the resolution
Load sensor	Basic configuration sensor max load: one
Effective tensile stroke	400, 500mm (can be increased the tensile space according to customers requirement )
Testing speed	From 0.001 to 500mm/min
Accruacy of displacement measurement	Tolerance:±0.5% / tolerance: ±0.2%
Safety	Electronic-limit protection
Testing platform moving  device	Fast /slow( two speeds to control ),can jog
Return Back	Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation
Overload protection	Overload 10%, automatic protection
fixture	A set of tensile clamp
Machine dimension	450*550*1400 mm (L*W*H)
Motor	Zhongyuan  AC  servo motor and drive
Power supply	220V , 50HZ or according to the requirement
Power	0.4KW ( depending on different demand of force,using different motor)
weight	About 160Kg
