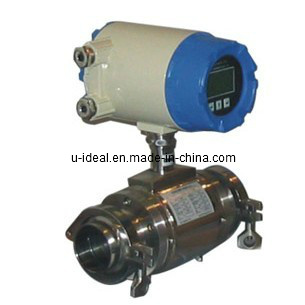

Electro Sanitary Magnetic Flow Meter-Health Magnetic Flow Meter
Product Specifications
| Prod Model: |
Lzb-4, 6, 10 F4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| LCD: |
Yes/No |
| Pressure: |
Suitable for Very High Pressure |
| Signal: |
4-20mA, Pulse, RS485, Hart |
| Indicate: |
Flow Rate, Total Flow |
| Main Application: |
Corrosive Liquid/Gas |
| Accuracy: |
±0.2-0.5% |
| Size: |
Dn10~Dn3000 |
| Sensor: |
Tube/Flange |
| Type: |
Variable Area Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Electrical Principles |
Product Description
Magnetic flow meter
Conductive liquid, slurry
0.25, 0.6, 1.0, 1.6, 4.0MPa, (or specified by customer)
Flange Material 304/316
Electro Sanitary Magnetic Flow Meter
Feature:
1. The measurement can not be influenced by the change of fluid density, viscosity, temperature, pressure and conductivity;
2. The inside of measuring tube do not have the parts to block the flow move, no pressure loss, low demand in straight pipe;
3. Totally deal with digital quantity, high anti-interference, reliable measurement, high precision, flow range reach to 1500: 1;
4. Converter adopts to 16-bit embedded microprocessor and surface mounting technology, convenient preferences, totally Chinese menu operation, easily use, with self-check and diagnosis functions;
5. With the function of measuring two way flow, can show the positive and reverse flow, also have two way current and rate output,
Size(mm) |
DN15mm---DN3200mm |
Medium |
Conductive liquid, slurry |
Medium Temperature |
≤120 |
Conductivity |
≥5μS/cm |
Accuracy |
0.3%, 0.5% |
Operating Pressure |
0.25, 0.6, 1.0, 1.6, 4.0MPa, (or specified by customer) |
Display |
Displaying Flow, totalizer and the velocity of flow with back light |
Signal Output |
Analog 4-20mA, isolated, Loading resistant ≤750ΩPulse frequency 0-1KHz Photoelectricity isolated OCT,
External power <35VDC, 250mA/max |
Operating Power |
Single Alternating Current 85-265VAC, 45-63Hz, Power <20W, 24VDC, 10VA |
Converter Type |
Integrated,Remote, Inserted /Flange, Clamp |
Protection Grade |
IP 65 / IP67 / IP 68 |
Explosion-Proof Grade |
ExdBT4/ExibCT4 |
Velocity |
0.3-12m/s ( 0.1-15m/s as required) |
Lining |
Chloroprene Gum (DN25-DN3400)Polyurethane (DN25-DN500)F4 (DN25-DN1200)F46 (PFA) (DN25-DN200)F40 (DN25-DN2800)PO (DN50-DN2800)PPS (DN50-DN2800) |
|
Flowing direction |
Forward, Reverse |
Repeatability |
±0.1%,±0.15,±0.25% |
Electrode material |
316L, Pt, Ta, Ti, HB, HC |
Electrode type |
Standard, blade, removable |
Electrode number |
2-6 pcs |
Flange Material |
316 / 304 |
Alarm (N.O.) |
empty, excitation, high-low flow rate limit |
Ambient |
Temperature: -25 - +60, Humidity: 5-90% |
Communication |
RS-485/ Hart/ profibus |
Tianjin U-ideal Instrument Co., Ltd is a professional supplier of level instruments, flow meters, gates valves, pressure control valves, pneumatic and electric control ball valves, check valves, globe valve, pressure reducing and sustaining valve and steam traps and strainers from year 2006, are one of the repute' S manufactures in China, We have been cooperated with many famous companies all over the world, and quantities are satisfy all of our customers. Our products have passed the CE, GS, ISO9001 approvals.
Fluid water level switch(float switch, radar level switch, ultrasonic level switch, vertical level switch, horizontal level switch, flange level switch, thread level switch), tank gauges (Magnetic level gauges, glass tubular level gauges, sight glass level indicator, transparent level meter and reflective level gauge, weld glass water meter, oil level meter, fuel level control and indicator), drop-in type level sensor(cable level sensor, pole level switch, hydrostatic pressure level sensor and level transmitter, capacitive level sensor, ultrasonic level transmitter, non-contact level meter and float level transmitter) tank flange level indicators, radar RF level meter and so on.
Flow meters: Metal rotary flow meters(float flowmeter, rotameter, gas rotameter, bypass rotameter), vortex flow meters (steam vortex flowmeter) flow sensor, flow switches and liquid and gas turbine flow meters, conductive fluid electromagnetic flow meters, PD flow meter such as oval gear wheel flow meters, roots flow meters) precession vortex gas flow meters, flow sensor and other flowmeasurement instruments.
Ultrasonic Level, Ultrasonic Level Measurement, Level Measurement, Level Sensors, Ultrasonic Level Sensors, Ultrasonic Flow Meter, Ultrasonic Level Probe, Ultrasonic Meter, Ultrasonic Distance Meter, Ultrasonic Meters, Ultrasonic Level Detection, Ultrasonic SensÖ R, Ultrasonic Sensors, Ultrasonic Level Sensor, Level Sensor Ultrasonic, Ultrasonic Measuring, Ultrasonic Testing, Sensor Ultrasonic, Ultrasonic Measurement. Water Level Sensor Switch, Water Level Sensor, Water Level Sensor Circuit, Level Sensor Water, Liquid Level Sensor, Magnetic Level Switch, Magnetic Switch, Oil Level Sensor, Magnetic Float Switch, pressure transmitter, differential pressure transmitter.
Safety valve, pressure control valve, safety relief valve, pressure relief valve, pressure transmitters, pressure gauge, temperature gauge
Welcome to contact us, we will reply you in 24hours.
