Yueqing Winston Electric Co., Ltd. >> Electronic Multi-Functional Solid Statetime Delay Relay with CE

Electronic Multi-Functional Solid Statetime Delay Relay with CE

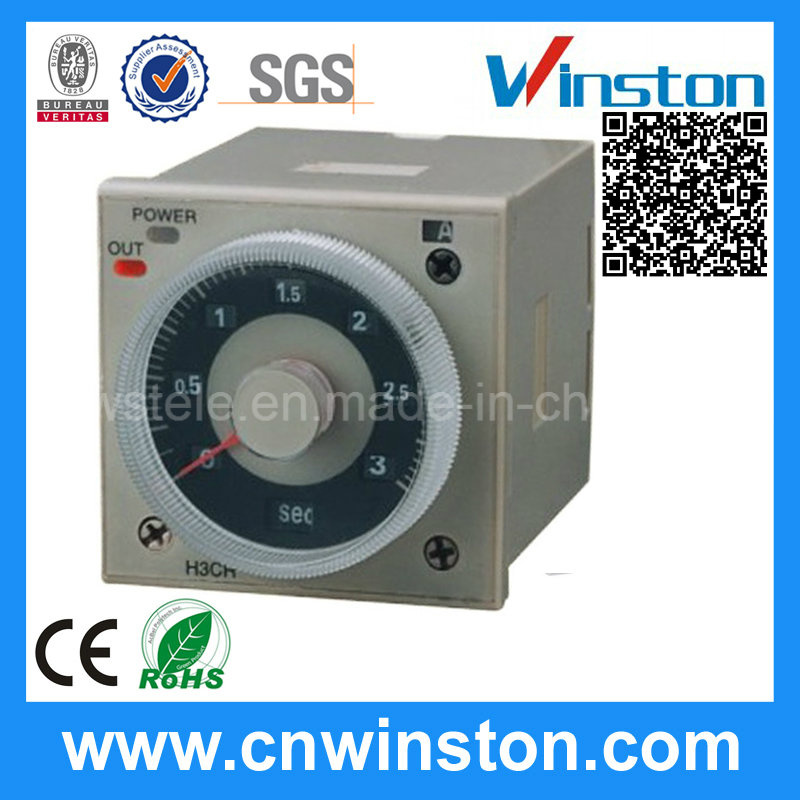

Name: Electronic Multi-Functional Solid Statetime Delay Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771175155
Availability: InStock
Rating: 4.5 (97 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 9.3-13.3/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	H3CR
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand:	Winston
Color:	Gery
Quality:	2 Year Warranty
Dimensions(mm):	48h 48W 81.6D
Weight:	100g
OEM/ODM:	Yes
Condition:	Original New
Ambient Huminity:	35~85%Rh
Reset Time:	0.5 Sec Max
Ambient Temperature:	-10~+55 Degree

Product Description

Product Description

1.Used to control time sequence
2.With front / back connecting socket
3.LED display

Technique parameter

CLASSIFICATION		MULTIRANGE TIMER
MODEL		H3BA-(ST4P-)			H3CR-	H3CR-A8
DIMENSIONS		48H48W93.5D			48H48W81.6D	48H48W81.6D
MOUNTING &SOCKET	SURFACE(-N)	PF113A(E)	P2CF08 PS-08		PS-08	PF113A(E)
	FLUSH(-Y)	US-11	US-08 P3G-08		US-08 P3G-08	US-11
FULL TIMING RANGE		0.5SEC~100HRS			0.5SEC~300HRS	0.5SEC~300HRS
RATED VOLTAGE		24 TO 240V DC/AC DC(V):12, 24, 48 AC(V):24, 50, 110, 220			100 TO 240V AC/100 TO 125VDC 24 TO 48VAC/12TO 48VDC AC(V) 110V,220V DC(V)12V, 24V
INDICATOR OPERATING		Time operating flicker			Time Operating flicker	Time Operating flicker
O/P CONTACT	MODEL	H3BA	H3BA-8	H3BA-8H	H3CR-A	H3CR-A8
	TIME LIMIT 1C			5A
	TIME LIMIT 2C	5A	5A		5A(AC250)	5A(AC250)
	INSTANTANEOUS 1C			5A
LIFE	MECHANICAL	5*107 times			107 times	107 times
	ELECTRICAL	105 times			105 times	105 times
ACCURACY	REPEAT ERROR	±1% max			±1% max	±1% max
	SETTING ERROR	±5% max			±5% max	±5% max
	VOLTAGE ERROR	±1% max			±1% max	±1% max
	TEMP. ERROR	±2% max			±2% max	±2% max
REST TIME		0.5 sec max			0.5 sec max	0.5 sec max
CONSUMED POWER		100~240VAC:1VA 12VDC, 24~240VDC:1.5W
AMBIENT TEMPERATURE		-10°c~+55°c			-10°c~+55°c	-10°c~+55°c
AMBIENT HUMIDITY		35-85%RH			35-85%RH	35-85%RH
WEIGHT		100g			100g	100g
CONNECTION DIAGRAMS& TIMING CHART		38F	38H	37G	38F	38E/J
