Product Specifications

Prod Model: GF312D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Accuracy: 0.05%
Weight: 1.7kg
Application: Electromagnetic Instrument
Power: Electricity

Product Description

Product Description

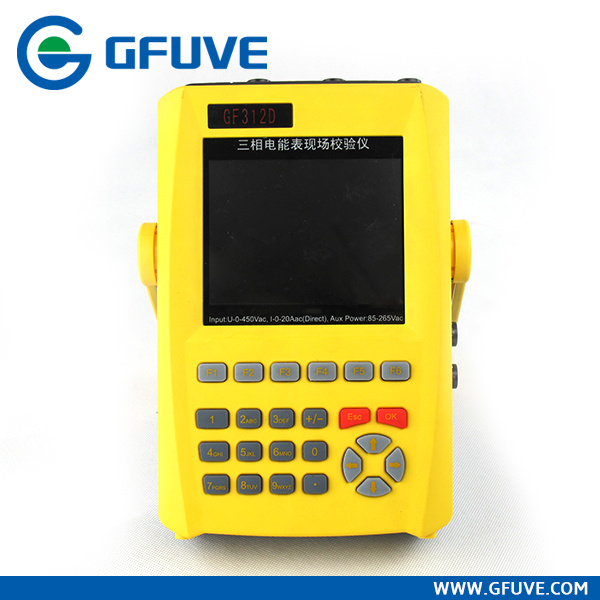

The instrument is a precision AC energy meter testing instrument, mainly used to test three phase energy meter error on site and measure various of AC parameters.

Features and Functions

W Three phase active or reactive electricity energy meter;
W Calibrate three phase, single phase, active or reactive meter error;
W Measure U(voltage) of three phase or single phase;
W Measure I(current) of three phase or single phase;
W Measure active power of three phase or single phase;
W Measure reactive power of three phase or single phase;
W Measure apparent power of three phase or single phase;
W Measure power factor of three phase or single phase;
W Measure phase angle between voltage and current;
W Measure frequency of power line;
W Display vector diagram;
W Display waveform of U and I;
W Analyze and display content of harmonic of U and I;
W Store and display measured data;
W Optional 5A, 20A, 100A, 500A, 1000A, 2000A, 3000A current clamp;
W Measure CT variable ratio;
W Measure the ratio or lag-angle of low-voltage transformer.
W Adopt 32 bit ARM processor, multi-channel 16 bit precision A/D convertor, high resolution TFT color LCD;
W Inner equipped with 0.01% wide-range current transformer and can be equipped with various type current clamps, wide range of measurement and high veracity.
W Low consumption circuit design, high energy Li batter supply, intellectual power management software, which make the instrument can continuously work up to 10 hours.
Test Voltage
Range 5V – 480V
Error ± 0.05% (30V – 480V)
± 0.1% (5V – 30V)
Harmonic 2 nd -- 63 st
Test Current
Range (direct connection) 5mA – 20A
Error (direct connection) ± 0.05% (100mA – 20A)
± 0.1% (10mA – 100mA)
Range (Clamp CT) 10mA – 3000A
Error (Clamp CT) ± 0.2% (100mA – 3000A)
± 0.5% (10mA – 100mA)
Harmonic 2 nd -- 63 st
Power measure error
Active power (direct connection) ± 0.05% (0.1A – 20A)
± 0.1% (0.01A – 0.1A)
Reactive power (direct connection) ± 0.1% (0.1A – 20A)
Energy measure error
Active energy (direct connection) ± 0.05% (0.1A – 20A)
± 0.1% (0.01A – 0.1A)
Reactive energy (direct connection) ± 0.1% (0.1A – 20A)
Phase angle
Range 0º – 360º
Error ± 0.05º
Frequency
Range 45Hz – 65Hz
Pulse output
Energy constant 180000imp/kWh\1800imp/kWh\18imp/kWh
Pulse ratio 1: 1
Output level 5V
Pulse input
Input channel 1
Input level 5 – 24V
Input frequency Max. 2MHz
Display
Resolution 6" TFT (640× 480)
Function
Vector diagram Yes
Waveform Yes
Energy accumulation Yes
Communication port RS232
Communication with PC Yes
Other
Voltage Supply way External power
Voltage Supply 1 220V ± 10%, 50/60Hz ± 2Hz
Voltage Supply 2 Li-polymer battery, size: 110X51X16mm
Nominal output voltage: 7.2V, Capacity: 5000mAh.
Ambient temperature -10 -- 55degrees
Relative humidity 15% -- 85%
Instrument Dimensions (W × H × D) (mm) 245× 162× 60
Carry Case Dimensions (W × H × D) (mm) 450× 320× 185
Weight (kg) 1.7kg
